Help CenterCbb65 Capacitor Run Capacitor
US$ 0.4 - 1.5
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
PartsNet
Model Number:
cbb65
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Round Aluminum Run CapacitorUS$ 0.5 - 2.5MOQ: 500 Pieces -
Aluminum Run Capacitor / Air Conditioner Run Capacitor / AC Motor Run CapacitorUS$ 0.1 - 3MOQ: 1000 Pieces
-
Capacitor for Washing MachineUS$ 0.5 - 1MOQ: 1000 Pieces
-
Washing Machine CapacitorUS$ 1 - 2MOQ: 1000 Pieces
-
Capacitor CBB60US$ 0.4 - 1MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
PartsNet
Model Number
cbb65
Type
Aluminum Electrolytic Capacitor
Application
Other, Refrigerator
Package Type
Surface Mount
Capacitance
1uf-100uf
Rated Voltage
250/370/450V
Operating Temperature
-55 C ~ 125 C
Product Description

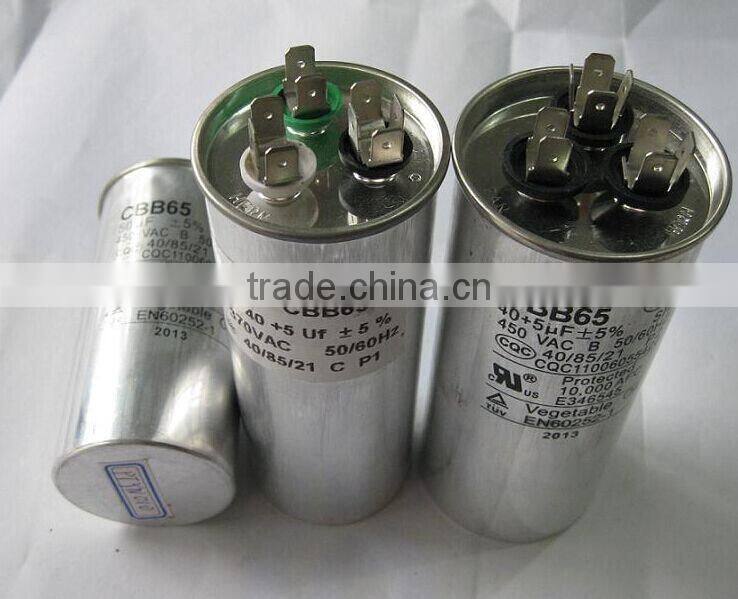

Aluminum capacitor CBB65
Aluminum capacitor power bank for air conditioners of motor running capacitor
Cbb65 capacitor,Run capacitor
Rated Voltage 10~500V
Operating Temperature: -40~+85°c
Nominal capacitance: 47~33000uF
The capacitor use thickened Metalized Polypropylene film as dielectric, coiled by high speed winding machine, and encapsulated with Aluminum body, it is treated by using refined castor oil as impregnate in the high temperature and vacuum enverionment to make the capacitor more stable with long working life.
| Model | Microfarad | Frequency | Temperature | Voltage | Size(Dia.xheight) |
| NPTC-RARC402 | 2uf | 50/60HZ | -25°C-70°C | 370V | 40x60mm |
| NPTC-RARC403 | 3uf | 50/60HZ | -25°C-70°C | 370V | 40x60mm |
| NPTC-RARC404 | 4uf | 50/60HZ | -25°C-70°C | 370V | 40x60mm |
| NPTC-RARC405 | 5uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC406 | 6uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC407 | 7uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC408 | 7.5uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC409 | 8uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC410 | 9uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC411 | 10uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC412 | 11uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC413 | 12uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC414 | 14uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC415 | 15uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC416 | 16uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC417 | 17.5uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC418 | 18uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC419 | 20uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC420 | 25uf | 50/60HZ | -25°C-70°C | 370V | 45 x 90mm |
| NPTC-RARC421 | 30uf | 50/60HZ | -25°C-70°C | 370V | 45 x 90mm |
| NPTC-RARC422 | 33uf | 50/60HZ | -25°C-70°C | 370V | 45 x 90mm |
| NPTC-RARC423 | 35uf | 50/60HZ | -25°C-70°C | 370V | 45 x 90mm |
| NPTC-RARC424 | 40uf | 50/60HZ | -25°C-70°C | 370V | 50 x 100mm |
| NPTC-RARC425 | 45uf | 50/60HZ | -25°C-70°C | 370V | 50 x 100mm |
| NPTC-RARC426 | 50uf | 50/60HZ | -25°C-70°C | 370V | 50 x 110mm |
| NPTC-RARC427 | 55uf | 50/60HZ | -25°C-70°C | 370V | 50 x 125mm |
| NPTC-RARC428 | 60uf | 50/60HZ | -25°C-70°C | 370V | 50 x 125mm |
| NPTC-RARC429 | 70uf | 50/60HZ | -25°C-70°C | 370V | 50 x 125mm |
| NPTC-RARC430 | 80uf | 50/60HZ | -25°C-70°C | 370V | 60 x 120mm |
| NPTC-RARC431 | 90uf | 50/60HZ | -25°C-70°C | 370V | 64 x 130mm |
| NPTC-RARC432 | 100uf | 50/60HZ | -25°C-70°C | 370V | 64 x130mm |
