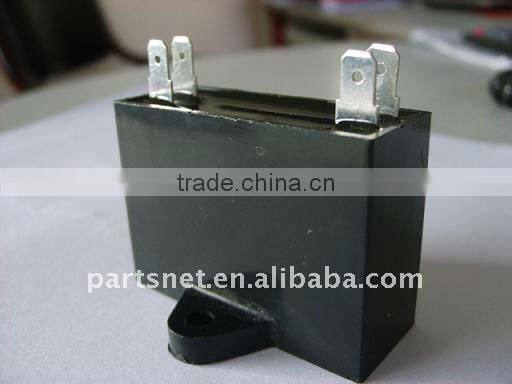

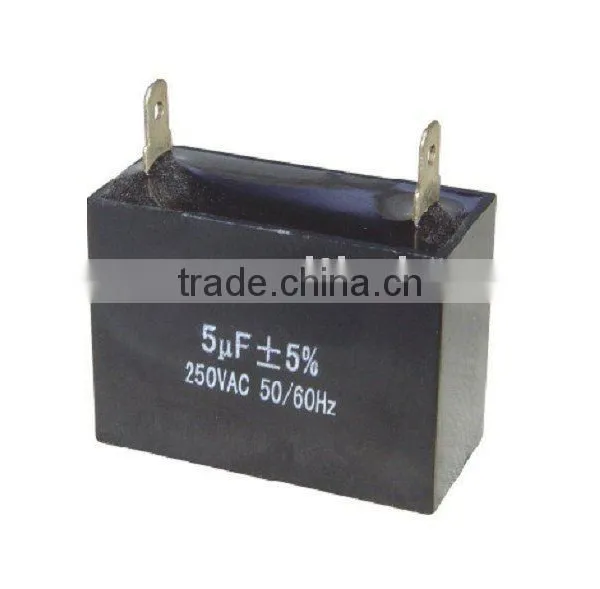

Help CenterDIP Fan Capacitor
Related Products
Specifications
DIP Fun CapacitorTerminals: wire, cable,lug,pin
Quick Detail:
Brand Name:NPTC
Function:for refrigerator
Place of origin:Zhejiang China(mainland)
Packaging & Delivery:
Packaging Detail:standard export packaging,Its also Depending on Clients Requests.
Delivery Detail:20-30days after receiving the deposit
Specification:
1.Shell: PP.ABS
2.Terminals: wire, cable, lug, pin
3.Rated Capacitance:250VAC: 1-25uF
4.350VAC: 1-25uF
450VAC: 1-25uF
5.Rated Voltage: 125VAC-500VAC
6.Capacitance Tolerance: 40/70/21; 25/85/2
7.Test Voltage: T-T: 2.0Un,2S non-breakdown
T-C: 2000VAC, 10S non-breakdown
8.Insulation Resistance: T-T: Rjc≥3000MΩ:uf
T-C: Rj≥1000MΩ
9.Loss Tangent Tanδ≤0.003(20°C 50/60Hz)
10.Safety Class: P0, P1, P2
| Microfarad(uf) | Voltage/Size | |
| 220-250V | 450V | |
| 1uf | 31 x 14 x 24mm | |
| 1.2uf | 31 x 14 x 24mm | |
| 1.5uf | 31 x 14 x 24mm | |
| 2uf | 31 x 14 x 24mm | |
| 3uf | 31 x 14 x 24mm | |
| 4uf | 31 x 14 x 24mm | |
| 5uf | 31 x 14 x 24mm | |
| 6uf | 31 x 14 x 24mm | |
| 7uf | 31 x 14 x 24mm | |
| 7.5uf | 31 x 14 x 24mm | |
| 8uf | 31 x 17 x 27mm | |
| 9uf | 31 x 17 x 27mm | |
| 10uf | 31 x 17 x 27mm | |
| 11uf | 31 x 17 x 27mm | |
| 12uf | 31 x 17 x 27mm | |
| 14uf | 31 x 17 x 27mm | |
We have different types.Such as:
