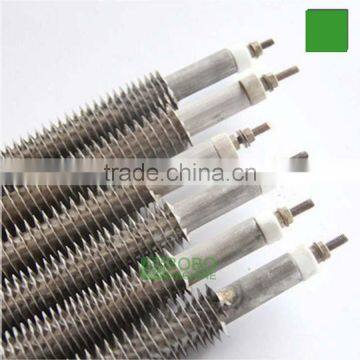

Customized Tubular Heating Element Air Finned Heater

Customized Tubular Heating Element Air Finned Heater thumbnail-1
Customized Tubular Heating Element Air Finned Heater thumbnail-2
Customized Tubular Heating Element Air Finned Heater thumbnail-3
Customized Tubular Heating Element Air Finned Heater thumbnail-4
Customized Tubular Heating Element Air Finned Heater thumbnail-5
Customized Tubular Heating Element Air Finned Heater photo-1

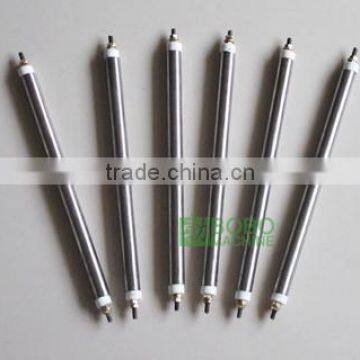

Customized Tubular Heating Element Air Finned Heater photo-2

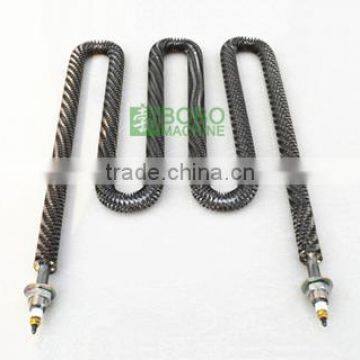

Customized Tubular Heating Element Air Finned Heater photo-3

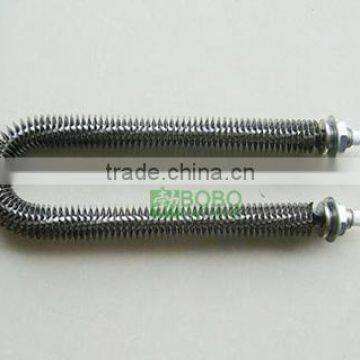

Customized Tubular Heating Element Air Finned Heater photo-4

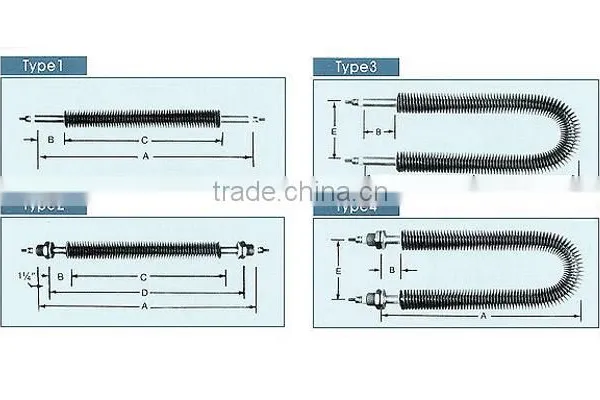

Customized Tubular Heating Element Air Finned Heater photo-5
US$ 3 - 15 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Condition:
New
Type:
Air Heater
Power Source:
Electric
Contact Supplier Request Quote Chat Now
Bobo Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Customized Tubular Heating Element Air Finned heater shipped from Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Air Heater
Power Source Electric
Place of Origin Jiangsu, China
Brand Name BOBO
Model Number Custom Size
Dimension(L*W*H) Custom Size
Weight Final Dimension
Voltage 110V-480V,can also be customized
Power(W) 200W - 8000W
Certification CE ROHS
Warranty 1 Year, 4000 Working Hours
After-sales Service Provided Overseas third-party support available
Product Description

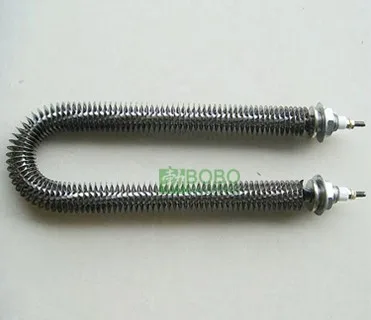

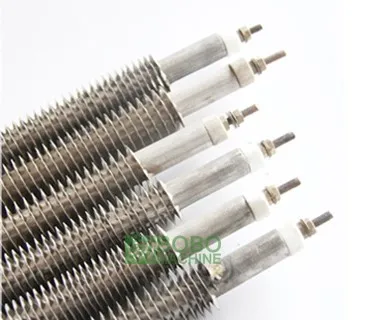

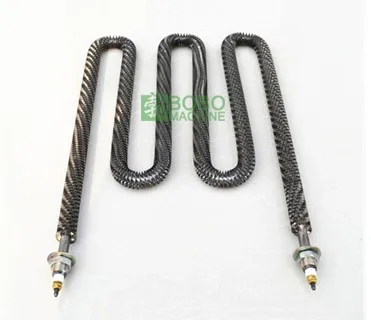

Name: Customized Tubular Heating Element Air Finned heater

Suggested Applications


               •Liquid Immersion
               •Plastic Molds
               •Dies
               •Labeling
               •Medical Equipment
               •Platens
               •Packaging Equipment
               •Hot Stamping
               •Sealing
               •Injection Molding


A number of indicators over Chinese standards

We can produce all kinds of air finned heating elements .

Welcome to have samples for initial evaluation

Characteristics & Properties  : (Customized Tubular Heating Element Air Finned heater)

                   •Tube diameter: Φ4.5mm-Φ30mm
                   •Tube Material: SS304, SS316, SS321 and NICOLOY800 etc
                   •Insulation Material: High-purity MgO
                   •Conductor Material: Ni-Cr or Fe-Cr-Al Resistance Heating Wire
                   •Wattage density: high/middle/low (5-25w/cm2)
                   •Lead Connection Option: Crimped or Swaged leads
                   •Lead wire type: 10" Standard (Teflon/silicone high temperature fiberglass)

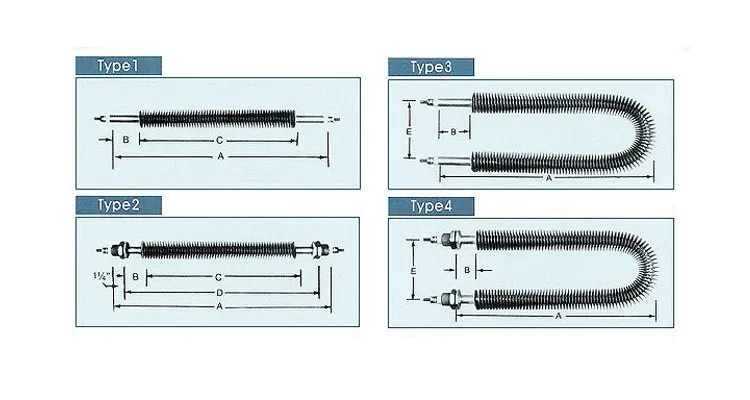

Parameter (Customized Tubular Heating Element Air Finned heater)

Heat intensity
Not exceeding 30w/cm2 (advisable)
Power
Depends on the dimension
Exhaust extreme (when cold)
<=0.1mA to 242 v.
Insulation (when cold)
5 Min Ohms 500 Watts minimum
Dielectric strength
1500v. 1/sec
Working temperature
750 Deg C max.
Length tolerance
+/-1.5%
Diameter tolerance
-0.02 to -0.06 mm
Cut off connection tolerance
+/-15 mm
Power tolerance (w)
+5 % - 10 %
Cold areas
Depends on length and diameter 5-25mm
Our Service

What can we do for you?

1. Sample is available.
2. Independent R&D, ISO manufacture, precise quality standards, modern logistics management, and sound marketing strategy.
3. Inquiry replied within 24 hours.
4. Patented products.
5. Some extra accessories can be supplied.
6.The larger quantity you order,the more competitive prices you'll get.
7. Necessary Certificates can be supplied.
