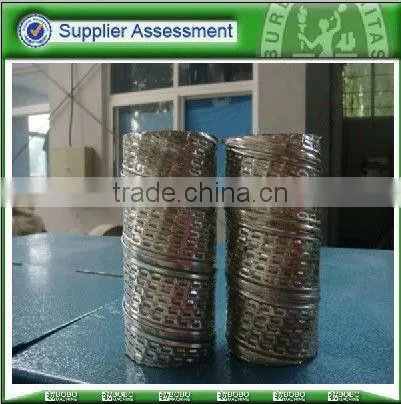

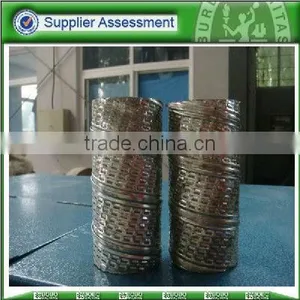

This spiral filter core making machine is specially for producing the inner core of automotive filters.
Sprial filter core making machine
This spiral filter core making machine is specially for producing the inner core of automotive filters. .
Main features
1. Very easy and quick to change the diameter of spiral tube.
2. Any length can be cut according to customer’s requirement.
3. By adjusting clutch, the machine can be suitable for different thick materials.
4. PLC control makes high efficient, stable quality, less procedures and materials and so reduces the production cost.
5. Fluid drive, large driving moment and stable run.
Main technical data
Production capacity |
1.2 ~1.6 m/min |
Diameter range of filter core |
38mm~150mm |
Length of core |
any, unlimited |
Thickness of raw material |
0.35~0.45mm |
Width of raw material |
50 mm,or 60mm |
Motor power |
3kw |
Electric power |
380V/50Hz (can be according to customer’s requirements) |
Weight |
800kg |
Dimension of main part |
1300mm x 1000mm x 1400mm |
Dimension of unloading rack |
1200mm x 800mm x 760mm |
