Spiral Filter Forming Machine

FOB Price

US$ 1 - 2 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	BOBO
Model Number	DJJY-150

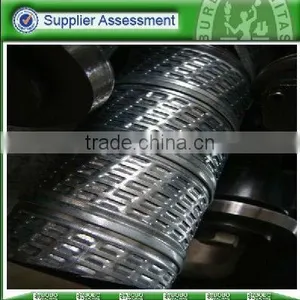

The spiral filter forming machine is specially for producing the cores of automotive filters.

This machine is specially for producing the cores of automotive filters.

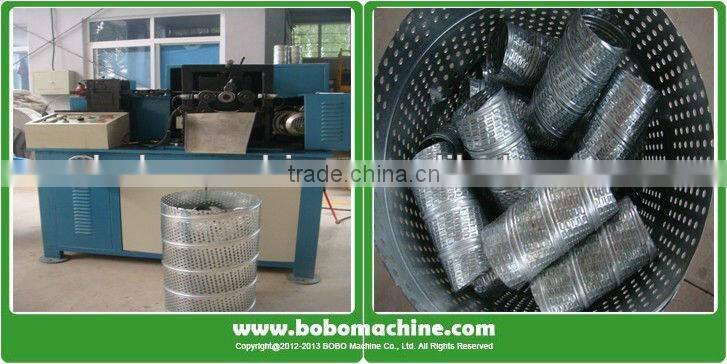

Spiral filter forming machine

The spiral filter forming machine is specially for producing the cores of automotive filters.

Main features

1- Very easy and quick to change the diameter of spiral tube.

2- Any length can be cut according to customer’s requirement.

3- By adjusting clutch, the machine can be suitable for different thick materials.

4- PLC control makes high efficient, stable quality, less procedures and materials and so reduces the production cost.

5- Fluid drive, large driving moment and stable run.

Technical data

Production capacity	1.2 ~1.6 m/min
Diameter range of filter core	38mm~150mm
Length of core	any, unlimited
Thickness of raw material	0.35~0.45mm
Width of raw material	50 mm,or 60mm
Motor power	3kw
Electric power	380V/50Hz (can be according to customer’s requirements)
Weight	800kg
Dimension of main part	1300mm x 1000mm x 1400mm
Dimension of unloading rack	1200mm x 800mm x 760mm
