Hydraulic steel wire rope swaging machine

Specifications

Hydraulic steel wire rope swaging machine
1- Perfect pressed shape
2- Light weight
3- High technology

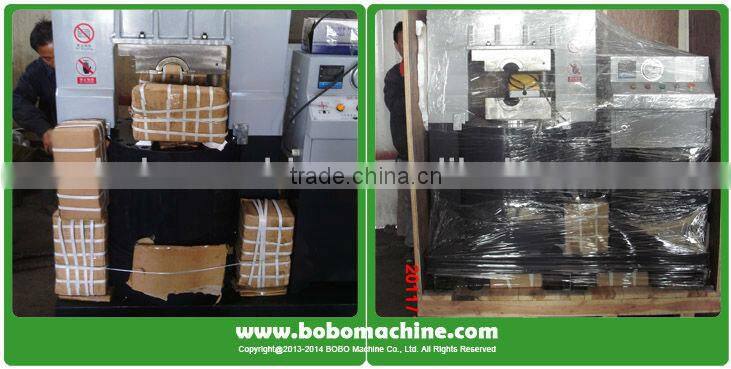

Hydraulic steel wire rope swaging machine

Hydraulic steel wire rope swaging machine  is used to press steel cable which has diameter up to 15mm.It is a small type of machine and is easy to operate. It is widely used in home and abroad.





Feature

• saving steel cable cost

• Customized moulds for different diameters

• ensure the exact length

•  Easy to operate



Main technical data



1	Model	GT-100
2	Max, capacity	1000KN
3	Max. wire rope diameter	13/15mm
4	Max. working pressure	28MPa
5	Max. piston stroke	78mm
6	Work speed	8mm/s up and 10mm/s down
7	Motor capacity	4kw
8	Dimension	1200x550x1150mm
9	Net Weight	900KG
