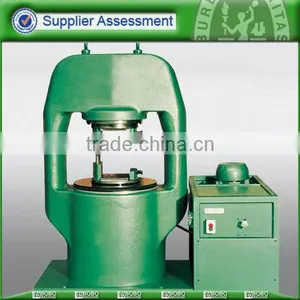

Hydraulic Wire Rope Ferrule Swaging Machine
US$ 5,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
BOBO
Model Number:
GT-series
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Steel Wire Rope Swaged MachineUS$ 5,000 - 15,000MOQ: 1 Set -
Hydraulic Steel Wire Rope Swage MachineUS$ 5,000 - 15,000MOQ: 1 Set
-
Hydraulic Wire Rope Ferrule Swaged MachineUS$ 5,000 - 15,000MOQ: 1 Set
-
Hydraulic 1000 Ton Wire Rope Press MachineUS$ 5,000 - 15,000MOQ: 1 Set
-
Hydraulic 800 Ton Wire Rope Press MachineUS$ 5,000 - 15,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
GT-series
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Hydraulic wire rope ferrule swaging machine1- Closed type structure
2- Easy to operate
3- Light weight

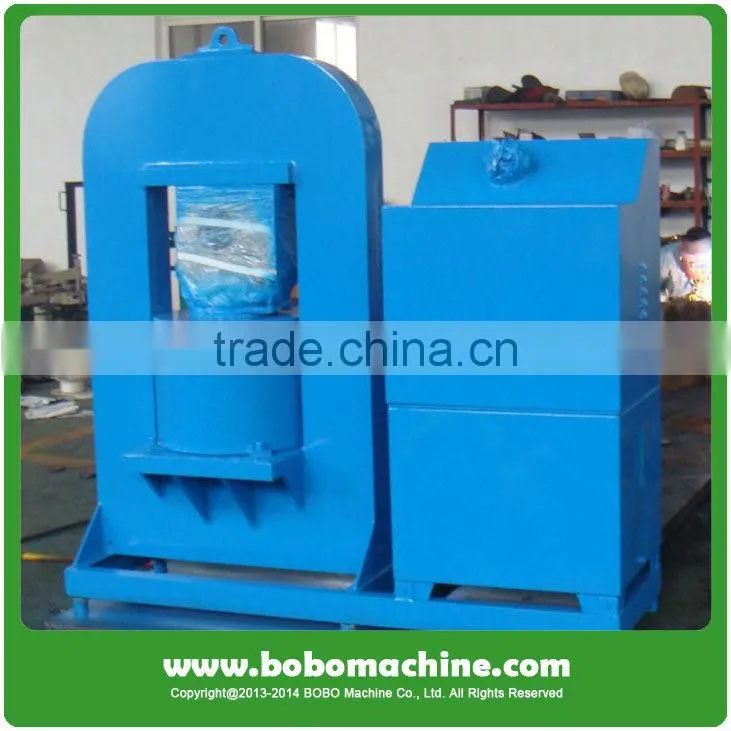

Hydraulic wire rope ferrule swaging machine
The hydraulic wire rope ferrule swaging machine has the features of light weight, small volume and strong durability and is widely used in many fields in China and abroad.
Feature
Cylinder embedded design
Round independent mold
- Adjustable piston stroke
-
Eye-catching appearance
Main technical data
| 1 | Model | GT-100 |
| 2 | power | 1000KN |
| 3 | Max. wire rope diameter | 13/15mm |
| 4 | Max. working pressure | 28MPa |
| 5 | Max. piston stroke | 78mm |
| 6 | Work speed | 8mm/s up and 10mm/s down |
| 7 | Motor capacity | 4kw |
| 8 | Dimension | 1200x500x1150mm |
| 9 | Net Weight | 900kg |
