Specifications
Wheel rim roll former is the key machine for tubeless wheel,tractor wheel and the agricultural wheel rim production.

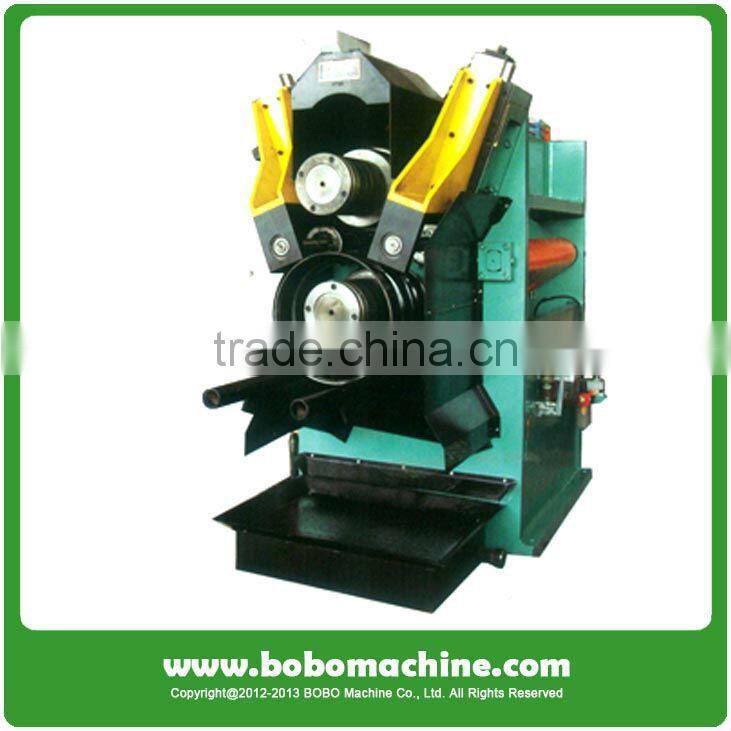

Wheel rim roll former
Wheel making machine--- wheel roll forming machine--- tubeless wheel roll former (cold forming)
The roll forming machine is used to form the section profile of wheel by rotating roller, usually three machines composed to a complete work unit to form the wheel step by step. The machine is equipped with pneumatic loading and unloading device for convenient operation.
Main technical data
1. Bead seat diameter: 17.5″~ 38″
2. Bead seat width: 3″~ 16"( Max. mould-fixed width 550mm)
3. Rim thickness: 3-7 ( when the width is over 12″,the thickness no more than 6mm)
4. Productivity: 1~2 piece/min
(when thickness more than 6mm, or diameter is more than 25”, the productivity will drop accordingly.)
5. Power: 140K w
6. Drive:Hydraulic driven
7. Equipped with double spindle synchronous device
8. With Cooling system , Lubrication system
Work precision |
0.01mm |
Control system |
PLC |
Power |
168.5KW |
Dimension |
2200X2750X2420mm |
Weight |
About 11.5ton |
For normal line, three sets of wheel r"oll forming machines are suggested for a completed line.
