Specifications

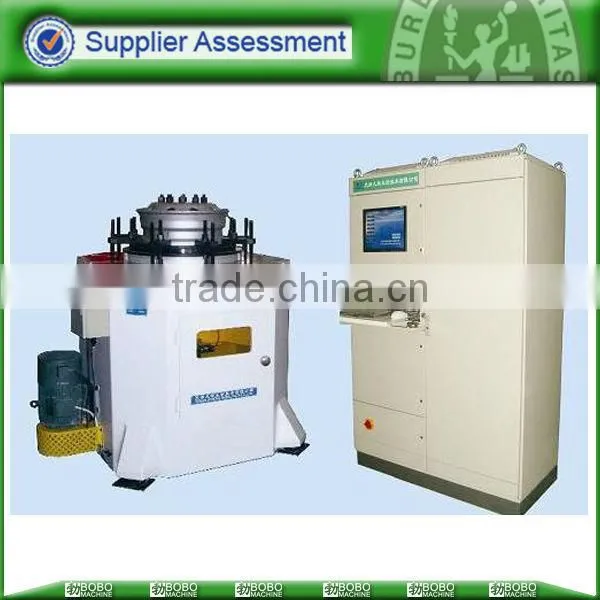

The wheel concering fatigue testing machine is designed based on ISO, SAE, JIS, ect standards, widely used for car wheel, truck
wheel cornering fatigue testing machine
The wheel concering fatigue testing machine is designed based on ISO, SAE, JIS, ect standards, widely used for car wheel, truck and bus wheel dynamic concering fatigue testing.
Main technical data
1.Structure: stationary wheel is subjected to a rotating bending moment.
2. Rated power: 10 kW
3. Wheel diameter: 12″~26″
4. Wheel width: 4″~12″
5. Test rotation speed: 600~2400rpm, accuracy: ±1%
stepless variable frequency drive
X-Y bending moment: 1~10 kN•m, accuracy: ±1%
Loading mode: Loading in closed-loop
Measuring shaft deflection values accurate within ±2%
6- Sampling points: 400 points a cycle
7- Speed control mode: AC closed-loop VFD
8- Automic alarm and protection syetem
9- Dimensions: Approx.L1400mm×W1060mm×H1300mm
10 -Total weight: max.2t
Key word: Wheel impact testing machine, wheel testing machine, impact tester, wheel radial fatigue testing machine, wheel cornering fatigue testing machine.
