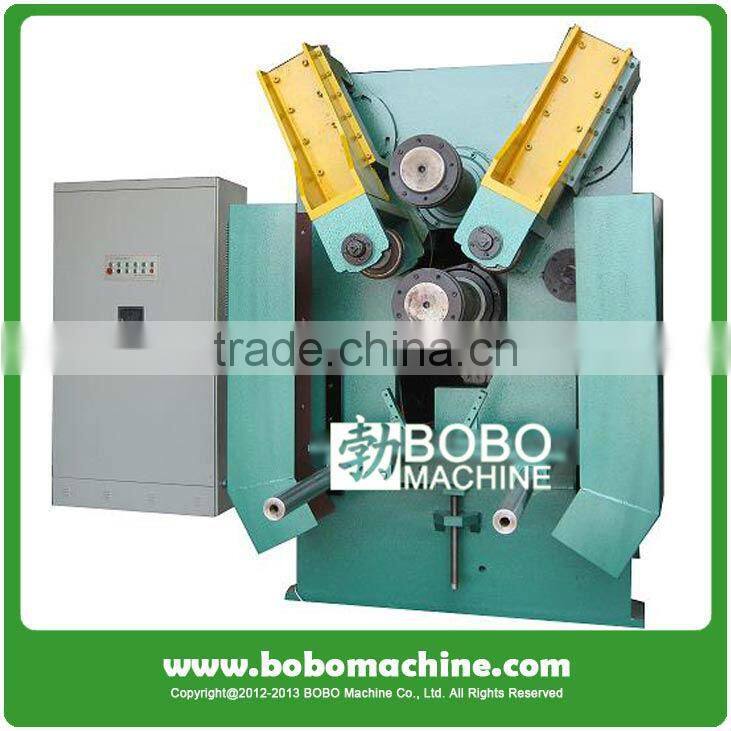

Tubeless Wheel Roll Forming Machine
US$ 20,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BOBO
Model Number:
WFM-II
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wheel Rim Roll FormerUS$ 28,000 - 52,000MOQ: 1 Set -
Truck Wheel Cornering Fatigue Testing MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
Passenger Car Wheel Cornering Fatigue Testing MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
Steel Wheel Rim Manufacturing Machine for Tubeless Car Wheel and Tractor Wheel Making.US$ 50,000 - 100,000MOQ: 1 Set
-
Agricultrual Wheel Welding EquipmentUS$ 80,000 - 200,000MOQ: 1 Set
Brand Name
BOBO
Model Number
WFM-II
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Tubeless wheel roll forming machine1- Automatic loading/unloding
2- Full hydraulic driven
3- Automatic lubrication
Tubeless wheel roll forming machine
Wheel making machine--- wheel roll forming machine--- tubeless wheel roll former (cold forming)
Main technical data
Diameter range of wheel rim |
12”~16” |
Width of wheel rim |
4”~8” |
Thickness of material |
2.5mm~4.5mm |
Diameter of top roller |
1450-0.02 |
Diameter of bottom roller |
1450-0.02 |
Central distance between two rollers |
256mm~456mm |
Rolling force |
196KN(16Mpa) |
Productivity |
About 10~15 second per piece |
Spindle speed (bottom roller) |
310 rpm |
Control system |
Mitsubishi PLC |
For normal line, three sets of wheel roll forming machines are suggested for a completed line.
