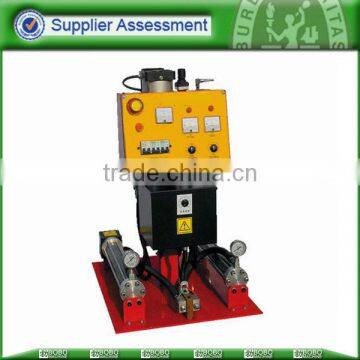

Pipe insulation foam machine
- 8 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Lightweight thermal insulation house prefabricated wall panel price
- Mgo Sound insulation and heat preservation concrete hollow lightweight partition wall panels
- lightweight partition wall panel
- building material Mgo precast wall panels
- Mgo lightweight concrete foam wall panels Quality Choice
- Supply perforated/acoustic/sound-absorb wall panel mgo board/fireproof mgo board/magnesium oxide board
Product Details
Condition: | New | Product Type: | Other, foam machine | Place of Origin: | Jiangsu, China |
Brand Name: | BOBO | Model Number: | BDF-V | Voltage: | 220V, 50Hz, single phase (can be customized) |
Power(W): | 7Kw | Dimension(L*W*H): | 1100x700x1400mm | Weight: | 350Kg |
Certification: | Other, ISO9001 | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Pipe insulation foam machine1.Pneumatic motor
2.High precision proportion pump
3.Main machine heating system
Pipe insulation foam machine
The Pipe insulation foam machine is design for sitework, with accuracy measuring, even mixing, moveable and portable structure and balance of cost and performance. The HP foam spraying machine is widely used for wall, roof, refrigerator, and box, pipe insulation purpose.
Feature:
1. Horizontal-opposed both way proportioning pump adopt coaxial type design, to avoid the pressure discrepancy because of gravity. All the pump system equipped with pressure overload protection switch for emergency stop.
2. The main machine heating system adopt independent all-aluminum heater, equipped with 8 pieces of high capacity heating bar for more powerful heating capacity, especially suitable for low temperature work in winter. The temperature controller equipped with display, measuring and over-heat protection device.
3. Self-cleaning system
4. Pressure compensation
5. Hydraulic drive system
Main technical data:
Model | BDF-V |
Max. Flow capacity | 2-8kg/min |
Mixing ratio | 1:1, fixed ratio |
Material viscosity range | 200-1000CPS (Operation temperature) |
Max. System pressure | 25MPa |
Single material output press | Max.26MPa |
Hydraulic pressure | 8-12MPa (for working) |
Material heating capacity | 9000W X 2 |
Hose heating capacity | 3200W |
Max. Hose length | 90M |
Electric system | 38A x 3 + 16A -380V 3Phase |
Driven system | Full-hydraulic |
Cleaning system | Pneumatic cleaning |
Dimension | 1100x700x1400mm |
Weight | 350KG |
Standard configuration | Main machine, one set Feeding pump, two pieces Spray gun, one piece Gun connection hose 1.5 m, one set Heating hose 15m, one set |
1. Can spray foam machine be 220V, 60Hz?
Re: We can customize the electric system according to your requirements.
2. If I buy the spray foam machine, do I need to buy any other parts?
Re: We will provide all the necessary accessories going with the machine including spray gun heating hose, material pump etc., that means the machine is ready to work when you receivw it.
3. Can the heating hose length be extended?
Re: Yes, the heating hose length can be extended to 60/90m for different machines, and we will provide one set standard heating hose going with the machine, which length is 15m.
4. Can you provide the raw material along with the machine?
Re: We can supply the raw materials for fire proof, wall , roof insultion.
5. What’s the difference between polyurethane spray foam machine and polyurea spray foam machine?
Re: The polyurethane spray foam machine is widely used for wall, roof, refrigerator, and box, pipe insulation purpose, and the polyurea spray foam machine is mainly used for wall, roof, refrigerator, tank body, pipeline protection coat for abrasive surface, waterproof, antiseptic purpose.
6. What’s the HS code of the spray foam machine.
Re: The HS code of the machine is 8477800000.
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
1 Professional and patient consulting service to help you find the suitable solution.
2 Further negotiation about the technical details, machine configuration, price basis, payment term and delivery time.
3 Powerful control of the machine production schedule and quality, and keep you posted about details in time.
4 Free training and accommodation in our plant during machine inspection. Or photos and video of the machine and package for your confirmation before shipment.
5 Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.
6 For technical support, we can help you online by email and phone, also we can send technicians to your site if necessary.
7 For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that.
BOBO MACHINE CO., LTD is the professional supplier for metal processing machinery in China. We supply the duct machine, pu foam machine, baling machine, leather machine, wheel production line and different kinds of metal processing machinery.
With many years successful industry experience, we have established long term cooperation with lots of customer from all over the world. Also we have sales network in Britain, Russia, USA, Mexico and Brazil to supply the machine and service in local market directly.Also we can work as your professional consulting advisor in China to sourcing the right machine and equipment as per your requirements, to offer you the complete solution and necessary after sale service.
“Professional and creditable, customer first”, with these work faith, we successfully win the expanded market and favorable feedback from our customers, and we always look forward to be your reliable supplier and advisor in China, to have a long term cooperation for mutual benefit.
