Polyurethane Insulation Spray Machine
- polyurethane insulation spray machine will be delivered from Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Product Type | Other, foam machine | |
| Place of Origin | Jiangsu, China | Brand Name | BOBO | |
| Model Number | BDF-III | Voltage | 220V, 50Hz, single phase (can be customized) | |
| Power(W) | 7Kw | Dimension(L*W*H) | 800x700x1100mm | |
| Weight | 200Kg | Certification | Other, ISO9001 | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
polyurethane insulation spray machine1.Pneumatic motor
2.High precision proportion pump
3.Main machine heating system
polyurethane insulation spray machine

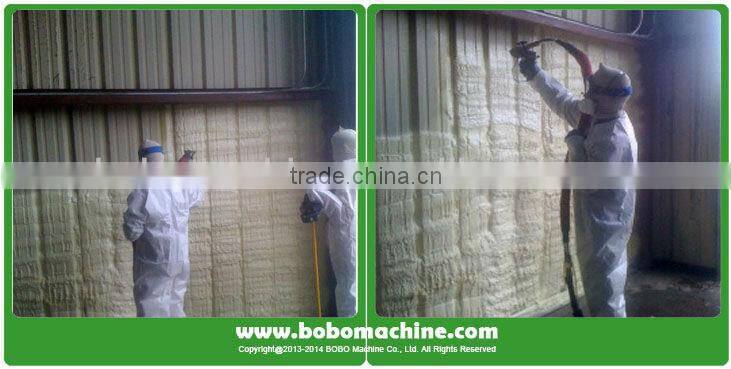

The polyurethane insulation spray machine is design for sitework, with accuracy measuring, even mixing, moveable and portable structure and balance of cost and performance. The HP foam spraying machine is widely used for wall, roof, refrigerator, and box, pipe insulation purpose.
Feature of polyurethane insulation spray machine
1 Pneumatic motor
2 High precision proportion system
3 Main machine heating system
4 Hose heating system
Main technical data of polyurethane insulation spray machine
| Model | BDF-III |
| Max. Flux capacity | 2-6.8kg/min |
| Max. material temperature | 90 centigrade |
| Mixing pressure | 5-10Mpa(700-1500PSI) |
| Heating capacity | 7Kw |
| Max. hose length | 60m |
| Driving method | Pneumatic with air compressor |
| Motor power | 220V, 50Hz, single phase (can be customized) |
| Dimension | 800x700x1100mm |
| Weight | 200Kg |
| Main machine with variable mixing ratio | 1:1 to 2:1 |
