Specifications

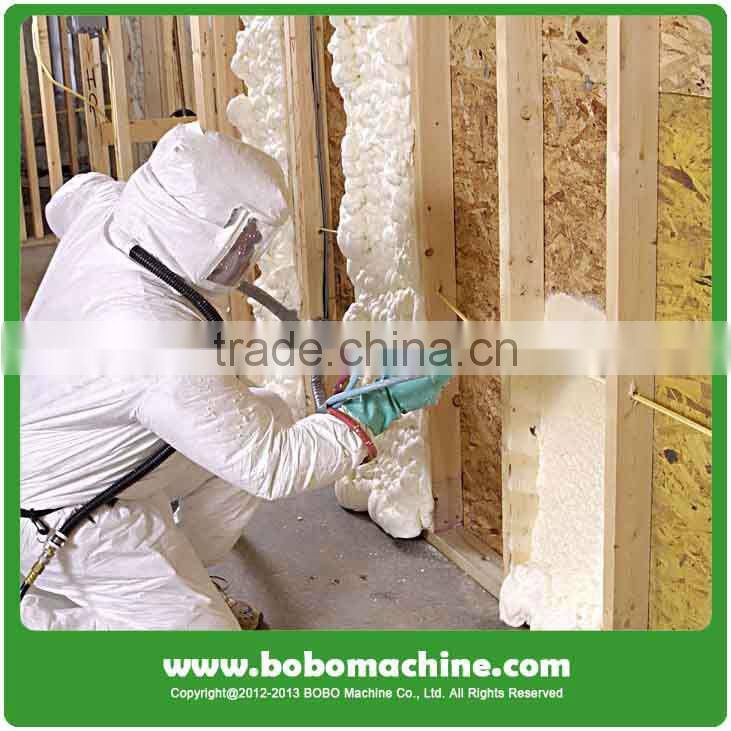

The foam spray machine is used to spray the pu foam on wall, roof for heat insulation purpose.
Foam spray machine
The Polyurethane spray foam machine is used to spray the pu foam on wall, roof for heat insulation purpose.
We can supply both high pressure spray foam machine and low pressure spray foam machine for option.
Feature
1- Pneumatic motor
The pneumatic motor adopt the lastest direction-change for double direction work, has more stable
performance compare to electric one, suitable for complicated sitework condition.
2- High precision proportion pump
The proportion pump is made from stainless steel, to reduce the abrasion to seals, lengthen the
machine life. Equipped with oil tank for DOP solvent to clean the scrap material.
3- Main machine heating system
The main machine adopt separate aluminum heater, equipped with powerful heating bar for better
heating capacity, suitable for low temperatuer work in winter. The temperature control system with
number display, with measuring and overload protection system to control temperature exactly.
Main technical data
| 1 | Flow capacity | 6-9kg/min |
| 2 | Max. height temperature | 90 centigrade |
| 3 | Mixing presure | 12MPa |
| 4 | Heating power | 8KW |
| 5 | Hose height | 15m (standard), max. 60m |
| 6 | Driving method | Pneumatic with air compressor |
| 7 | Motor power | 220V, 50/60Hz, sigle phase |
| 8 | Dimension | 600x600x1100mm |
| 9 | Weigt | 150KG |
