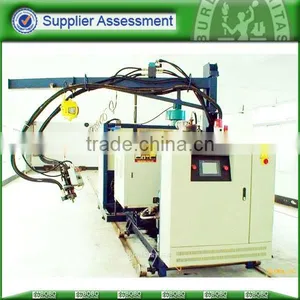

Home > Manufacturing & Processing Machinery > Plastic Machinery > Foam Machinery > PU Insulation Machine
US$ 4,000 - 18,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, polyurethan foam product
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Prssure Foam Spraying MachineUS$ 3,000 - 6,000MOQ: 1 Set -
Freezer Insulation Foam MachineUS$ 3,000 - 10,000MOQ: 1 Set
-
Smart/ Portable / Mobile Foam Injection MachineUS$ 3,000 - 5,000MOQ: 1 Set
-
High Configuration Polyurethane Foam Insulation Injecting MachineUS$ 13,000 - 20,000MOQ: 1 Set
-
High Pressure Polyurethane Foam MachineUS$ 8,000 - 35,000MOQ: 1 Set
Condition
New
Product Type
Other, polyurethan foam product
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
GZ-30/220
Voltage
380V
Power(W)
5.5-15KW
Dimension(L*W*H)
2000X2000X1800mm
Weight
2000kg
Certification
Other, ISO
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
PU insulation machine1- pu foam injection machine
2- pu foam spray machine
3- low or high pressure work
4- CE, ISO certify

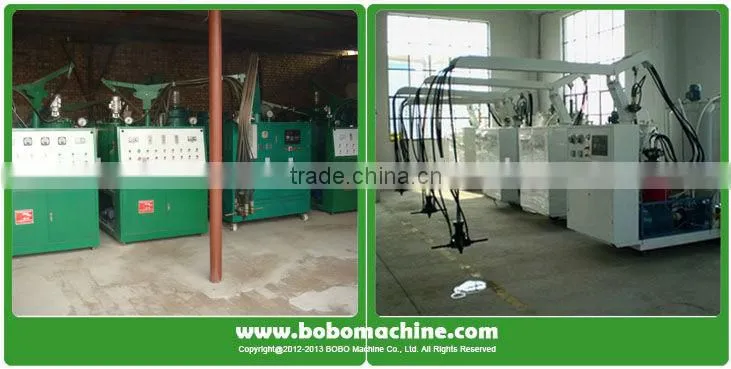

PU insulation machine
Wecan supply the foam injection machine, foam spraying machine for pu insulation work, both the low pressure and high pressure one for option.
Main technical data
- Main pump motor power: 2.5kW
- Mixing motor power: 0.75kW
- Hydraulic pump motor power: -
- Auto glue filling motor power: 2.2kW (two set for two tanks)
- Flux: 0~6kg per minute
- Capacity of the tanks for polyurethane glue: 180kg each, auto filling glues

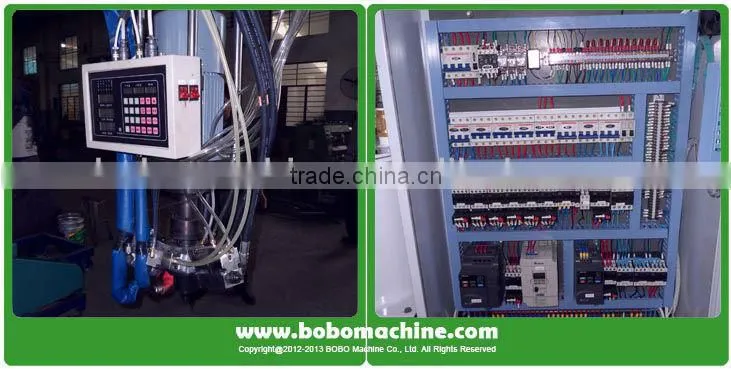

- PLC automatic control: PLC programmable, automatically heating, injecting, cleaning and blowing; Special PLC system from Chinese domestic which can save 99 programs.
- Equipped piston type measuring pump: HJ30-50 (two), adjusting accuracy 0.05%.
- Generating pressure: 8-10MPa (one 0.8 m3 air compressor is equipped by buyer)
- Machine weight: about 600kg
- Dimension: 1370mm x 1350mm x 2250mm
