Specifications
BOBT60CNC model punching machine is developed by ourselves.BOBT60CNC model punching machine is developed by ourselves, which is based on foreign advanced technology.
Square pipe punching machine

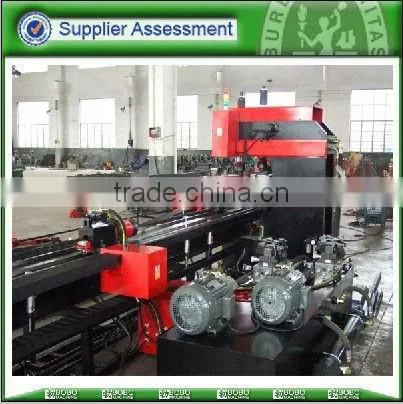

BOBT60CNC model punching machine is developed by ourselves, which is based on foreign advanced technology. It is controlled by a microcomputer; with LCD; feeding way is servo drive and has positioning precision.
The machine has many features, such as convenient operation, man-machine direct conversation, stable performance, high efficiency and high safety factor. In a word, this is a high-precision punching machine.
Feature
1-Convenient operation
2-Man-machine direct conversation
3-Stable performance
4-High efficiency and high-precision
Main technical data:
No |
Name |
parameter |
1 |
Pipe max diameter × wall thickness |
Φ60×8mm |
2 |
max blanking force |
20T |
3 |
max punching radius |
D—2tmm |
4 |
feedingprecision |
±0.1mm |
5 |
punching speed |
3s/hole |
6 |
hydraulic system working pressure |
12Mpa |
7 |
motor power |
4kw |
8 |
servo motor power |
0.4kw |
9 |
oil pump displacement |
19L/min |
10 |
equipment weight |
about 800kg |
11 |
dimension |
330*60*80cm |
