Production Line for Automatic Blanking, Forming, Drawing

Specifications

the mechanical press and feeder, also the decoiler, recoiler, etc to complete a produciton line for automatic & continuous work.

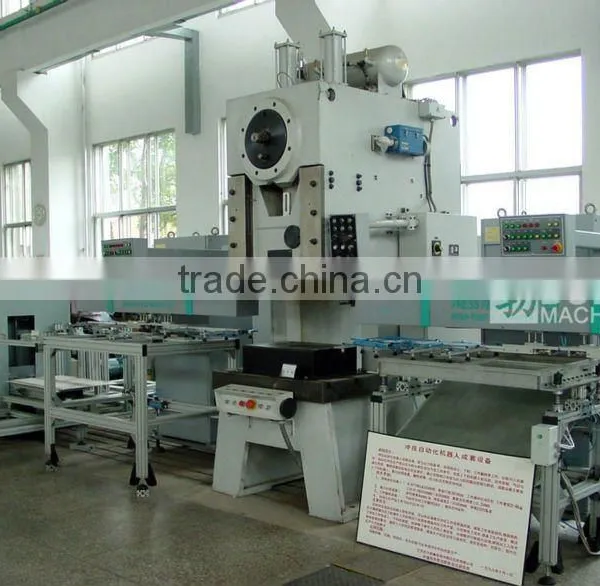

The automatic punching line, stamping line, blanking include decoiler, straightener, feeder, punching machine and recoiler,etc, used for continuous work.

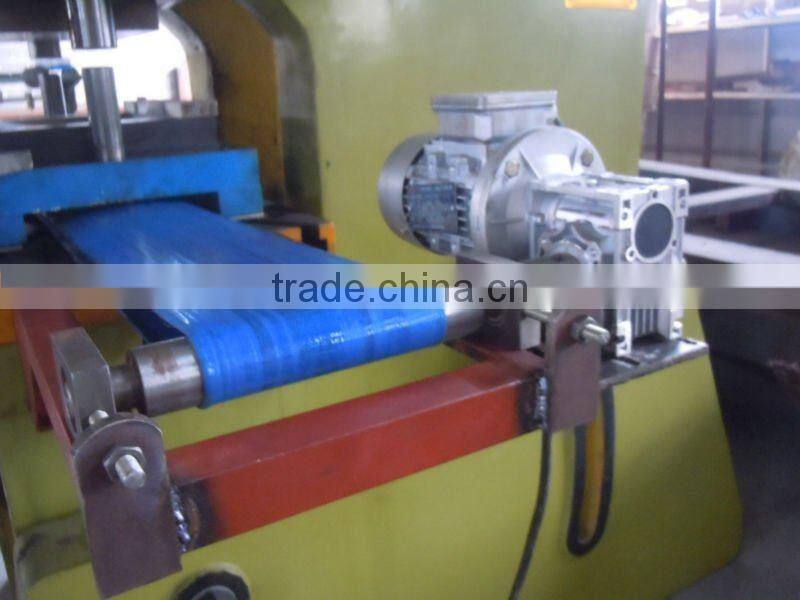

Automatic pneumatic feeding device

The auto feeder is pneumatic driven, controlled by electric valve for feeding speed adjustment. Adjustable foot stool to match up with punching machine

l  Model: BAF-7C

l  Suitable coil width: 250mm

l  Suitable material thickness: max.2.5mm

l  Feeding length: 250mm

l  Feeding speed: 48 times per minute

l  Feeding precision: +/- 0.2mm

l  Air pressure needed: 0.5MPa

l  Weight: 80kg

Such automatic production line can be use for material blanking, profile forming, deep drawing, etc work with speical designed mould, die, tools.

I Production flow:

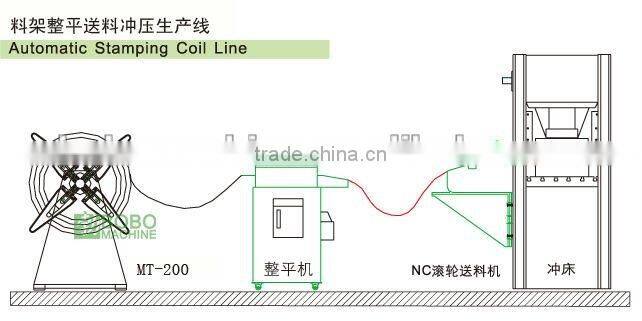

Decoiling and straightening machine → Pneumatic feeding device → punching machine

II Technical data

l  Material: Steel plate in coil

l  Available external diameter: 1200mm

l  Available interior diameter: 508±10mm

l  Width of steel strip: 250mm

l  Thickness of steel strip: 0.6mm

l  Weight of coil: ≤1200 kg

l  Work speed: 48pieces/min

l  Power: 380V±10%

l  Air pressure: ≥0.5Mpa

auto press line used for material blanking work.

We can supply the complete production line inlcude punching  die, punching mould, punching tools.

Automatic punching production line with automatic feeding device, automatic recoiling work, etc.
