Spiral Duct Former
US$ 10,000 - 55,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Pipe forming machine
Pipe Material:
Carbon Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Machine for Hvac Spiral DuctUS$ 20,000 - 30,000MOQ: 1 Set -
Machine for Duct LockUS$ 5,000 - 28,000MOQ: 1 Set
-
HAVC Spiro Round Galvanized Duct Tubeformer MachineUS$ 10,000 - 25,000MOQ: 1 Set
-
HVAC Standing S&D Cleat Slip and Drive Lockformer and Rollformer MachineUS$ 8,000 - 12,500MOQ: 1 Set
-
HVAC Round Galvanzied Air Duct Spiral Tubeformer Machine BTF-IIIUS$ 25,000 - 35,000MOQ: 1 Set
Condition
New
Type
Other, Pipe forming machine
Pipe Material
Carbon Steel
Application
Other, Ventilation air duct
Production Capacity
35m/min
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
BTF series
Voltage
380V or Customized
Power(W)
15KW
Dimension(L*W*H)
3500X2800X2600mm
Weight
2500KG
Certification
CE, ISO
Warranty
ONE YEAR
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Spiral duct former1- tubeformer
2- air duct machine
3- duct forming machine
4- spiral pipe machine

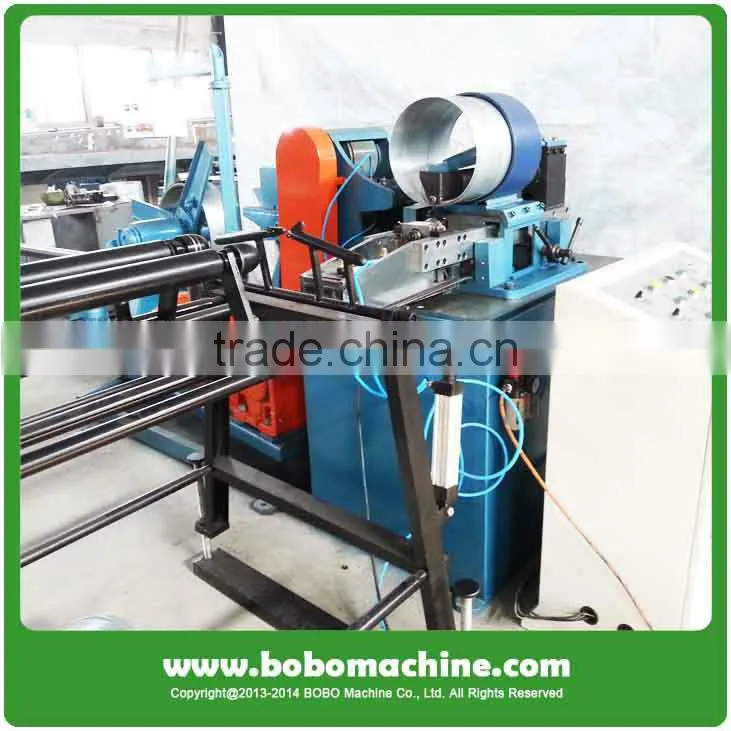

Spiral duct former

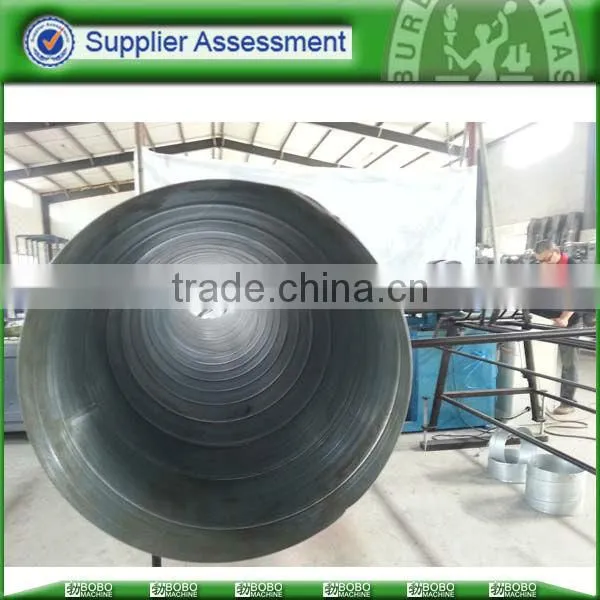

The spiral duct former is used to produce the round rigid air duct for ventilation purpose, diameter from 100-1600mm, wall thickness up to 1.2mm.
Feature

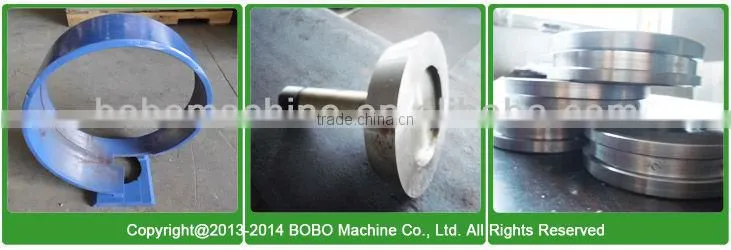

- Special aluminum alloy mould, light & long life

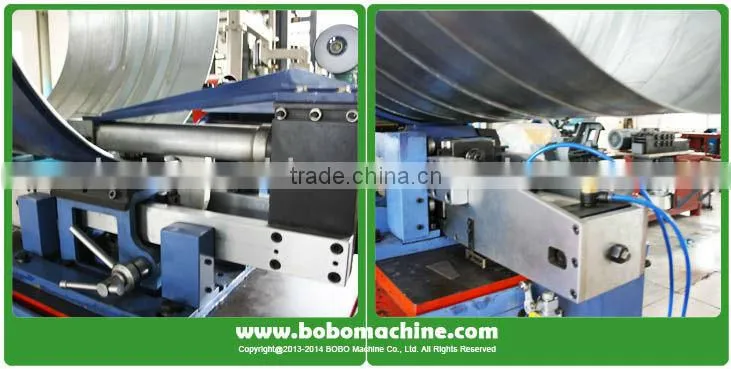

- Round roller shear, without noise and burrs

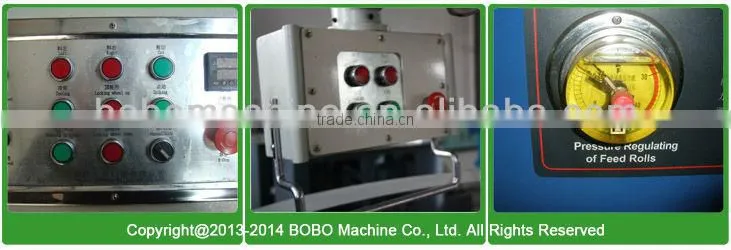

- PLC control, convenient operation

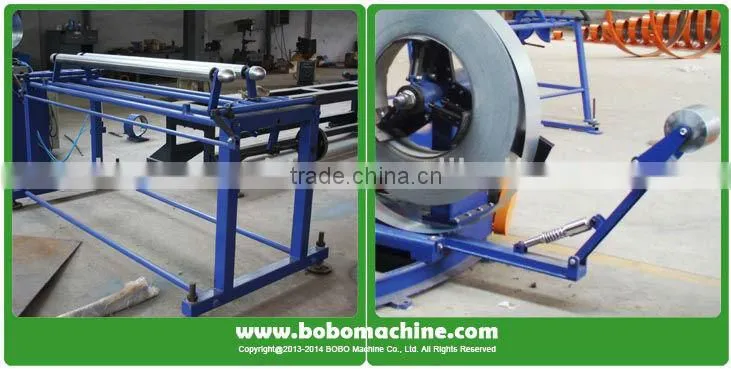

- Auto unloading rack, low labor cost
Main technical data
| 1 | Diameter | 100-2000mm |
| 2 | Thickness | 0.4-1.2-2.0mm |
| 3 | Strip width | 140-155mm |
| 4 | Strip feeding speed | 1-30m/min, adjustable |
| 5 | Suitable material | Galvanized steel, stainles steel |
| 6 | Main motor power | 15KW |
| 7 | Hydualic motor power | 4KW |
| 8 | Air compressor | 0.8MPa |
| 9 | Dimension | 3500 x 2800 x 2580mm |
| 10 | Weight | about 2500KG |
BTF seires spiral tubeformer, spiral duct forming machine, ventilationd duct machine, spiral tube former, spiral duct former, ventilationd duct machine, HVAC duct machine, air duct machine.
