Machine for Hvac Spiral Duct

Bobo Machine Co., Ltd.
Machine for Hvac Spiral Duct thumbnail-1
Machine for Hvac Spiral Duct photo-1
US$ 20,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Pipe Molding Machine
Pipe Material:
Other, Galvanzied steel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Pipe Molding Machine
Pipe Material Other, Galvanzied steel
Application Other, HVAC Duct
Production Capacity 20-35m/min
Place of Origin Jiangsu, China
Brand Name BOBO
Model Number BTF-I
Voltage 380V
Power(W) 9.5KW
Dimension(L*W*H) 2000X1800X1450
Weight 2200KG
Certification CE
Warranty one year

Specifications

Machine for hvac spiral duct
1- diameter 80-1000
2- thickness 0.4-1.0mm

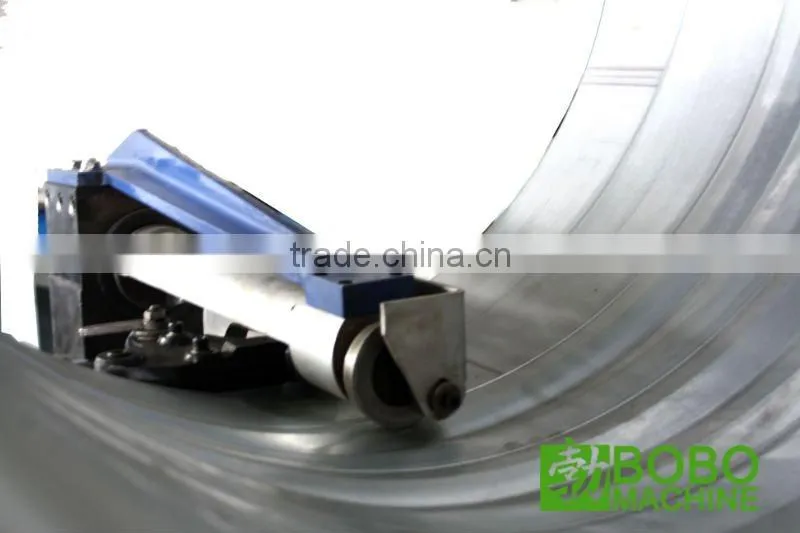

3- tracking-saw cutter
4- unloading rack

 Machine for hvac spiral duct

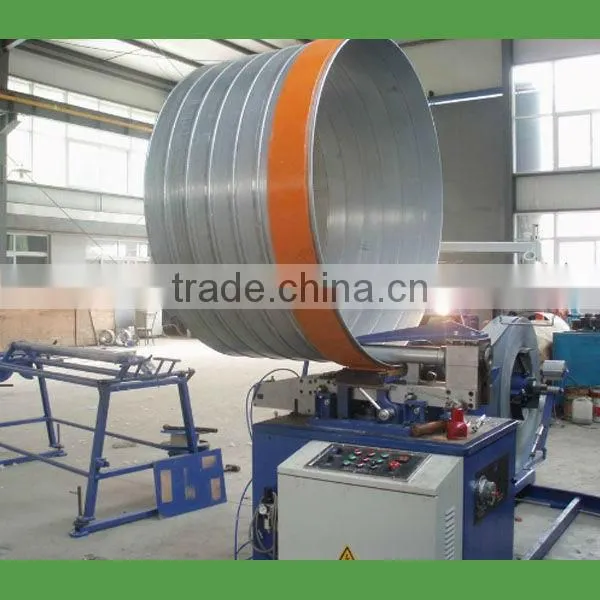

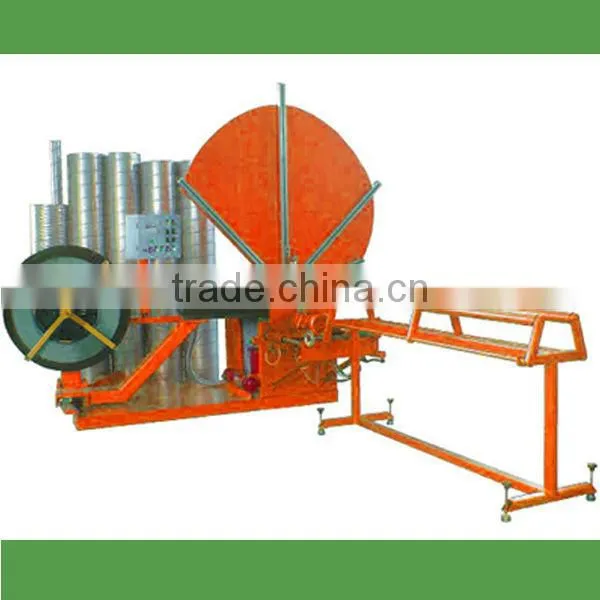

The spiral duct forming machine BTF-I is used to produce the round rigid air duct for ventilation purpose, diameter from 80-1000mm, with wall thickness 0.4-1.0mm galvanized steel.



 Machine for hvac spiral duct



Feature

1. Special aluminum alloy mould, light & long life

2. Round roller shear, without noise and burrs

3. Large diameter range

4. PLC control, convenient operation

5. Auto unloading rack, low labor cost



 Machine for hvac spiral duct

Main configuration

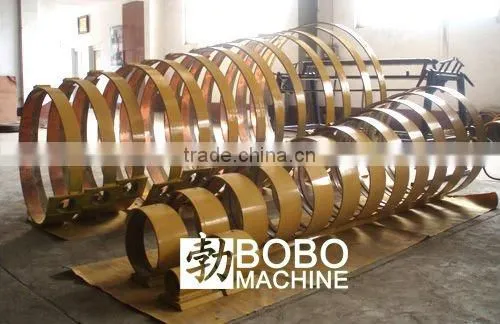

1 Uncoiler: mechanical expanding type, capacity 1500kg, inner diameter range 480-610mm, outer diameter 1000mm.

2 Control system: Mitsubishi inverter, PLC control

3 Driving system: Spiral subulate gear type decelerator (low noise, large moment)

4 Material of forming rollers: GCr15 bearing steel, quenched, HRC58-62

 Machine for hvac spiral duct



Key words:  BTF-I spiral tubeformer, spiral duct forming machine, ventilationd duct machine, spiral tube former, spiral duct former, ventilationd duct machine, HVAC duct machine, air duct machine.
