Metalized PET Film Flexible Duct Machine

Metalized PET Film Flexible Duct Machine thumbnail-1
Metalized PET Film Flexible Duct Machine photo-1
US$ 4,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other, Spiral duct forming machine
Pipe Material:
PE
Application:
Other, air conditioning; ventilation
Contact Supplier Request Quote Chat Now
Bobo Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Spiral duct forming machine
Pipe Material PE
Application Other, air conditioning; ventilation
Place of Origin Jiangsu, China
Brand Name BOBO
Model Number AFD-600

Specifications

Material
1- Single side aluminum foil
2- Double side aluminum foil
3- Metalized PET film
4- Fibergalss reinforced scrim film

Metalized PET film flexible duct machine1- Metalized PET film flexible duct machine

2- Aluminum flexible duct foming machine

3- Flexible aluminum duct forming machine

4- Flexible ventilation duct machine

5- spiral flexible duct making machine

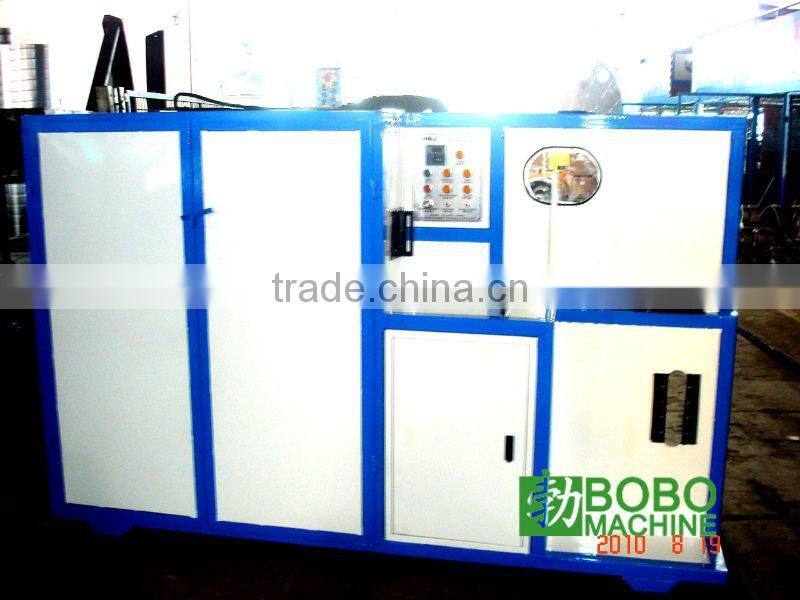

 Metalized PET film flexible duct machine

The machine is used to produce aluminum flexible ducts with aluminum foil or metalized PET film with steel wire reinforcement



Main technical data

1.1 Diameter range: 80mm~600mm

1.2 Length of aluminum tube: 1-10m

1.3 Raw material: metalized PET film, 0.012mm, width 35-50mm

1.4 Dimension (L x W x H): 2200 x 820 x 1550mm

1.5 Weight: 500kg

1.6 Main motor power: 1.5kW

1.7 Temperaute: 40~120 centigrade

1.8 Electric heating power: 2.4kW

1.9 Working speed: 1-35 m/min, adjutable

1.10 Features of finished ducts:

Temperature resistance: -30°C-140°C

Max. air flux: 30m/s

Max. working pressure: 2500Pa

Pitch between corrugations: 20mm



Metalized PET film flexible duct machineMetalized PET film flexible duct machine

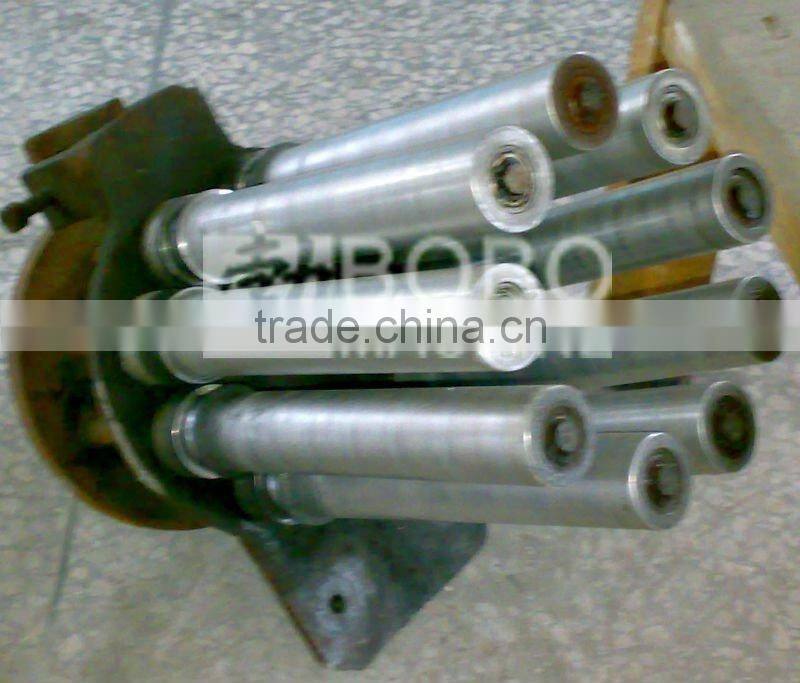

Forming mould                                          Finished product
