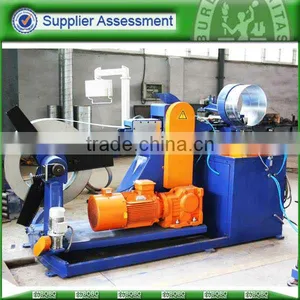

Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Pipe Making Machine > Spiral Tubeformer BTF-II
US$ 13,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Pipe Production Line
Pipe Material:
Carbon Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Air Duct Seam Welding MachineUS$ 5,000 - 8,000MOQ: 1 Set -
Double Layer Flexible Aluminum Duct Machine PAD-300 SeriesUS$ 6,000 - 12,000MOQ: 1 Set
-
Spiral Tube Forming MachineUS$ 20,000 - 99,000MOQ: 1 Set
-
Spiral Pipe Making Machine Zhtf-1500iUS$ 13,000 - 30,000MOQ: 1 Set
-
TDF Square Duct Flange Making MachineUS$ 5,000 - 8,000MOQ: 1 Set
Condition
New
Type
Pipe Production Line
Pipe Material
Carbon Steel
Application
Energy Supply Pipe
Production Capacity
1-30m/min
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
BTF-II
Voltage
380V or Customized
Power(W)
15KW
Dimension(L*W*H)
3500 x 2800 x 2580mm
Weight
2550KG
Certification
ISO, CE
Warranty
One year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Spiral tubeformer BTF-II1- Diameter 100-1600mm
2- Wall thickness: 0.4-1.2mm
3- Length: up to 12m
4- PLC control system

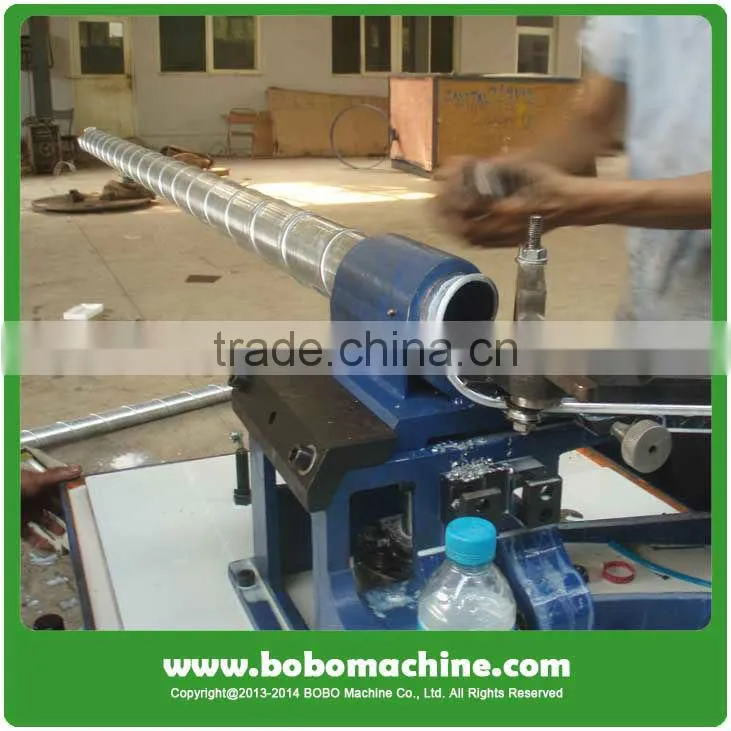

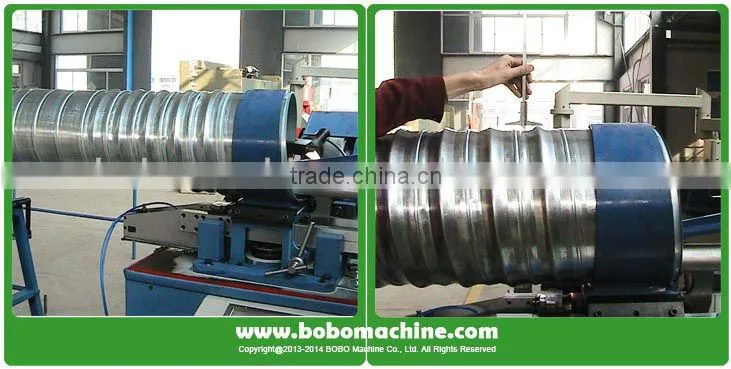

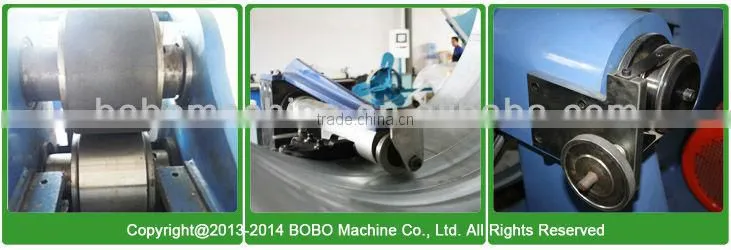

Spiral tubeformer BTF-II
The spiral tubeformer BTF-II is used to produce the round air duct for ventilation purpose, diameter from 100- 1600mm,thickness 0.4-1.2mm and length u to 12meter.
Main technical data
| 1 | Diameter | 100-1600mm |
| 2 | Thickness | 0.4-1.2mm |
| 3 | Strip width | 137mm |
| 4 | Strip feeding speed | 1-35m/min, adjustable |
| 5 | Suitable material | Galvanized steel, stainles steel |
| 6 | Main motor power | 15KW |
| 7 | Hydualic motor power | 4KW |
| 8 | Air compressor | 0.8MPa |
| 9 | Dimension | 3500 x 2800 x 2580mm |
| 10 | Weight | about 2500KG |
spiral tubeformer, spiral duct forming machine, ventilationd duct machine, spiral tube former, spiral duct former
