Spiral Tube Making Machine
US$ 10,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Pipe Molding Machine
Pipe Material:
Carbon Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Flexible Air Duct MachineUS$ 5,600 - 9,600MOQ: 1 Set -
Polyester Film Flexible Duct Making MachineUS$ 4,000 - 20,000MOQ: 1 Set
-
Spiral Wire Reinforced Aluminum Flexible Duct Forming MachineUS$ 4,000 - 20,000MOQ: 1 Set
-
Metalized PET Film Flexible Duct MachineUS$ 4,000 - 20,000MOQ: 1 Set
-
Insulated Aluminum Flexible Duct MachineUS$ 4,000 - 20,000MOQ: 1 Set
Condition
New
Type
Pipe Molding Machine
Pipe Material
Carbon Steel
Application
Other, Ventilation duct
Production Capacity
1-35m/min
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
BTF-I
Voltage
380V or customized
Power(W)
10KW
Dimension(L*W*H)
3500X2000X2580mm
Weight
2200KG
Certification
CE, ISO
Warranty
One year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Spiral tube making machine1- For ventilation air duct
2- Spiral lock forming
3- Automatic cutting
4- CE certified

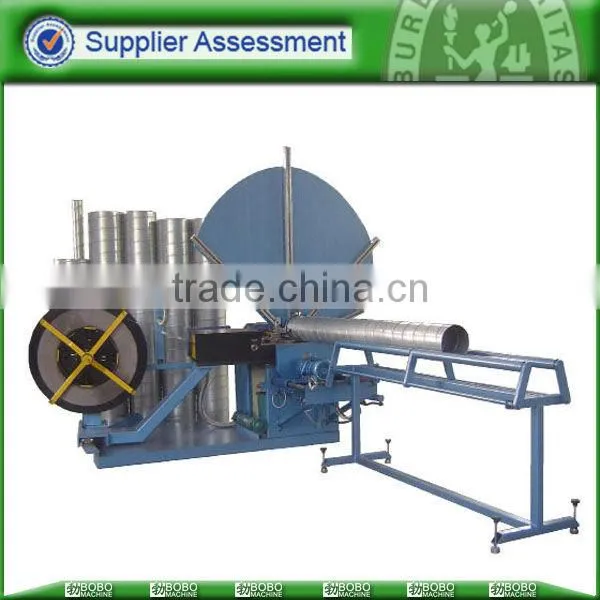

Spiral tube making machine

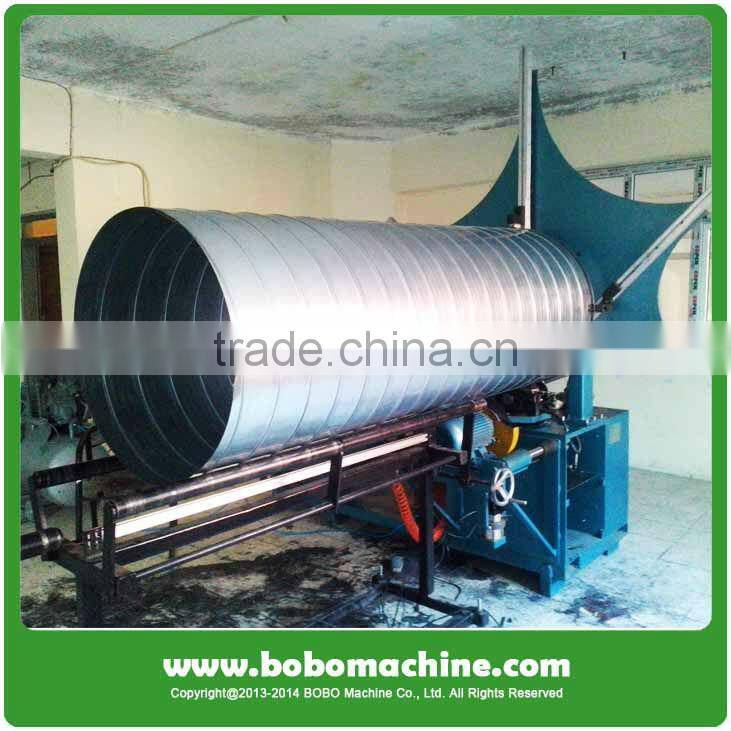

The spiral tube making machine is mainly used to produce the interlock spiral tube for HVAC work. Wall thickness up to 1.0mm and diameter up to 1400mm.
Feature
- Wall thickness up to 1.0mm for galvanized steel
- Diameter up to 1400mm for speical structure
- Pipe length up to 8000mm with automatic saw cutter
- Stable performance with easy maintenance
Main technical data
| 1 | Diameter range | 80-1400mm |
| 2 | Wall thickness | 0.4-1.0mm |
| 3 | Duct lenght | 6-8-12meter |
| 4 | Strip width | 137mm |
| 5 | Strip feeding speed | 1-38m/min |
| 6 | Main motor power | 5.5KW |
| 7 | Cutting motor power | 4.0KW |
| 8 | Air pressure | 0.8MPa |
| 9 | Dimension | 3500x2800x2580mm |
| 10 | Weight | about 2200KG |
spiral tubeformer, spiral duct forming machine, ventilationd duct machine, spiral tube former, spiral duct former.
