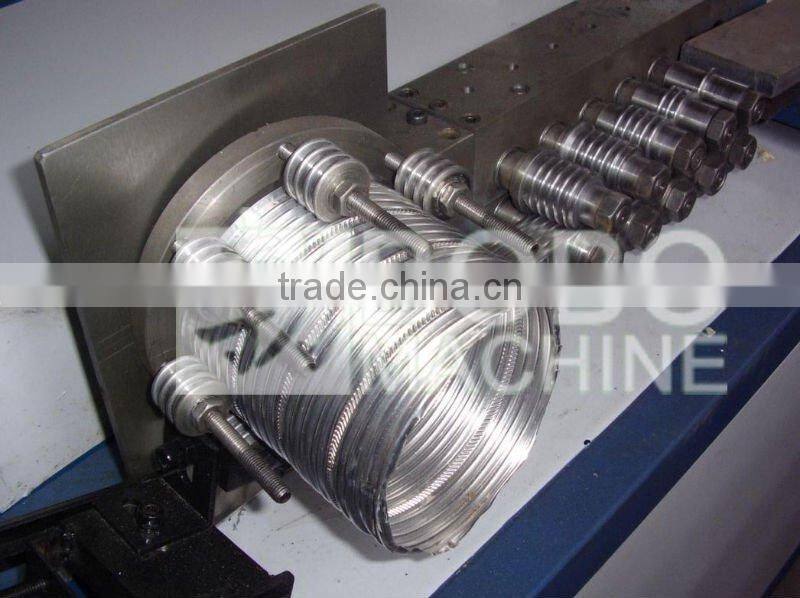

Pure aluminum foil flexible conduit forming machine

Specifications

This machine is specially for producing aluminum flexible ducts with pure aluminum foil without steel wire reinforcement.

Aluminum flexible conduit making machine

Aluminum flexible duct foming machine

Flexible aluminum duct forming machine

Flexible ventilation duct machine

spiral flexible duct making machine

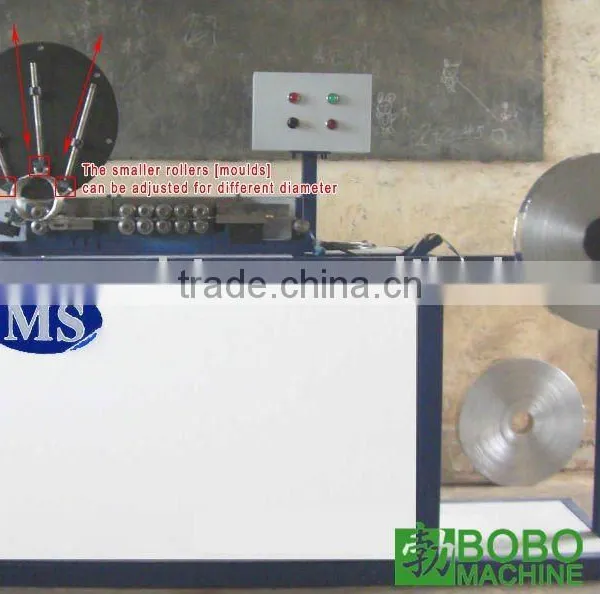

This machine is specially for producing aluminum flexible ducts with pure aluminum foil without steel wire reinforcement for various purpose. Our advantage is our omnipotent mould which will save investment cost.



Main technical data

1.1 Diameter range: 60mm~300mm

1.2 Length of aluminum tube: 100-8000mm

1.3 Suitable material: 42-55mm wide

Pure aluminum foil: 0.05-0.15 (code 8011, hardness H22)

1.4 Working speed: 1-5m/min

1.5 Weight: about 250kg

1.6 Main motor power: 0.75kW

1.7 PLC control system, from Japan

1.8 Dimension: 1200mm x 550mm x 1200mm (main machine, excluding unloading rack)

1.9 Duct concentrating device: 3000mm x 480mm x 1500mm
