PAD-300 Series Aluminum Foil Flexible Duct Machine
US$ 5,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, PAD-300 series Aluminum foil flexible duct machine
Pipe Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Spiral Flexible Aluminum Duct Making MachineUS$ 4,800 - 9,800MOQ: 1 Set -
Auto Produiton Line for Rectangle Air DuctUS$ 15,000 - 20,000MOQ: 1 Set
-
Rectangle Squre Air Duct Production LineUS$ 15,000 - 20,000MOQ: 1 Set
-
Metal Sheet Beading MachineUS$ 2,200 - 3,600MOQ: 1 Set
-
Duct ZipperUS$ 15,000 - 28,000MOQ: 1 Set
Condition
New
Type
Other, PAD-300 series Aluminum foil flexible duct machine
Pipe Material
Aluminum
Application
Other, air conditioning; ventilation
Production Capacity
25m/min
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
PAD-300-2
Voltage
380V
Power(W)
0.75KW
Dimension(L*W*H)
1200 x 550 x 1200 mm
Weight
400KG
Certification
CE, ISO
Warranty
one year since the date BL
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
PAD-300 series Aluminum foil flexible duct machine1- Easy operation
2- Quick change mould
3- Auto cutting system

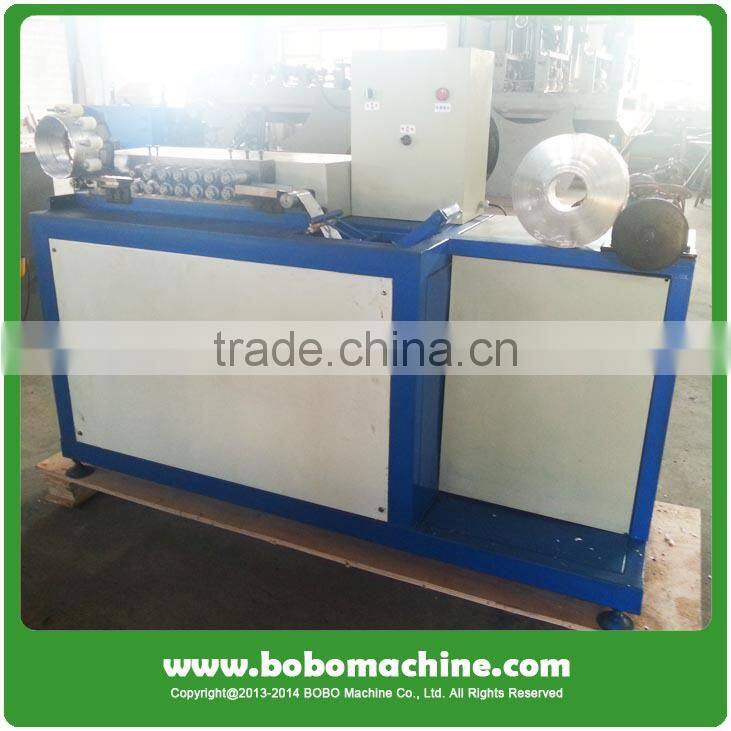

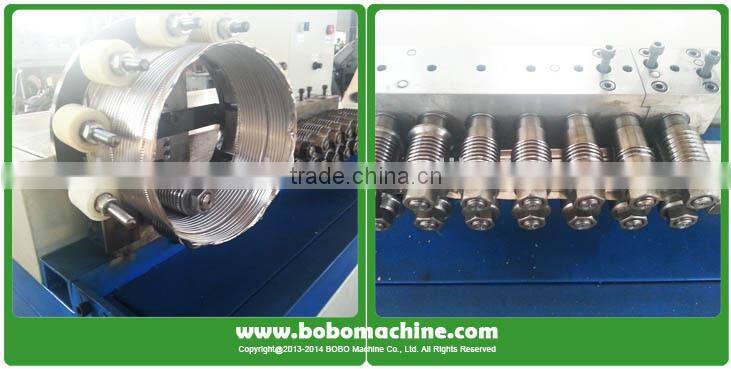

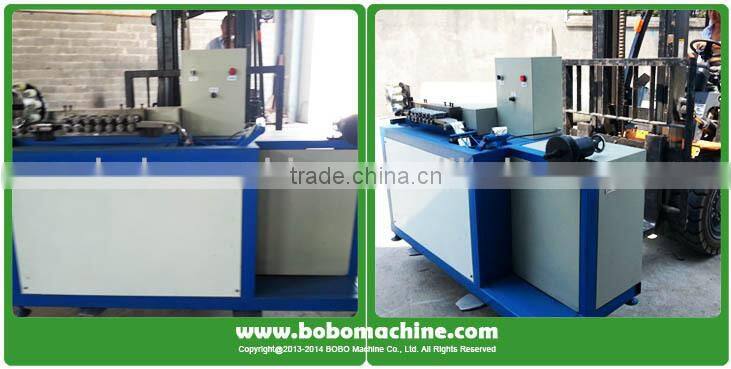

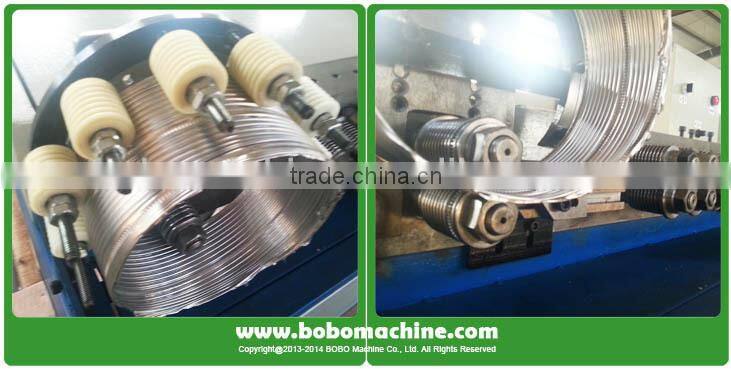

PAD-300 series Aluminum foil flexible duct machine
This PAD-300 series Aluminum foil flexible duct machine is specially for producing aluminum flexible ducts with pure aluminum foil without steel wire reinforcement for various purpose. Our advantage is our omnipotent mould which will save investment cost.
Feature
- Automatic forming speed can be adjustable
- Automatic online cutting device is optional
- Pneumatic compessing system is optional
Main technical data
| 1 | Diameter range | 60-300mm |
| 2 | Duct length | 100-8000mm |
| 3 | Pure aluminum foil size |
0.05-0.15mm thick 42-55mm wide |
| 4 | Forming speed | 1-5m/min |
| 5 | Main motor power | 0.75KW |
| 6 | Dimension | 1200 x 550 x 1200 mm |
| 7 | Weight | 260KG |
