Spiral Wire Reinforced Aluminum Flexible Duct Forming Machine
US$ 5,500 - 8,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Pipe Production Line
Pipe Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Flexible Aluminum Duct Forming Machine AFD-600US$ 5,500 - 15,000MOQ: 1 Set -
Aluminum Flexible Conduit Forming MachineUS$ 4,000 - 20,000MOQ: 1 Set
-
Flexible Aluminum Conduit Forming MachineUS$ 4,000 - 20,000MOQ: 1 Set
-
Pure Aluminum Foil Flexible Conduit Forming MachineUS$ 4,000 - 20,000MOQ: 1 Set
-
PAD-300 Series Aluminum Foil Flexible Duct MachineUS$ 5,000 - 20,000MOQ: 1 Set
Condition
New
Type
Pipe Production Line
Pipe Material
Aluminum
Application
Other, air conditioning; ventilation
Production Capacity
20m/min
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
AFD-600
Voltage
380V
Power(W)
1.5 KW
Dimension(L*W*H)
2200x 900 x 1350mm
Weight
450KG
Certification
CE, ISO
Warranty
One year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Spiral wire reinforced aluminum flexible duct forming machine1- Aluminum foil
2- Metalized PET film
3- Plastic film

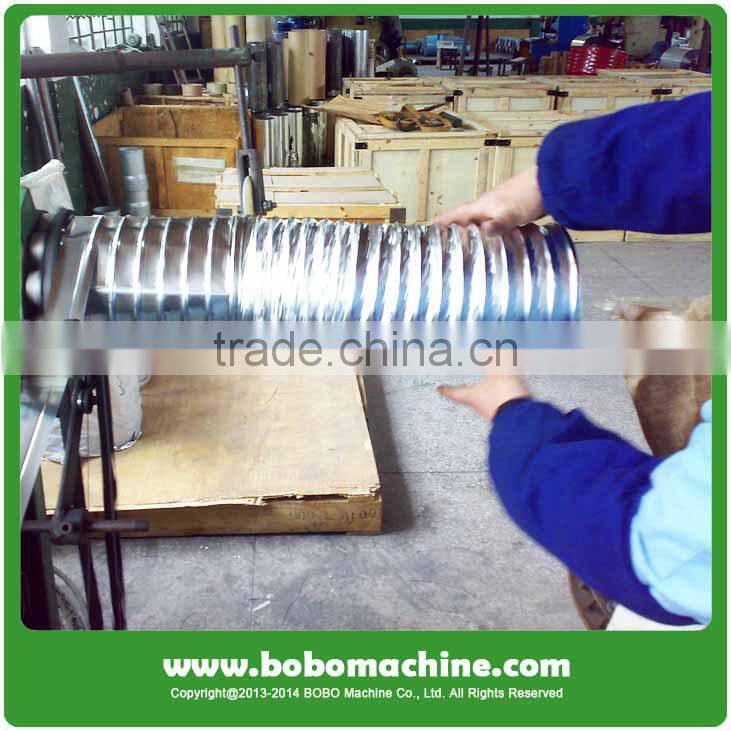

Spiral wire reinforced aluminum flexible duct forming machine
Product Description
The spiral wire reinforcement aluminum flexible duct forming machine is used to produce aluminum flexible ducts with aluminum foil or metalized PET film with or without steel wire reinforcement for ventilaion purpose.
Feature
- With or without steel wire for inner core pipe and outer jacket pipe
- Solvent base polyurethane glue for adhesive
- Device for insulation purpose is optional
Main technical data
| 1 | Diameter range | 80-600mm |
| 2 | Aluminum duct length | 1-10meter |
| 3 | Raw material size |
PET Film 0.012mm thick 35-55mm wide |
| 4 | Motor power | 1.5KW |
| 5 | Heating powe | 2.4KW |
| 6 | Work speed | 1-35m/min, adjustable |
| 7 | Heating temperature | 40-120 centigrade, adjustable |
| 8 | Dimension | 2200x820x1550mm |
| 9 | Weight | 500K |
| 10 | Accessories | Decoiler, moulds, etc |
