Spiral Air Duct Forming Machine
US$ 25,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
BOBO
Model Number:
BTF-II
Payment & Shipping
Payment Methods:
Port of Shipment:
Spiral air duct forming machine will shiped from Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Spiral Tube Former MachineUS$ 11,800 - 22,000MOQ: 1 Set -
Flexible Duct Making Machine With Fiberglass Reinforced Scrim FilmUS$ 4,000 - 20,000MOQ: 1 Set
-
Plastic and Aluminum Flexible Duct MachineUS$ 4,000 - 20,000MOQ: 1 Set
-
1500 Spiral Tube FormerUS$ 13,000 - 28,000MOQ: 1 Set
-
Spiral Duct FormerUS$ 10,000 - 30,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
BTF-II
Type
Ventilation

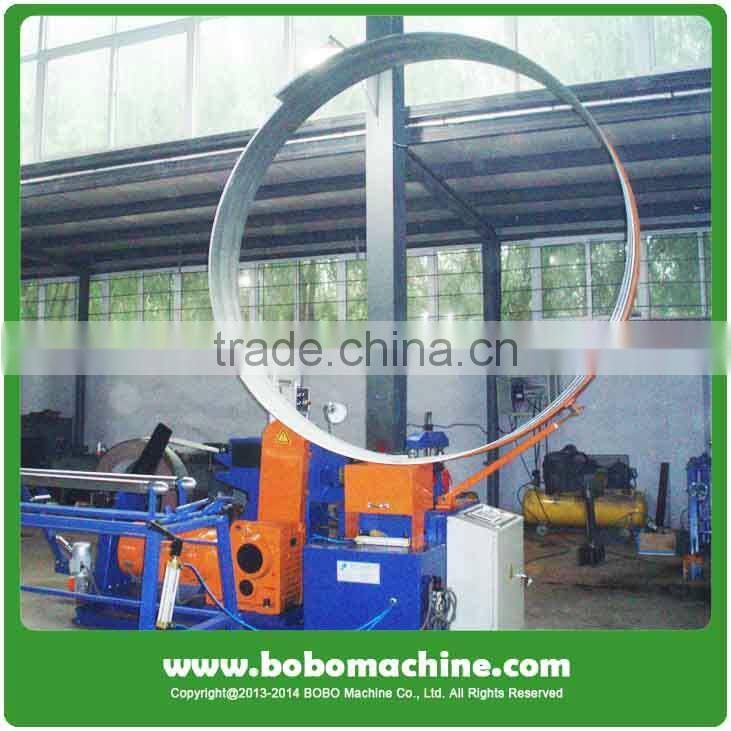

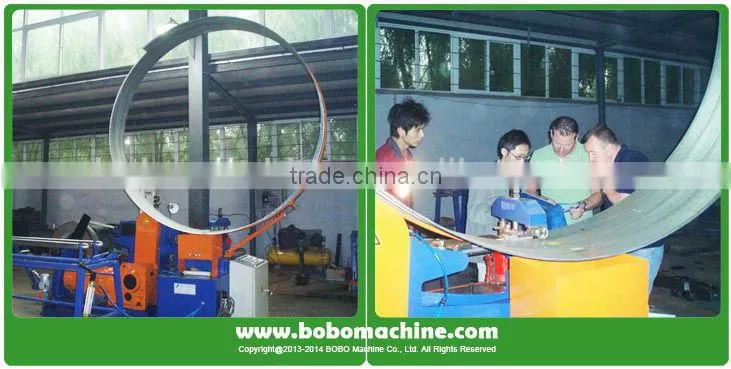

Spiral air duct forming machine

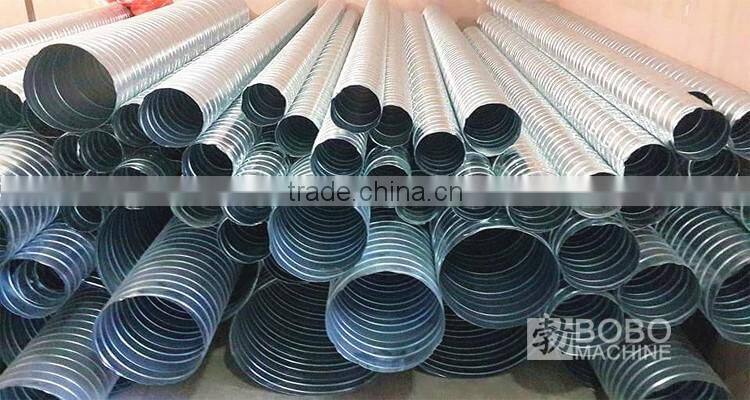

The spiral air duct forming machine BTF-2000 is used to produce the round rigid air duct for ventilation, drainage, posttension purpose, etc, diameter from 100-2000mm.
Feature of Spiral air duct forming machine
- Special aluminum alloy mould, light & long life
- Round roller shear, without noise and burrs
- Large diameter range
- PLC control, convenient operation
- Auto unloading rack, low labor cost
Main technical data of Spiral air duct forming machine
| 1 | Diameter | 100-2000mm |
| 2 | Thickness | 0.4-1.2-2.0mm |
| 3 | Strip width | 140-155mm |
| 4 | Strip feeding speed | 1-30m/min, adjustable |
| 5 | Suitable material | Galvanized steel, stainles steel |
| 6 | Main motor power | 15KW |
| 7 | Hydualic motor power | 4KW |
| 8 | Air compressor | 0.8MPa |
| 9 | Dimension | 3500 x 2800 x 2580mm |
| 10 | Weight | about 2500KG |
Key words: BTF-2000 spiral tubeformer, spiral duct forming machine, ventilationd duct machine, spiral tube former, spiral duct former, ventilationd duct machine, HVAC duct machine, air duct machine.
