flexible conduit machine
USD $9,000 - $25,000
/ Set
1 Set(Min.Order)
- 6 Set / Sets per Month
- The flexible conduit machine will be shipped from Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
cable outer casing hose machine
-
casing hose machine
-
HAVC spiro round galvanized duct tubeformer machine
-
HVAC Standing S&D cleat slip and drive lockformer and rollformer machine
-
HVAC round galvanzied air duct spiral tubeformer machine BTF-III
-
HVAC spiral round galvanized air duct forming and making machine
Product Details
| Condition | New | Type | Other, conduit forming machine | |
| Pipe Material | Carbon Steel | Application | Other, cable casing, control cable protection | |
| Production Capacity | 2-4m/min | Place of Origin | Jiangsu, China | |
| Brand Name | BOBO | Model Number | FX-I | |
| Voltage | 380V | Power(W) | 7.5kw | |
| Dimension(L*W*H) | 2200X1000X2000mm | Weight | 1400kg | |
| Certification | ISO | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
flexible conduit machine1- material from flat wire
2- diameter from 4-12mm
3- length:endless

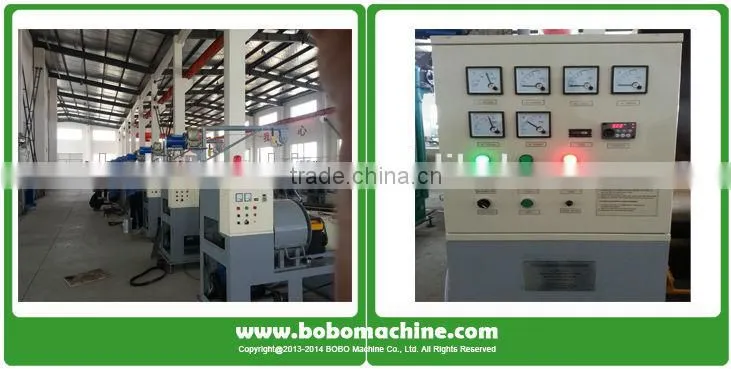

flexible conduit machine
The cable casing flexible conduit machine is used to produce flexible hose continuously. The outer casing hose is widely used for control cable, such as brake cable, clutch cable, throttle wire, etc. The inner plastic hose can be optional for different purpose.
Features of flexible conduit machine
- Equipped with inverter from Mitsubishi, Japan for main motor speed adjustment.
- Wire and inner hose feeding device has function option as “Manual” and “Automatic”
- Equipped with auto alarm and emergency stop function if no wire / inner hose feeding
- Equipped with electric crane for wire bobbin lifting up and down.
Main technical data of flexible conduit machine
1 | Flexible hose diameter | 4-12mm |
2 | Forming speed | 2.6m/min |
3 | Crane capacity | 120kg |
4 | Motor power | 3.75KW |
5 | Dimension | 2200 X 900 X 2000mm |
6 | Weight | 1500KG |
