Rolling Machine for Outer Cable
US$ 9,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, wire rolling machine
Pipe Material:
Carbon Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
The rolling machine for outer cable will be shipped from Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Extruding Machine for Cable Outer CasingUS$ 9,000 - 25,000MOQ: 1 Set -
Flexible Conduit Forming MachineUS$ 9,000 - 25,000MOQ: 1 Set
-
Flexible Conduit MachineUS$ 9,000 - 25,000MOQ: 1 Set
-
Cable Outer Casing Hose MachineUS$ 9,000 - 25,000MOQ: 1 Set
-
Casing Hose MachineUS$ 9,000 - 25,000MOQ: 1 Set
Condition
New
Type
Other, wire rolling machine
Pipe Material
Carbon Steel
Application
Other, cable casing, control cable outer casing wire rolling
Production Capacity
1.2m/s above
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
WF-200
Voltage
380V
Power(W)
3kw
Dimension(L*W*H)
2200X1000X2000mm
Weight
1400kg
Certification
ISO
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
rolling machine for outer cable1-for outer casing hose as raw material
2-with straightening device

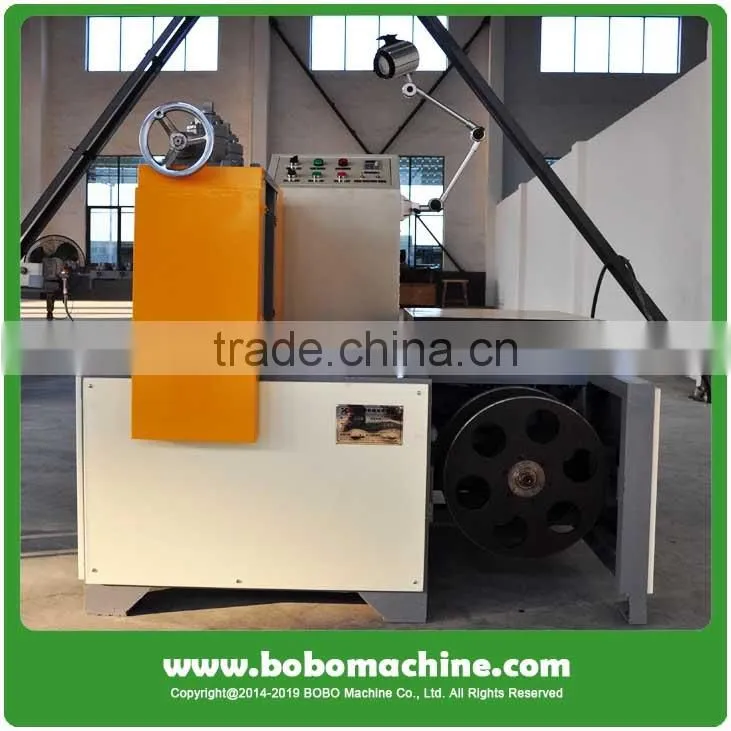

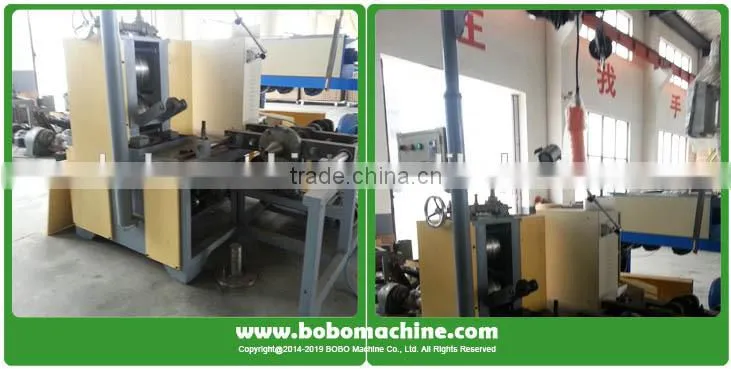

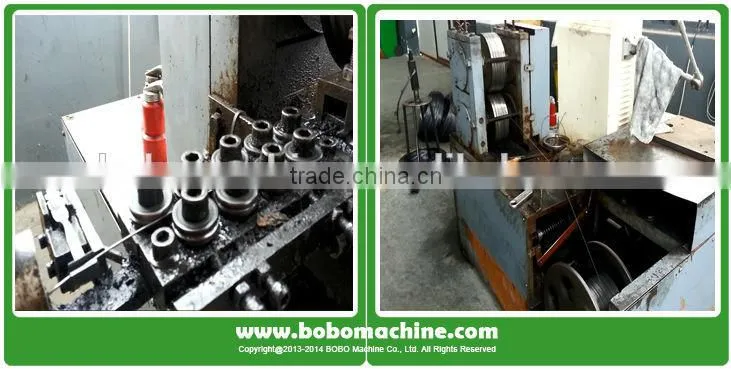

rolling machine for outer cable
The rolling machine for outer cable is used to flat steel wire into flat shape, which is suitable for outer casing hose purpose as raw material.
Features of rolling machine for outer cable
- Pressing roller is made from Cr12Mov, with heat treatment HRC≥59°
- Equipped with inverter from Mitsubishi, Japan for main motor speed adjustment
- Equipped with auto alarm and emergency stop function for wire feeding control
- Equipped with straightening device for wire feeding
- Equipped with water cooling system (Optional device)
Main technical data of rolling machine for outer cable
1 |
Max. wire diameter |
1.7mm |
2 |
Wire output speed |
1.2m/s above |
3 |
Pressing roller diameter |
200mm |
4 |
Wire flattening tolerance |
≤±0.01mm |
5 |
Bobbin capacity |
110kg |
6 |
Motor power |
3.0kw, 0-50Hz, 3Phase |
