Machine for flexible metal conduit
US$ 4,500 - 10,000
/ Set
1 Set(Min. Order)
- The Machine for flexible metal conduit will be shipped from Shanghai China.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Other, Machine for flexible metal conduit | |
| Pipe Material | Stainless Steel | Application | Other, Cable casing, shower hose | |
| Production Capacity | 2m/min | Place of Origin | Jiangsu, China | |
| Brand Name | BOBO | Model Number | FH series | |
| Voltage | 220/380/440V | Power(W) | 2.2-4.0KW | |
| Dimension(L*W*H) | 900X900X1200 mm | Weight | 600-1000KG | |
| Certification | ISO, CE | Warranty | one year since the date B/L. | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Machine for flexible metal conduit1- Single lock or double lock
2- Diameter up to 8 inch
3- Thickness up to 1.0 mm
Machine for flexible metal conduit
Product Description

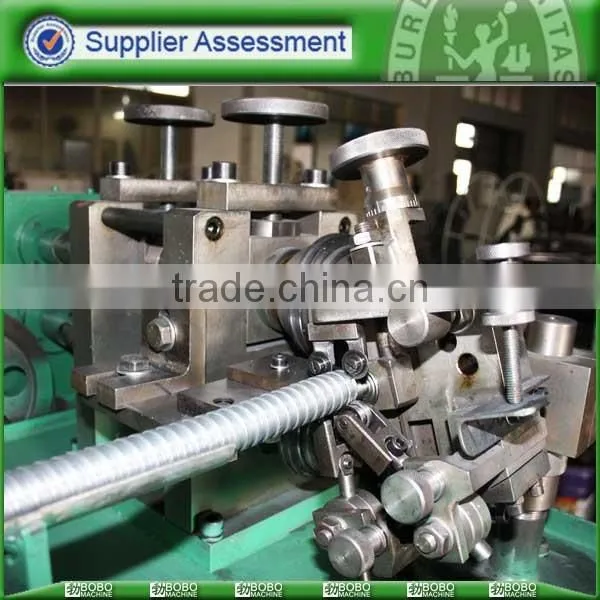

The Machine for flexible metal conduit is Continuously producing double or single swage steel flexible hose by using stainless steel or copper, iron, aluminum, etc. The finished flexible hose is widely used for sanitary hose, cable casing, etc.
Feature of Machine for flexible metal conduit
- Single or double for different flexibility
- Adjustable forming speed by invters
- Changeable moulds for different diameters
- High output capacity with lower noise
- Stable performance and easy maintenance.
Main technical data of Machine for flexible metal conduit
| 1 | Diameter Range | 3/8" to 8" |
| 2 | Strip width | 8-25mm |
| 3 | Strip thickness | 0.15-1.0mm |
| 4 | Forming speed | about 2m/min |
| 5 | Motor power | 2.2-3.5 KW x 2 |
| 6 | Dimension | 900 x 900 x 1200 (base on machine size) |
| 7 | Weight | 600-1000KG |
