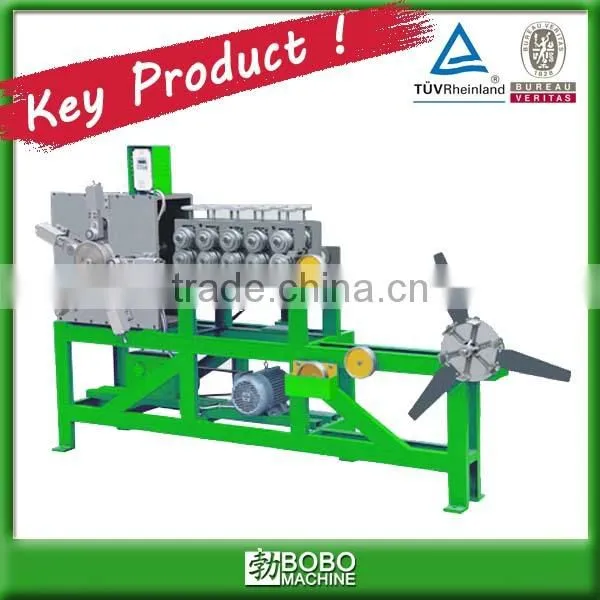

Flexible Steel Conduit Making Machine
US$ 5,000 - 12,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Flexible steel conduit making machine
Pipe Material:
Carbon Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
The Flexible steel conduit making machine will be shipped from Shanghai China.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Metal Flexible Conduit Forming MachineUS$ 4,500 - 9,000MOQ: 1 Set -
Cable Casing Conduit Forming MachineUS$ 4,500 - 9,500MOQ: 1 Set
-
Flexible Steel Conduit Pipe Making MachineUS$ 4,500 - 9,000MOQ: 1 Set
-
Metal Flexible Steel Conduit MachineUS$ 4,500 - 9,500MOQ: 1 Set
-
Flexible Steel Conduit Pipe MachineUS$ 4,500 - 9,000MOQ: 1 Set
Condition
New
Type
Other, Flexible steel conduit making machine
Pipe Material
Carbon Steel
Application
Other, Cable casing, sanitary hose, etc
Production Capacity
2-3m/min
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
FH series
Voltage
220/380/440V
Power(W)
2.2-4.0 KW
Dimension(L*W*H)
900X900X1200 mm
Weight
800-1200KG
Certification
ISO, CE
Warranty
one year since the date B/L.
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Flexible steel conduit making machine1- Interlock or square lock profile
2- Speed control by inverter
3- Easy mainteance
Flexible steel conduit making machine
Product Description
The Flexible steel conduit making machine is Continuously producing double or single swage steel flexible hose for sanitary hose, cable hose, etc. The raw material can be stainless steel or copper, iron, aluminum, etc.
Feature of Flexible steel conduit making machine
- High output capacity with lower noise
- Easy opreratoin and maintenance
- Stale performance for 24hours work
- Small volume for less space
Main technical data of Flexible steel conduit making machine
| 1 | Diameter Range | 10-150mm |
| 2 | Strip width | 8-25mm |
| 3 | Strip thickness | 0.15-0.35mm |
| 4 | Forming speed | about 2m/min |
| 5 | Motor power | 2.2 KW x 2 |
| 6 | Dimension | 900 x 900 x 1200 |
| 7 | Weight | 800-1200KG |
