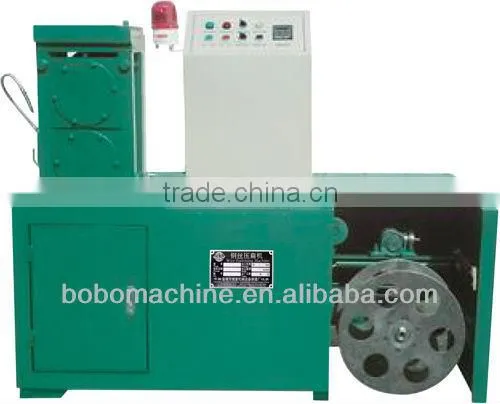

Wire Flattening Machine for Flexible Hose

Specifications

Flexible conduit machine for control cable casing.

The wire flattening machine is used to flat steel wire into flat shape, which is suitable for outer casing hose purpose as raw material.

Main techincal data

For flattening machine

1-       Model: WF-200

2-       Max. wire diameter: 1.7mm

3-       Wire output speed: 1.2m/s above

4-       Pressing roller diameter: 200mm

5-       Wire flattening tolerance: ≤±0.01mm

For winding machine

Machine assembling

Feature

1-       Equipped with inverter from Mitsubishi, Japan for main motor speed adjustment.

2-       Wire and inner hose feeding device has function option as “Manual” and “Automatic”

3-       Equipped with auto alarm and emergency stop function if no wire / inner hose feeding

4-       Equipped with electric crane for wire bobbin lifting up and down.

Machine testing

Machine package

Shipment: FOB Shanghai, China.

Payment term: 30% down payment by T/T, the balance by T/T against copy of B/L.

Delivery time: 30 days after receiving down payment.

Customer visit

In user's plant
