Metal flexible hose machine
US$ 4,000 - 10,000
/ Set
1 Set(Min. Order)
- The Metal flexible hose machine will be shipped from Shanghai China.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Other, hose forming machine | |
| Pipe Material | Stainless Steel | Application | Other, cable protection | |
| Production Capacity | 2m/min | Place of Origin | Jiangsu, China | |
| Brand Name | BOBO | Model Number | FH series | |
| Voltage | 380V | Power(W) | 2.2KW | |
| Dimension(L*W*H) | 1200X1200X900 | Weight | 600KG | |
| Certification | ISO, CE | Warranty | one year since the date B/L. | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Metal flexible hose machine1- interlock, double lock
2- Square lock, single lock
3- used for cable, shower, dust collecter.
Metal flexible hose machine
Product Description

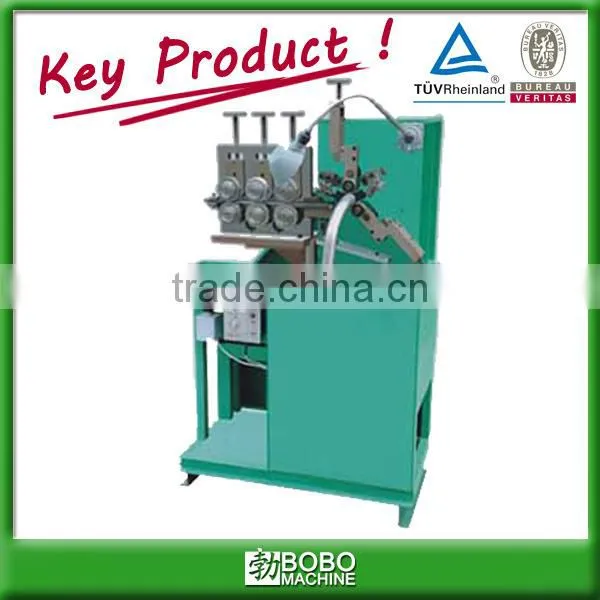

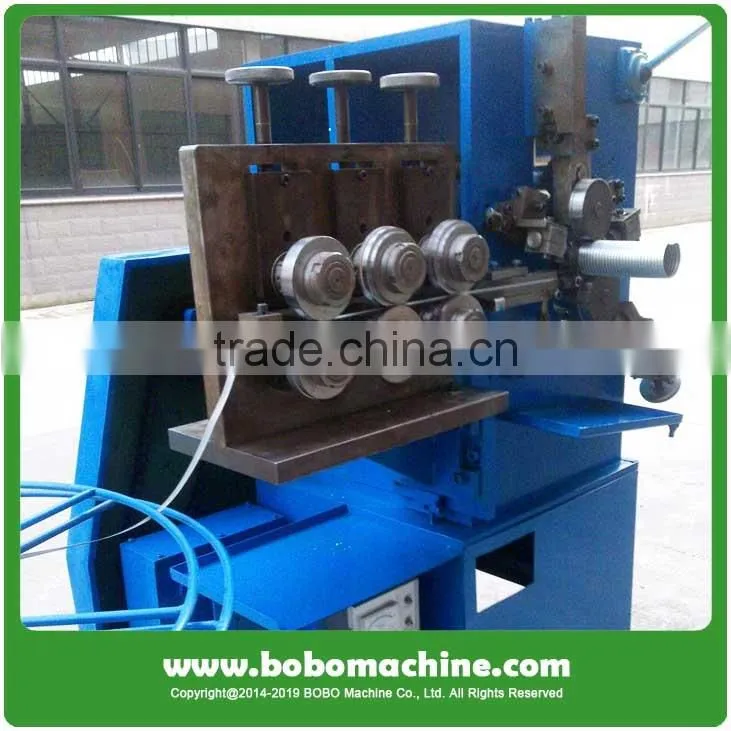

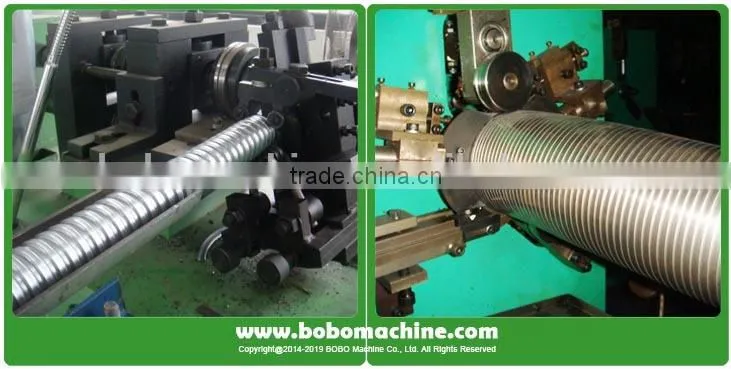

The metal flexible hose machine is Continuously producing double or single swage steel flexible hose by using stainless steel or copper, iron, aluminum, etc. The finished hose is widely used for sanitary purpose, cable protection, etc.
Feature of Metal flexible hose machine
- Single or double for different flexibility
- Adjustable forming speed by invter
- High output capacity with lower noise
- Stable performance and easy maintenance.
Main technical data of Metal flexible hose machine
| 1 | Diameter Range | 10-100mm (can be enlarge to 150mm) |
| 2 | Strip width | 8-25mm |
| 3 | Strip thickness | 0.15-0.35mm |
| 4 | Forming speed | about 2m/min |
| 5 | Motor power | 2.2 KW x 2 |
| 6 | Dimension | 950 x 850 x 1400 (base on machine size) |
| 7 | Weight | 600-1200KG |
