Specifications
CNC coil copper tube straightening and cutting machine1. auto decoiling
2. auto straightening
3. auto customized cutting

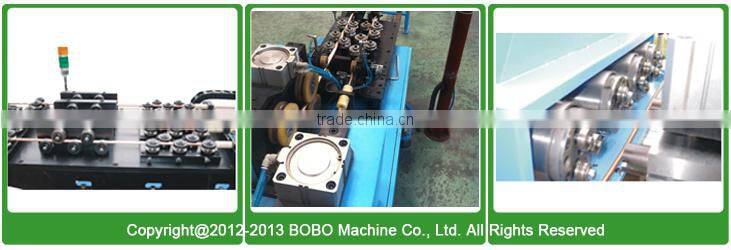

CNC COIL COPPER TUBE STRAIGHTENING AND CUTTING MACHINE
The CNC coil copper tube straightening and cutting machine is the special equipment for decoiling, straightening, and chipless cutting the coil copper tube. This machine adopts ac variable-frequency regulating speed technology and photoelectric coding length measurement technology. It is mainly applied in the areas of air-condition, water heater, airplane, automobile etc.
Features:
- Servo CNC, accurate locating stable feeding
- High degree of automation, convenient adjustment
- With snapping function, little shrinking of tube end
Main technical data
| 1 | Model | BO-SC4 |
| 2 | Tube diameter | Φ 4-20mm |
| 3 | Length error in each cutting | ≤ 0.5mm (L=1000) |
| 4 | Tube cutting length | 40mm-14000mm |
| 5 | Cutting tube number | 4 tubes (tube diameter can different, length are same) |
| 6 | Production efficiency | 7-8times/minute |
| 7 | Surface condition | There is no obvious pulling, scratching and pressing on tube surface |
1-Packing: professional export wooden box
2-Shipping:LCL/FCL, we have professional shipping department coordinate with customers on orders
1-Customized accordingly
2-Professional after service department
3-Testing service
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. Q: What is the payment term?
A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, D/A, D/P etc.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 40 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
6. Q: How to contact us?
A:Web:
Skype: wood-bobomachine
Cell:008613813647547
