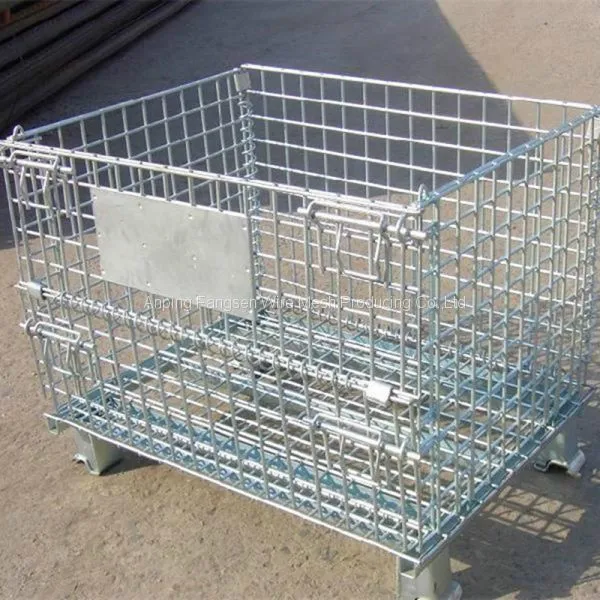

Folding and stack able storage cage/galvanized wire mesh container
Features of wire mesh container:
1. High quality steel hardened by cold-welded, high-strength, high load capacity.
2. Unified specification, fixed capacity, easy to stock inventory.
3. Adopt international standards, support the use of container, and effectively improve space utilization.

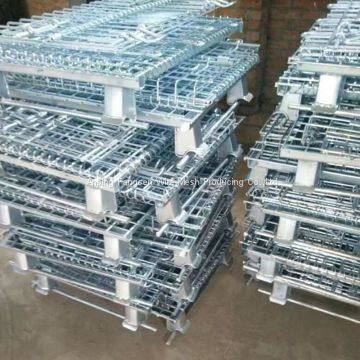

4. It can be stacked four high with each other, to achieve three-dimensional storage.
5. Galvanized surface treatment, do not pollute the environment.

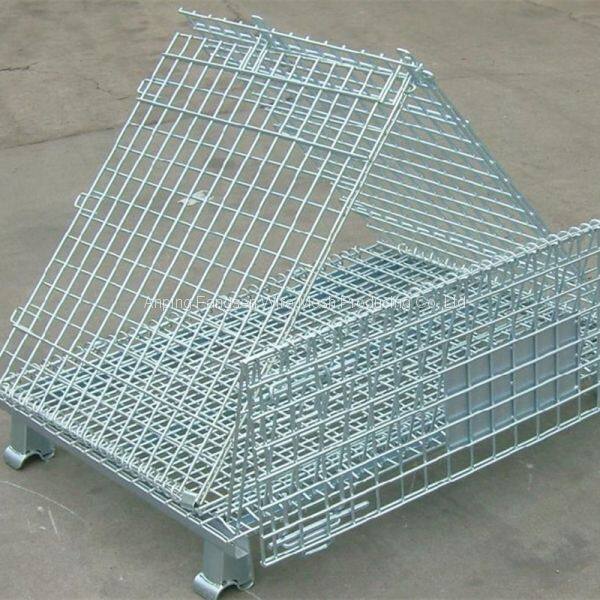

6. Folding structure, low cost recovery, is an alternative to wooden crates.

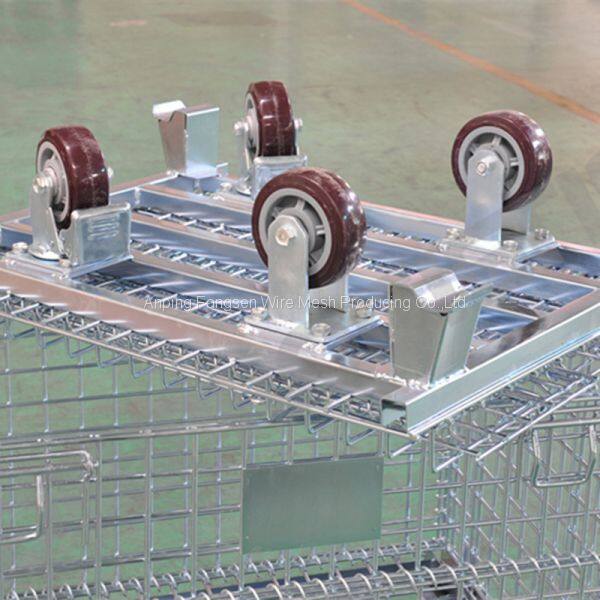

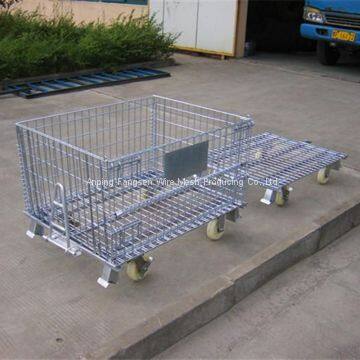

7. Can install wheel at the bottom, extremely convenient to move.
Application industry:
Storage cage can be widely used in various industries: die casting parts, forging parts, auto parts, motorcycle parts, metal stamping parts, engineering machinery parts, metal products, pipe fittings, gear, construction parts for bathroom equipment, lighting, furniture, toys, postal services, logistics, pharmaceutical logistics, business, catering, food, agricultural and sideline products, such as.
Production flow:
Main parts of storage cage mesh and chassis manufacturing.
Mesh by raw material Q235 or Q195 wire rod by drawing into wire diameter 5.8 and 6.2 multi thread, and then cutting into various lengths, after welding touched the net, manufactured semi-finished products mesh. Most mesh galvanized with spray treatment, corrosion of galvanized in spray. The line diameter is an important parameter of bearing.
The chassis consists of raw materials through processing plate bending machine, used 1.8 and 2.5, and then cutting, artificial welded steel. Chassis control is an important parameter.
Welding at the bottom of the screen piece and the bottom of the channel, there are two, one is manual welding, cannot guarantee the welding of each contact point; another is Shanghai enterprises commonly used full welding technology, channel steel and mesh for each contact point are through the machine welder, carrying stronger.
In the end, the mesh and the chassis are assembled by the spring and the back button.
Specifications of wire mesh container:
| Type | Wire(mm) | Mesh(mm) | Boundary dimension | Feet(mm) | Weight(kg) | Loading(mm) | ||
| L | W | H | ||||||
| FS-01 | 6.0 | 50X50 | 800 | 600 | 640 | 100 | 29 | 022 |
| FS-02 | 6.0 | 50X50 | 1000 | 800 | 840 | 100 | 45 | 052 |
| FS-03 | 6.0 | 50X50 | 1200 | 1000 | 890 | 100 | 60 | 084 |
| FS-04 | 6.4 | 50X50 | 1000 | 800 | 840 | 100 | 53 | 052 |
| FS-05 | 6.4 | 50X50 | 1200 | 1000 | 890 | 100 | 77 | 084 |
| FS-06 | 6.4 | 50X50 | 1000 | 800 | 500 | 100 | 38 | 026 |
| FS-07 | 6.4 | 50X50 | 1000 | 800 | 840 | 100 | 44 | 052 |
| FS-08 | 6.4 | 50X50 | 1200 | 1000 | 890 | 100 | 64 | 084 |
| FS-09 | 6.4 | 50X50 | 1550 | 1120 | 1000 | 100 | 116 | 1.56 |
| FS-10 | 4.8 | 50X50 | 800 | 500 | 540 | 100 | 22 | 0.15 |
| FS-11 | 4.8 | 50X50 | 1000 | 800 | 840 | 100 | 38 | 0.52 |
| FS-12 | 3.0 | 30X30 | 800 | 500 | 530 | 100 | 17 | 0.15 |
