YP-Q45 28kHz One-Piece Ultrasonic Cutter
YP-Q45 Ultrasonic Cutter is our old product.The blade can not be replaced.It is suit for cutting fiber,thin plastic products,rubber,paper,leather,PVC,PP,fabric and so on.
| Model | YP-Q45 |
| Frequency | 28 kHz |
| Output Power | 40 W |
| Size | Generator:300*320*120 mm Hand-piece: Φ 32*170 mm |
| Power Supply Cord | 1.5 m |
| Output Cord | 2 m |
| Foot Pedal with Switch Cord | 2 m |
| Detailed Design Work | Printed Circuit Boards | Film Material and Fabric | Other cuts |
| | | |
Easily cuts openings in plastic products or removes burrs or rough edges. Makes clean, even cuts through rubber or Styrofoam. | Makes precise cuts into patterns and printed circuit boards. Perfect for quick and accurate corrections. | Cuts synthetic and composite materials without fraying. Easily cuts aluminum and cork sheets. | The YP-Q45 can be used in a wide range of applications such as cutting paper, wood, food products, plaster, cable or in building scale models and other small detailed items. |

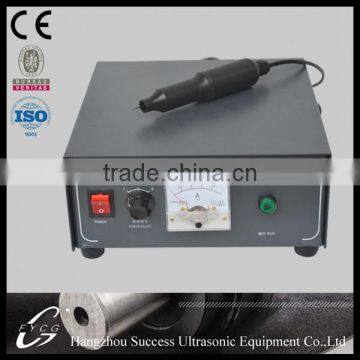

Compact Design
The handle, oscillator, foot switch, cord, and other components all fit into a compact aluminum case. This makes the YP-Q45 easy to carry and easy to store. The handle is light and easy to grip,enhancing operating ease.
Clean Cut
The tip of the blade generates 22,000 ultrasonic vibrations per second during cutting.
However, the operator does not feel any vibration as the YP-Q45 accurately follows the cut line
and effortlessly produces a clean, even cut.
Easy Operation
Simply turn on the switch and begin cutting. No other adjustments are necessary.Even a first-time operator can use it with ease.
Safe And Economical
Oscillation of the blade is turned on or off by the foot switch. This means that booth hands can be used for safe cutting control. And the responsive switch helps conserve electrical power, boosting economical operation.
EXAMPLES OF USE (time will depend on specific material. Values in the table are just for reference)
| Time to cut 3cm | Using YP-Q45 | Standard Cutter |
| Material | Thickness | Time(Seconds) | Material | Thickness | Time (Seconds) |
| Plastic Model | 1 mm | 2 | Leather Belt/Jacket | 1.5 mm | 8 |
| Plastic Model | 3 mm | 4 | Leather Suede type | 2 mm | 16 |
| Acrylic | 1 mm | 4 | Rubber Sticky/Viscous | 1 mm | 2 |
| Acrylic | 5 mm | 15 | Rubber Sticky/Viscous | 3 mm | 4 |
| PVC | 1 mm | 1 | Rubber Sticky/Viscous | 5 mm | 6 |
| PVC | 10 mm | 7 | Rubber CR (Polychloropren) | 1 mm | 3 |
| Polypropylene | 0.5 mm | 2 | Rubber CR (Polychloropren) | 3 mm | 3 |
| Teflon Tube | 1 mm | 2 | Rubber CR (Polychloropren) | 5 mm | 11 |
| Duracon | 5 mm | 2 | Butyl Rubber | 10 mm | 5 |
| Cardboard | 5 mm | 2 | Rubber NR *Natural Rubber) | 1 mm | 2 |
| Ice Cube | 2 mm | 2 | Rubber NR (Natural Rubber) | 8 mm | 4 |
- Hangzhou Success Ultrasonic Equipment Co.,Ltd is the leader of high-power ultrasonic equipment in China.
- Our company was founded in 1978.We have more than 30 years experiences.
- We have more than 20 engineers.They can make design scheme according to your requirements.
- Our piezoeletric ceramic disc are imported from Germany.The transducer have longer service life.
- Welcome to send us your sample.We have an open laboratory.It is free for making experiment.And we will take a video for you.
- We are specializing in high-power ultrasonic device and approved by CE, BV, ISO 9001.
- 24 hours technical supports and after-sales service
- Non-human damage, one year guaranteed exchange, three years warranty
