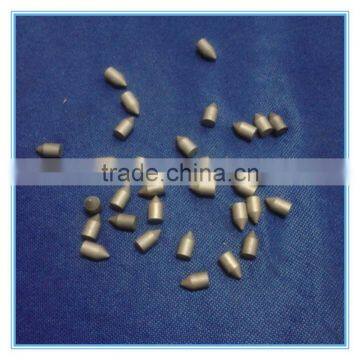

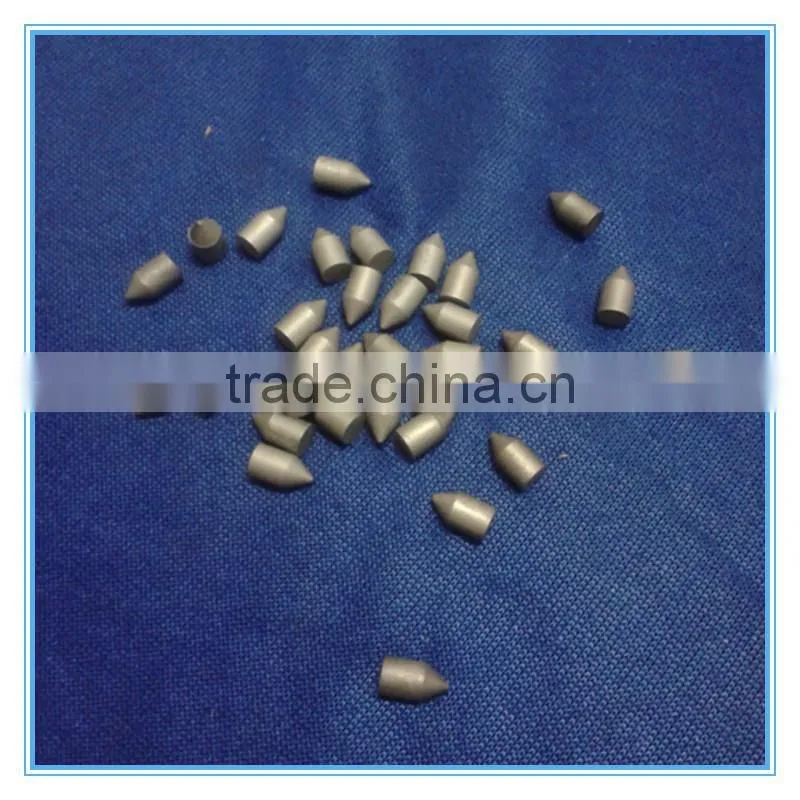

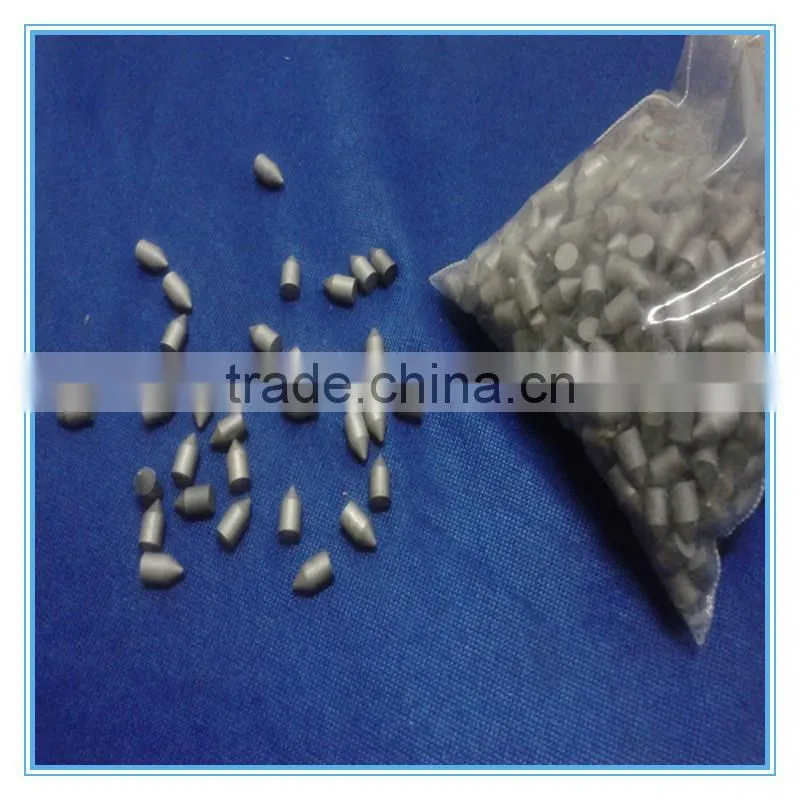

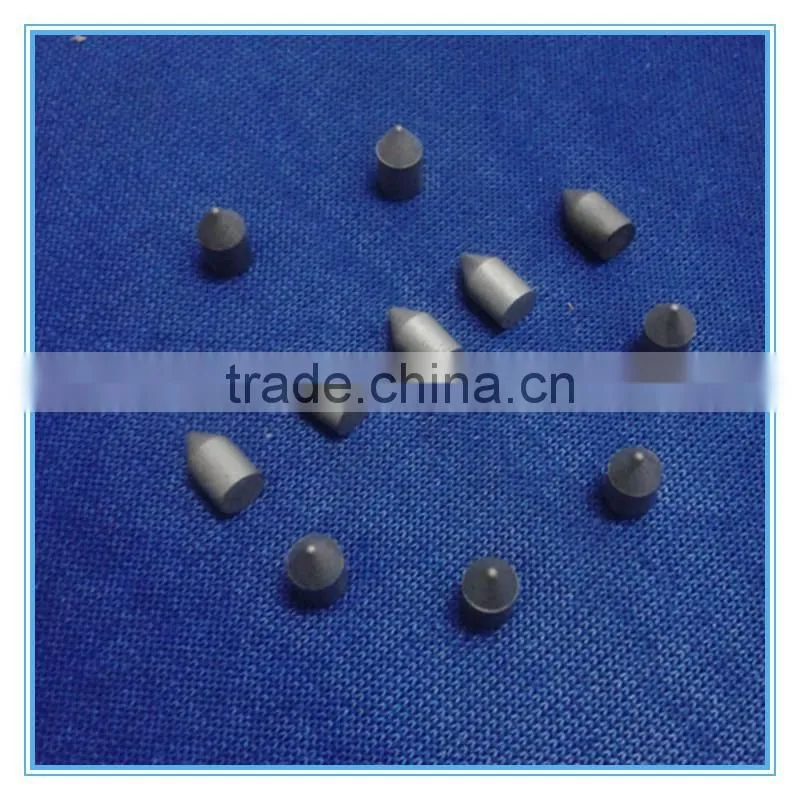

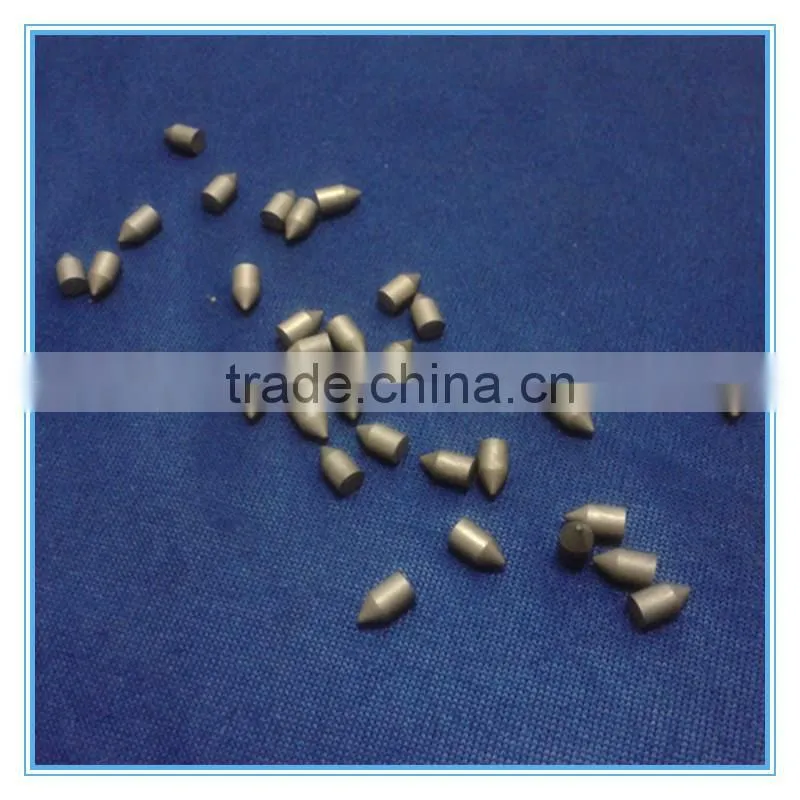

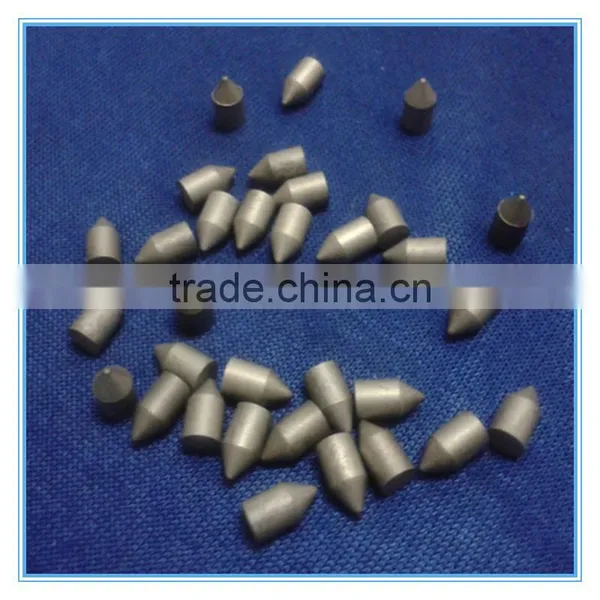

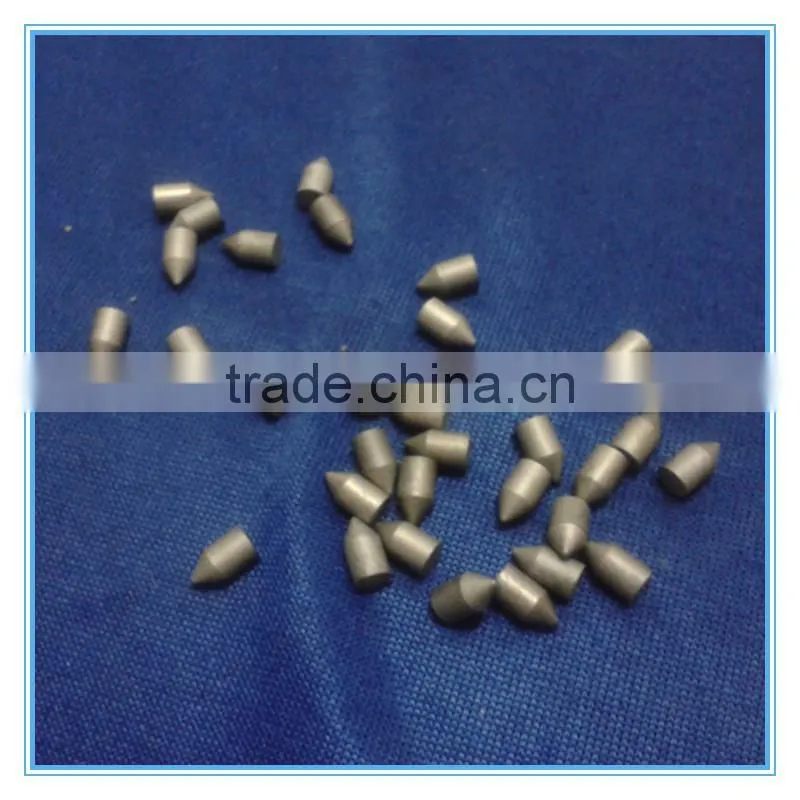

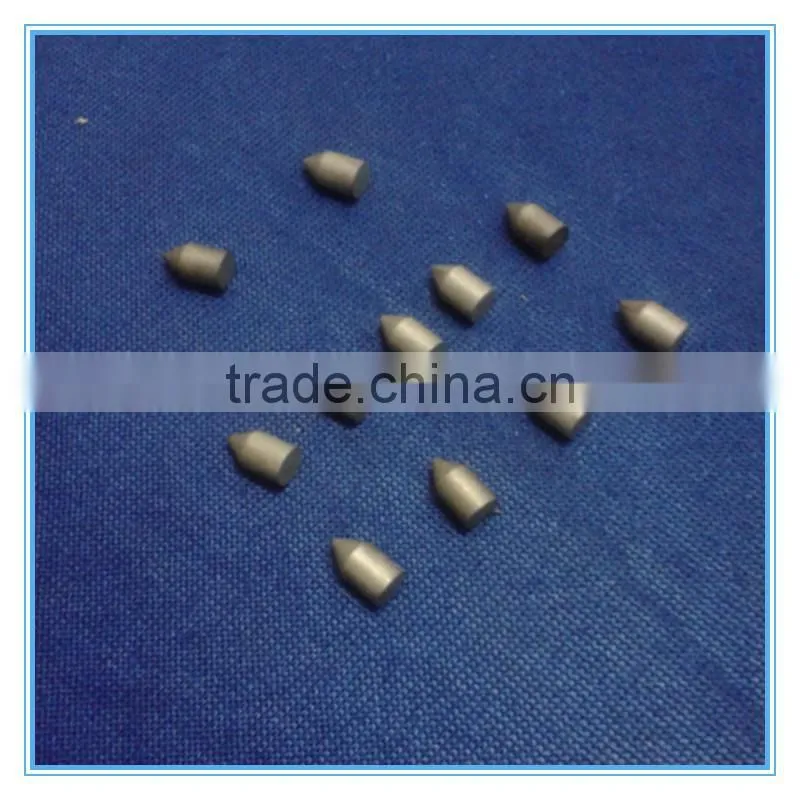

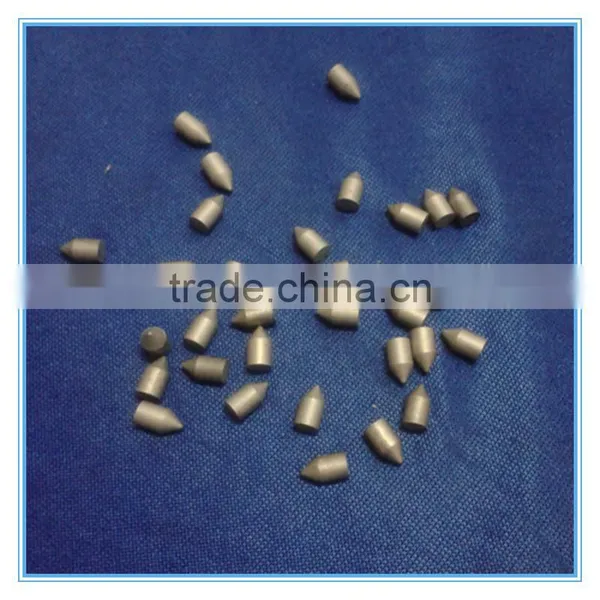

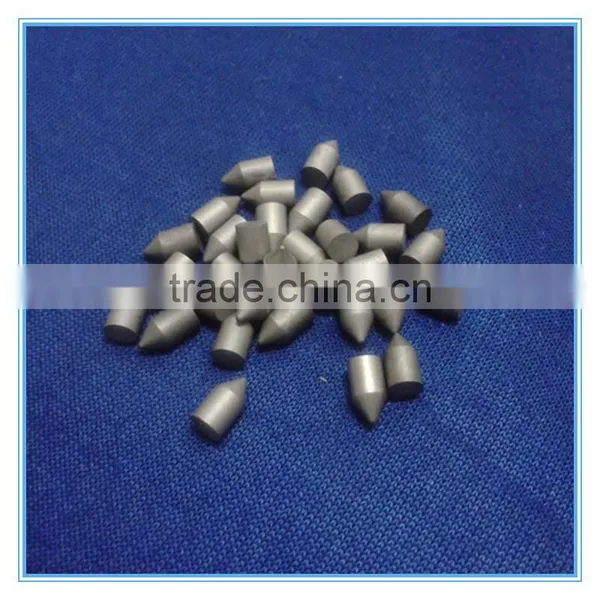

BilletTipped Center / Carbide Centre/YG6X Carbide-tipped

BilletTipped Center / Carbide Centre/YG6X Carbide-tipped

It's a machine part in mechanical processing, has fexed Center and Live Center two kinds .Tips is mainly composed of thimble, clamping device, casing, fixed pin, of bearing and spindle.Tips center hole can be top or at the end of the inner hole of the tube, the other end to the top surface is spherical or conical parts, leading by the clamping device is fixed.

Consists of three jaw self centering chuck or four jaw chuck link through fasteners on the shell, shell and spindle bearing, embedded with a fixed pin, whose character is the top end of the outer convex pointed cone and helical spline, and the other end is a hemispherical concave and tapered blind hole.

Corrosion resistance, long service life, excellent performance, high performance-to-price ratio, is not easy to wear

More than 90HRA

1. The small diameter, less tool, suitable for high speed, moderate cutting;

2. But also extend the service life of used oil on a regular basis;
3. Have certain waterproof function, integrity of easy heat dissipation;
4. Using slope and long needle roller bearing, three-point supporting arrangement structure strengthen rigidity, better stability

=14.89g/cm3

Could customized as per your tolerence, size & proportion of ingredients

When parts are not allowed or not centering, available clamping device clamp turning directly.Shell and the core shaft pin hole is drilled, with fixed pin pin into or remove, to realize the top anyway.Top can also be used for the workpiece and reaming drilling, set of teeth.

  TRS

 (N/mm2)

Universal grade ,widely used in machining tools for cast ion,nonferrous metals and their alloys and nonmetal materials,wear parts ,and tools foe machining other alloys.

Suitable for the semi-of hard cast iron,nonferrous metals and their alloys, and also suitable for the semi-finishing and of common cast iron and high manganese steel work-pieces and for othe tools

Mainly used for rock drilling,auger tips and well drilling tools and at the same time for drilling stone walls,cemented construction and installation work,and machining stone materials.

Mainly used for manufacturing strips and disc cutters and also for other tools

For manufacturing strips and also for other tools

Used for disc cutters and also for other tool

Suitable for the rough and of stainless steel, finishing of high strength steel sinishing and semi-sinishing of hardened steel ,and the machining of oron based heat resistant alloys and glass articles.
