Home > Products > Spray Nozzles > Square Stainless Steel Full Cone Spray Nozzle
Square Stainless Steel Full Cone Spray Nozzle
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ULIKE | |
| Model Number | BBS |
Product Description
Square Stainless Steel Full cone spray nozzle
Features :
1. Producing solid cone spray shape and 43-103 degrees spray angle, spray area is round
2.Spraying equally and producing medium to the big droplets under the wide range flows and pressures
3.The leaf blade design is its design mechanism, it owns big and unimpeded channel and advanced jet control.
3.The nozzle can play a very good effect in the jet application areas that need cover a region completely.
4. BB series metal nozzles for male thread connector, B series metal nozzles for female threaded connector.
5. BB and B-series have their own standard angles and extensive angles, special instructions for demanding other angles.
6.Material is option :SS ,Brass ,plastic as choice .
The spray pattern of solid cone nozzle
Performance Data:

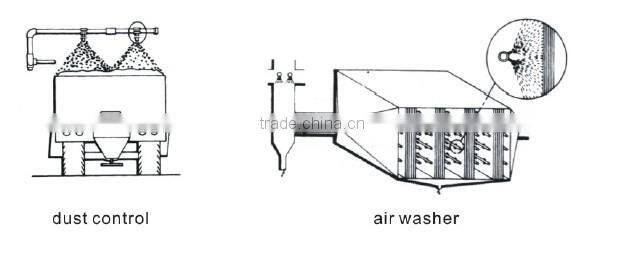

General applications of full cone nozzle:
Phosphating of metal parts
| Car rain test | |||||||||||||||||||
| High-pressure washing | |||||||||||||||||||
| PCB chemical cleaning | |||||||||||||||||||
| Silver plating in mirror manufacture | |||||||||||||||||||
| Net roller cleaning in paper mill | |||||||||||||||||||
| Beverage bottle washing in food industry | |||||||||||||||||||
| Removal of sulfur dioxide(SO2) | |||||||||||||||||||
| Control of nitric oxide(NOX) | |||||||||||||||||||
| Pipe and gas cleaning in tower | |||||||||||||||||||
| Steel continuous casting cooling | |||||||||||||||||||
| Waste gas washing | |||||||||||||||||||
| Quenching and cooling | |||||||||||||||||||
| Fire prevention | |||||||||||||||||||
| Eliminate dust control | |||||||||||||||||||
| Bubble removal | |||||||||||||||||||
| Spray application |
