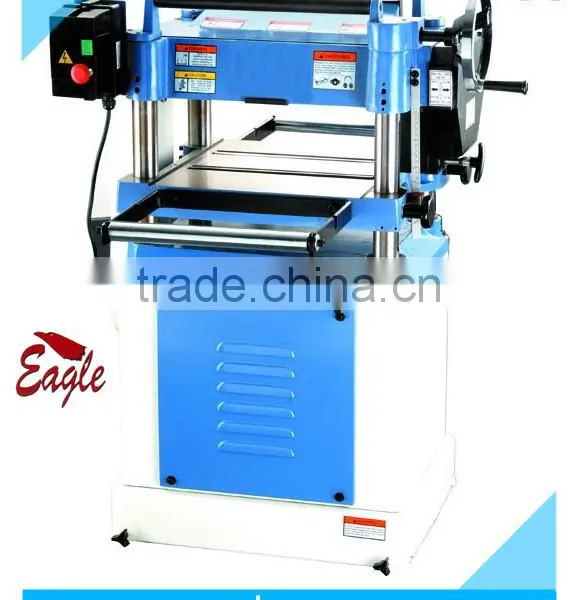

Wood Planer
Negotiable
/ Set
1 Set(Min. Order)
- qingdao
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Type | Bench Planer | |
| Place of Origin | Shandong, China | Brand Name | EAGEL | |
| Model Number | WP |
Product Description
Specifications
Wood Planer1.It's"motor-on-top"design saves you time by eliminating the need to move and outfeed rollers every time you make
| Wood Planer | ||||
| Features | 1.It's"motor-on-top"design saves you time by eliminating the need to move and outfeed rollers every time you make a cut. 2.Oil-bath gear box takes power for the feed rollers directly from the cutterhead. 3.Spiral serrated steel infeed roller and polyurethane outfeed roller keep stock moving smoothly and efficiently. 4.Four precision grounded columns provide rexta stability when raising and lowering the table. | 1.Piano key pressure mechanism with safety guard for maximum safety.Pressure pieces can be individually adjusted. 2.Ruggedly constructed machines frame gives superior operation stability. 3.Large,heavy table and bse for solid support of stock.Table surface is precision ground. 4.Anti-kickback fingers provided at infeed side to prevent stock kickback. 5.Convenient table height adjustment by a large handwheel.Enclosed fix slot ensure accurate workpiece thickness. 6.Spirl serrated steel infeed roller and plyurethane outfeed roller keep stock moving smoothly and efficiently. 7.Rugged,3 knife cutterhead is precision ground and dynamically balanced for smooth cutting . | 1.Table adjusts quickly and accurately with a handwheel through a positive gear drive system. 2.Cast-iron and steel construction for added stability and durability. 3.Steel feed rollers,serrated infeed and smooth outfeed,allow for 1/8"depth of cut. 4.Cutterhead features jackscrews with springs to make knife adjustment easy and accurate. 5.The gearbox features an automatic chain tensioner. 6.Two steel work returns rollers ontop of the machine to make transferring your wood back easier. 7.Table locks to assure no table movement while china is in use. | |
| Model | WP 400B | WP 400A | WP 400 | |
| Motor | upper: 3HP(2.2kw) / lower: 2HP(1.5kw) | 4HP(3.0kw) | 2.5HP(1.8kw) | |
| Cutterhead | Speed | 5000RPM 15000CPM / 4800RPM 14400CPM | 5000RPM 15000CPM | 5000RPM 15000CPM |
| Number of knives | upper: 3 / Lower: 3 | 3 | 3 | |
| Diameter | upper: 73mm / lower: 73mm | 73mm | 72mm | |
| Capacity | Minimum Thickness Capacity | 1/8"(3mm) | 1/8"(3mm) | 1.1mm |
| Maximum Width of Stock | 16"(604mm) | 16(406mm) | 16"(406mm) | |
| Maximum Depth of Cut | uper:1/4"(6mm) lower:1/12"(2mm) | 1/5"(5mm) | 4/25"(4.1mm) | |
| Maximum Stock Thickness | 6"(152mm) | 8"(204mm) | 8"(204mm | |
| Planning Width | 16"(406mm) | 16"(406mm) | 16"(406mm) | |
| Feed Rate | 16FPM,20FPM | 20FPM | 16FPM,20FPM | |
| Feed Rolls | Infeed Rolls | solid serrated steel | solid serrated steel | solid serrated steel |
| Outfeed Rolls | polyurethane | solid serrated steel | solid serrated steel | |
| Table size | L x W(mm) | 655x406 | 710x406 | 453x406 |
| Overall dia.(LxWxH)(mm) | 1300x920x1330 | 930x780x1230 | 1060x860x1090 | |
| Weight(kgs) | 350 | 320 | 229 | |
| Item No. | 321022 | 321021 | 321020 | |
| Standard Accessories | Knives-KNS16S | Knives-KNS16B | Knives-KNS16A | |
| Optional Accessories | Spiral Cutterhead-WRR0016S | Spiral Cutterhead-WRR0016B, Cast-Iron Extention Table | Spiral Cutterhead-WRR0016A, Digital Planning Height Read Out, Cast-Iron Extention Table | |
