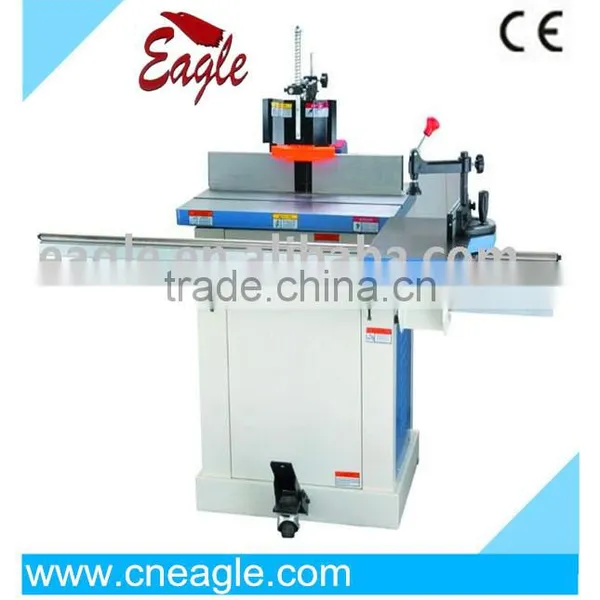

Wood Milling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
EAGEL
Model Number:
WM
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
EAGEL
Model Number
WM
Specifications
WOOD MILLING MACHINE1,Starting pins for irregular shaping.
2,Spindle lock allows quick,easy cutter set-up and removal.
| WOOD MILLING MACHINE | |||||
| Features | 1.Powerful 1HP motor delivers consistent performance. | 1.Powerful 1.5HP motors delivers smooth,consistent power on even heavy duty jobs. | |||
| 2.Starting pins for irregular shaping. | 2.Starting pin for irregular shaping. | ||||
| 3.Forward/Reverse switch for left and right hand operation. | 3.Two-speed step pulley drive lets you select the best speed and torque for different cutter diameters. | ||||
| 4.Spindle height adjustment lever lets you make fast and easy adjustment. | 4.Independent left and right fence for easy and accurate fence adjustment. | ||||
| 5.Adjustment work hold-downs mounted to fence secure your workpiece while shping. | 5.Spindle lock allows quick,easy cutter set-up and removal. | ||||
| 6.1/2" and 3/4" interchangeable spindles and router bit collets for use with shper cutterhead and router bits | 6.1/2" and 1/4" interchangeable spindle and router bit collets for use with shaper cutterhead and router bits. | ||||
| Model | WM 1220 | WM 1220A | WM 3090 | WM 3090A | |
| Motor | 3/4HP(550kw) | 1HP(750w) | 3HP(2.2kw) | ||
| Spindle | Capacity | 12.5mm(1/2") | 30mm(1-1/2") | ||
| Speed | 11000RPM | 3500RPM 7000RPM | |||
| Spindle Travel | 22.2mm | 90mm | |||
| Table | Length | 452mm | 610mm | 695mm | |
| Width | 395mm | 480mm | 555mm | ||
| Height from Floor | 865mm | 870mm | 865mm | 880mm | |
| Sliding Table | Length | / | 320mm | 500mm | |
| Width | / | 220mm | 260mm | ||
| Table Travel | / | 560mm | 1350mm | ||
| Fence Size (Each Side) | Length(mm) | 230x60x15 | 300x120x20 | ||
| Overall Diamensions | LxWxH(mm) | 500x600x1030 | 620x680x1030 | 870x970x1400 | 1680x1140x1400 |
| Weight(kgs) | 71 | 85 | 190 | 223 | |
| Item No. | 331012 | 331013 | 331014 | 331015 | |
| Standard Accessories | Miter Gauge ,Spindle Molder Knives Set | Miter Gauge, Spindle Molder Knives Set, Mobile Base | |||
