Electric Pallet Trucks

Name: Electric Pallet Trucks
Brand: EAGLE
SKU: 140925054
Availability: InStock

Eagle Industries, Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

Used

Place of Origin:

Shandong, China

Brand Name:

EAGLE

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition Used

Place of Origin Shandong, China

Brand Name EAGLE

Model Number CBD20H

Type Powered Pallet Truck

Power Souce DC Motor

Rated Loading Capacity 2000KG

Fork Length 1100/1150/1220mm

Fork Width 754mm

Certification CE

Specifications

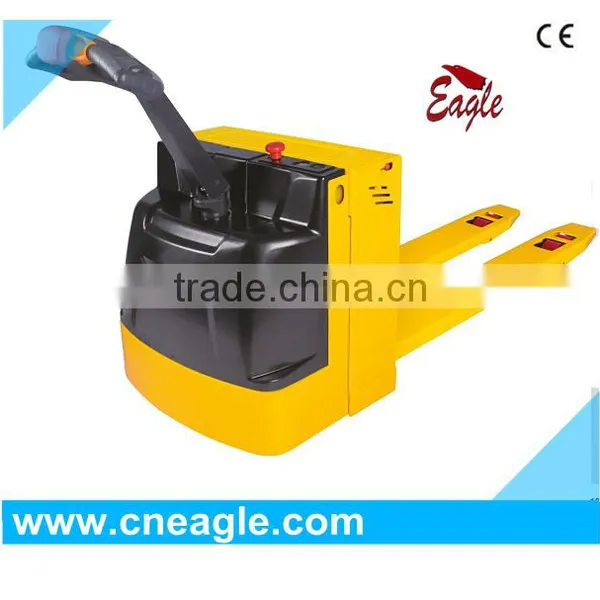

Electric pallet trucks
1.All of the products certificate: CE and GS
2.Capacity from 2000Kg
3.DC Brushless motor drive

Features

Load Capacity is 2000kg.
DC Brushless motor drive, which is convenient to control.
Mechanical steering
Service brake is combined regenerative and electromagnetic system, which allows safe and reliable brake and prolongs the use time.
Side-way battery with roll out system is very convenient to replace batteries.
The guide wheel on fork head allows convenient pallet work.
High efficiency motor keeps long time continuous work and is energy saving and environmental.
Travel speed under laden arrives at 5KM/H, the maximum gradeability can achieve 6%.
With nice looking, not exposed balanced wheel is more safe.
Vulnerable parts like fork wheel, bearing and cylinder is in common use with CBD20H, which is easy for maintenance.

Model		CBD20H
Drive type		Electric
Operation type		Standing
Load capacity	Q(kg)	2000
Load center	c(mm)	600
Load distance	x(mm)	800/850/920
Wheelbase	y(mm)	1200/1250/1320
Service weight(with battery)	kg	500
Tyres		polyurethane
Tyre size, front	mm	250x80
Tyre size, rear	mm	80x70

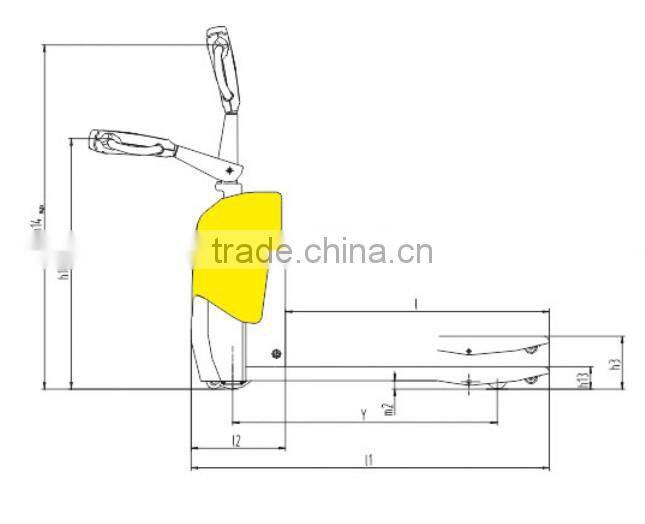

Max. lift height	h3(mm)	120
Initial lift	h14(mm)	850/1200
Fork height, lowered	h13(mm)	85
Overall length	l1(mm)	1695/1745/1815
Length to face of forks	l2(mm)	595

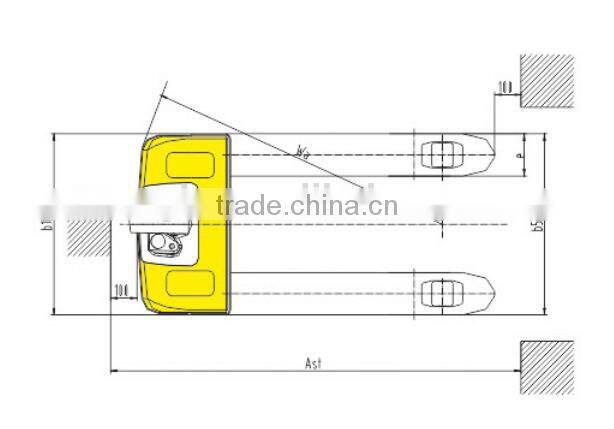

Overall width	b1(mm)	765
Fork dimensions	s/e/l(mm)	53/180/1100(1150/1220)
Width overall forks	b5(mm)	520/550/650/685
Ground clearance, centre of wheelbase	m2(mm)	28
Aisle width for pallets 1000x1200 crossways	Ast(mm)	1895/1945/2015
Aisle width for pallets 800x1200 crossways	Ast(mm)	1995/1995/2015
Turning radius	Wa(mm)	1400/1450/1520
Travel speed, laden/unladen	Km/h	5/5.1
Lift speed, laden/unladen	m/s	0.03/0.04
Lowering speed, laden/unladen	m/s	0.05/0.045
Gradeability, laden/unladen	%	41769
Service brake		Regenerative+ Electromagnetic
Battery voltage, nominal capacity K5	V/Ah	24/165(210)
Battery weight	kg	170 (196)
Battery dimensions l/w/h	mm	750x170x474(534)
