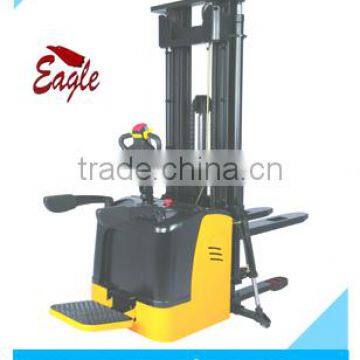

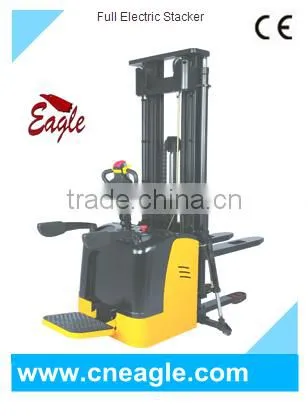

Full Electric Stacker

Name: Full Electric Stacker
Brand: EAGLE
SKU: 140925058
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

EAGLE

Eagle Industries, Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name EAGLE

Model Number CDDK20

Type Powered Pallet Truck

Power Souce AC Motor

Rated Loading Capacity 2000KG

Max. Lifting Height 2500/3000/3300/3500/ 4500/5000/5600mm

Fork Length 60/180/1070/1150mm

Fork Width 570/695mm

Certification CE

Specifications

Full Electric Stacker
1.All of the products certificate: CE and GS
2.Capacity from 2000Kg
3.AC Motor

Features

Model	CDDK20
Drive type	CDDK20
Operation type	Standing
Load capacity Q(kg)	2000
Load center c(mm)	600
Load distance x(mm)	672
Service weight (with battery) kg	1550
Tyres	Polyurethane
Height, mast loweredH1	1735/1985/2135/2235/2050/2210/2410
Free lift (option)H2	1300/1550/1700/1800/1570/1740/1940
Max. lift height h3(mm)	2500/3000/3300/3500/4500/5000/5600
Height, mast extended	2955/3455/3755/3955/5030/5510/6110
Initial lift h14(mm)	1150/1450
Fork height, lowered h13(mm)	90
Overall length l1(mm)	2020/2100
Overall width b1(mm)	850
Fork dimensions s/e/l(mm)	60/180/1070(1150)
Aisle width for pallets 1000×1200 crossways Ast(mm)	2535
Aisle width for pallets 800×1200 crossways Ast(mm)	2515
Turning radius Wa(mm)	1655
Travel speed, laden/unladen Km/h	5.8/6
Lift speed, laden/unladen m/s	0.09/0.11
Lowering speed, laden/unladen m/s	0.12/0.11
Service brake	Electromagnetic
Drive motor capacity kW	1.5(AC)
Lift motor capacity kW	3
Battery voltage, nominal capacity K5 V/Ah	24/300
Battery weight kg	300
