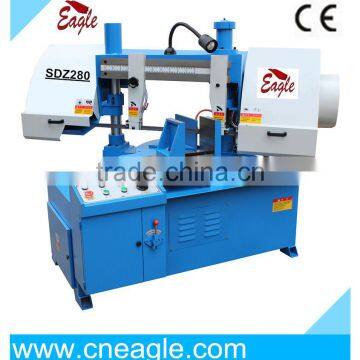

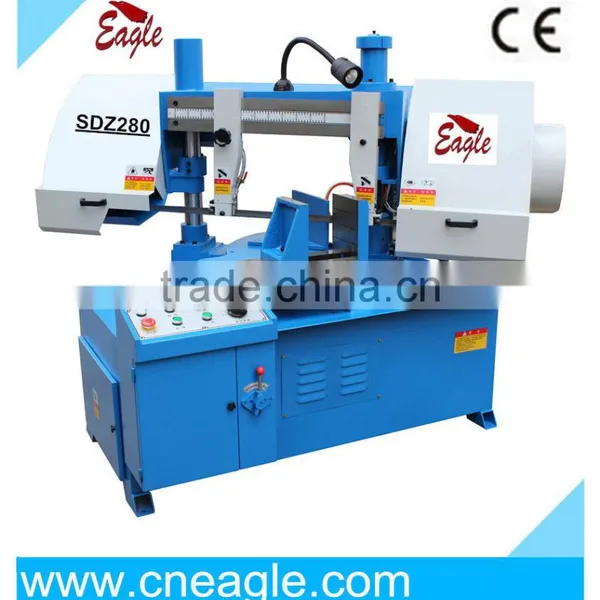

DOUBLE COLUMN HORIZONTAL BAND SAW SDZ280
- QINGDAO
- D/P D/A
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | EAGLE | Model Number | SDZ280 | |
| Voltage | 220V | Rated Power | 2.2 | |
| Dimension(L*W*H) | 1900*1400*1500 | Weight | 700KG | |
| Certification | CE | Warranty | One Year |
Product Description
Extremely rigid dual-column cast-rion construction with heavy swivel console.
Three cutting speeds-directly shifted via main drive motor
Infinitely variable saw frame feed
Horizontal saw frame swivels up to 45 °
Saw frame automatically returns to home position at the end of each cut
Extra rigid,adjustable saw blade guide
Including hydraulic workpiece clamping with clmping pressure control
Standard equuipment:hydraulic workpiece clamping.1 saw blade belt, material support stand,
coolant system,wotk lamp ,operator manual
Optional equipment:automatic blade breakage control,fast frop protection device ,hydraulic blade tension,
automatic chop removal device,various blade linear speed,blade protection covers,wheel cover opening
protection,CE standard elecrtical equipment
| Specification | SDZ280 | ||
| cutting capacity 90° | rectangular | mm | 320×280 |
| circular | mm | 280 | |
| square | mm | 280 | |
| cutting capacity 45° | rectangular | mm | 280×240 |
| circular | mm | 200 | |
| square | mm | 200 | |
| cutting capacity 30° | rectangular | mm | 280×240 |
| circular | mm | 240 | |
| square | mm | 240 | |
| linear speed | m/min | 27,45,69 | |
| blade size | mm | 3505×27×0.9 | |
| main motor power | kw | 2.2 | |
| hydrauic motor power | kw | 0.55 | |
| coolant pump motor power | kw | 0.04 | |
| overall dimensions | mm | 1900×1400×1500 | |
| machine weight | kg | 700 | |
| Item No: | 213021 |
