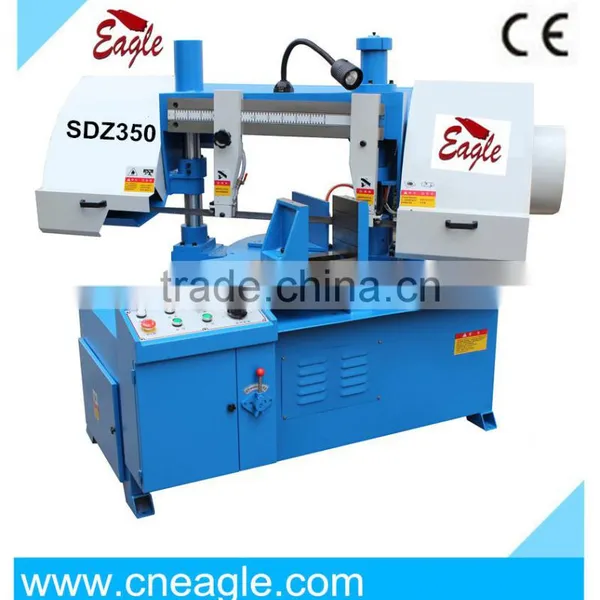

Help CenterDOUBLE COLUMN HORIZONTAL BAND SAW SDZ350
Related Products
Extremely rigid dual-column cast-rion construction with heavy swivel console.
Three cutting speeds-directly shifted via main drive motor
Infinitely variable saw frame feed
Horizontal saw frame swivels up to 45 °
Saw frame automatically returns to home position at the end of each cut
Extra rigid,adjustable saw blade guide
Including hydraulic workpiece clamping with clmping pressure control
Standard equuipment:hydraulic workpiece clamping.1 saw blade belt, material support stand,
coolant system,wotk lamp ,operator manual
Optional equipment:automatic blade breakage control,fast frop protection device ,hydraulic blade tension,
automatic chop removal device,various blade linear speed,blade protection covers,wheel cover opening
protection,CE standard elecrtical equipment
| Specification | SDZ350 | ||
| cutting capacity 90° | rectangular | mm | 380×350 |
| circular | mm | 350 | |
| square | mm | 350 | |
| cutting capacity 45° | rectangular | mm | 350×280 |
| circular | mm | 280 | |
| square | mm | 280 | |
| cutting capacity 30° | rectangular | mm | 350×300 |
| circular | mm | 300 | |
| square | mm | 300 | |
| linear speed | m/min | 27,45,69 | |
| blade size | mm | 4115×34×1.1 | |
| main motor power | kw | 3 | |
| hydrauic motor power | kw | 0.55 | |
| coolant pump motor power | kw | 0.04 | |
| overall dimensions | mm | 2100×1500×1600 | |
| machine weight | kg | 850 | |
| Item No: | 213022 |
