Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > Industrial Drilling Machine for Sale
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
CNC or Not
Normal
Place of Origin
Shandong, China
Brand Name
Eagle
Certification
CE
Specifications

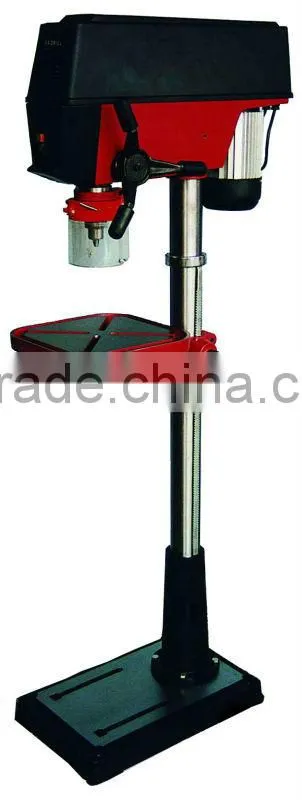

Industrial Drilling MachineIndustrial Drilling Machine
Specification
| Model | DX 13 | DX 16 | DX 20 | DX 25 | DX 25A | DX 25B |
| Motor(W) | 180/250 | 550 | 550/650 | 1100/1500 | 750/1100 | 1100 |
| Swing (mm) | 210 | 330 | 356 | 460 | 432 | 432 |
| Chucksize (mm) | 1.5-13 | 3-16 | 3-16 | 3-16 | 3-16 | 3-16 |
| Max drilling capacity(mm) | 13 | 16 | 20 | 25 | 25 | 25 |
| Taper | JT33/B16 | MT2 | MT2 | MT3 / MT4 | MT3 / MT4 | MT3 |
| Spindle travel(mm) | 50 | 80 | 80 | 120 | 120 | 80 |
| No of speed | 5 | 12-16 | 12-16 | 10 | 12 | Variable |
| Horizontal arm travel(mm) | / | / | / | / | / | / |
| Speed range(rpm)/50Hz | 600~2500 | 210~2580/210~3340 | 120~2580/120~3000 | 150-1920 | 150-2700 | 280-2600 |
| Speed range(rpm)/60Hz | 620~3100 | 250~3050/250~4000 | 140~3050/140~3600 | 180-2300 | 180-3240 | 330-3120 |
| Overall height(mm) | 735 | 1580 | 1630 | 1670 | 1700 | 1700 |
| Packing size(mm) | 680x400x190 | (Head) 820x500x300 | (Head) 840x570x290 | 900×610×670 | 1440×650×320 | 1440×650×320 |
| (Column)1430X170X170 | (Column)1430X170X170 | 1100×230×210 | ||||
| N.G weight (kgs) | 27/26 | (Head) 53/59 | (Head) 68/72 | 245/297 | 128/138 | 100/110 |
| (Column) 17/19 | (Column) 20/22 | |||||
| Units/20"container | / | / | / | 60 | 90 | 90 |
| Item No. | 411044 | 411046 | 411048 | 411050 | 411052 | 411054 |
| *Model DX 25 :Two-speed powerful motor,Pump cooling system optional,Inclination table, Working lingt optional. | ||||||
| *Model DX 25B: Variable speed | ||||||
DX13
DX16
DX20
DX 25
DX25A
DX25B
