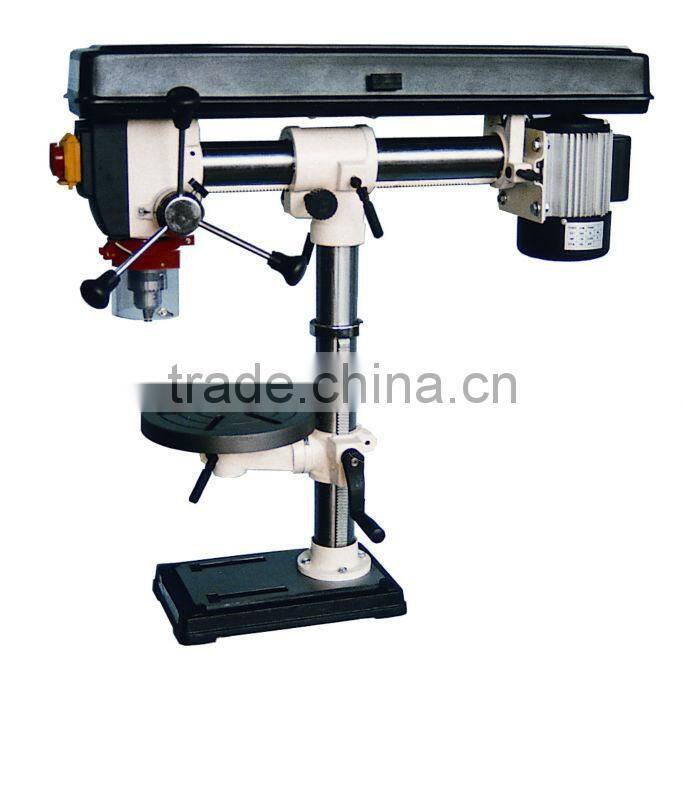

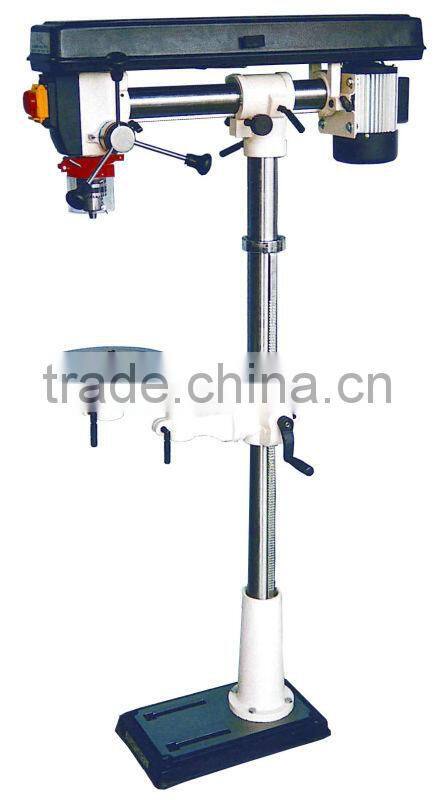

Industrial Drilling Machine

Name: Industrial Drilling Machine
Brand: EAGLE
SKU: 140924630
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

Used

CNC or Not:

Normal

Place of Origin:

Shandong, China

Eagle Industries, Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition Used

CNC or Not Normal

Place of Origin Shandong, China

Brand Name EAGLE

Model Number DX

Specifications

Industrial Drilling Machine

Specification

Model	DXV 16	DXV 16A	DXS 20	DXS 25
Motor(W)	370/550	370/550	550	750
Swing (mm)	840	840	1100	1175
Chucksize (mm)	3-16	3-16	3-16	3-16
Max drilling capacity(mm)	16	16	20	25
Taper	B16/MT2	B16/MT2	MT2	MT3
Spindle travel(mm)	80	80	80	80
No of speed	5	5	12	12
Horizontal arm travel(mm)	320	320	/	/
Speed range(rpm)/50Hz	460-2890	460-2890	120~2580	120~2580
Speed range(rpm)/60Hz	550-3470	550-3470	140~3050	140~3050
Overall height(mm)	790	1630	1000	1000
Packing size(mm)	900×460×320	1420x500x260	1070×800×480	1070×800×480
Packing size(mm)	900×460×320	1420x500x260	1070×800×480	1070×800×480
N.G weight (kgs)	37/40	61/65	163/208	173/218
N.G weight (kgs)	37/40	61/65	163/208	173/218
Units/20"container	220	159	70	70
Item No.	411060	411062	411064	411066
*Model DXV : Horizontal drilling
*Model DXS : Head tills 360 degree,Large base with 24" long slots,Extra heavy ball bearing spindle
