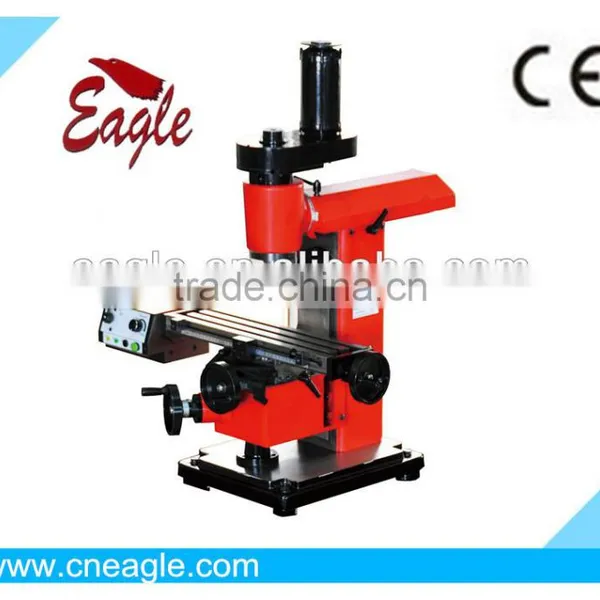

Universal Milling Machine

Name: Universal Milling Machine
Brand: Eagle
SKU: 140924632
Availability: InStock

Eagle Industries, Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

Used

Place of Origin:

Shandong, China

Brand Name:

Eagle

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition Used

Place of Origin Shandong, China

Brand Name Eagle

Model Number UM16

Type Universal

CNC or Not Normal

Voltage 220V

Power(W) 350W

Dimension(L*W*H) 590*870*700mm

Weight 95/115kg

After-sales Service Provided No overseas service provided

Specifications

Universal milling machine
Knee type table construction with precision ground surface

Key feature:

Specification

Specifications	UM16
End mill capacity	16 mm
Face mill capacity	30 mm
Table longitudinal travel(X)	300 mm
Table cross travel(Y)	90 mm
Spindle box travel(Z)	105 mm
Longitudinal milling tilting angle	45°L, 45°R
Spindle taper	MT3 or R8
Motor output power	350 W
Spindle speed (Variable speed)	0-2000 rpm
Max. sawing cutter diameter	ø63
Table effective size	460x120 mm
Overall size (LxWxH)	590x870x700 mm
Weight (Net/Gross)	95/115 kg
Packing size (LxWxH)	860x870x700 mm
Model	UM16
Item Number	100125

Standard attachment

Horizontal milling attachment

13mm drillchuck

Wrtnch set

Oil can

OPTIONAL ACCESSOTIES

S/N:10094	Rotary table 100mm
S/N:10036	Quick vice 100mm
S/N:10190	3-jaw chuck 80mm
S/N:10010	4-jaw chuck 80mm
S/N:10094-2	Tailstock for S/N:10094
S/N:10046	Indexable carbide end mill Ø30mm
S/N:10037	MT3 Mill chuck set(metric)
S/N:10037	Chuck dia.4, 6, 8, 10, 12, 14, 16mm
S/N:10047	Clamping kit 42 pcs
S/N:10047	Include: 12 studs, 6 steo block pairs, 4 T nuts, 4 flange nuts, 4 coupling nuts, 6 end holddowns
S/N:10113	Indexable carbide end mill Ø50mm
S/N:10045	2 Flute Hss end mill
S/N:10045	4-16mm
S/N:10126	Collet MT3 4-16mm
S/N:10215	Milling cutter 63*3
S/N:10216	Milling cutter 50*4
S/N:10217	Saw tooth milling cutter 50*M1
S/N:10218	Saw tooth milling cutter 50*M1.25
S/N:10219	Stand
S/N:10030	Digital spindle speed readout
