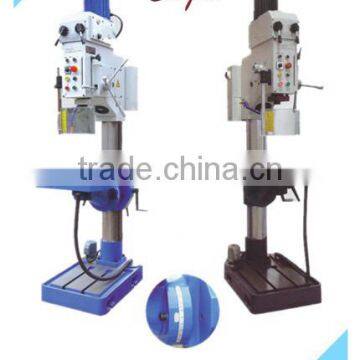

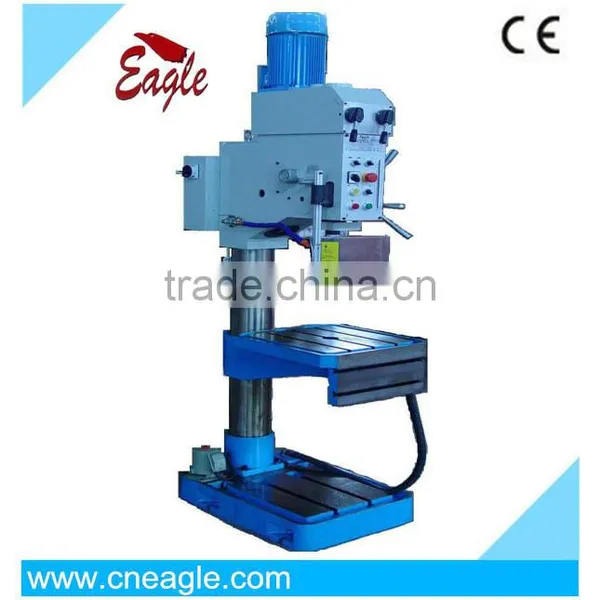

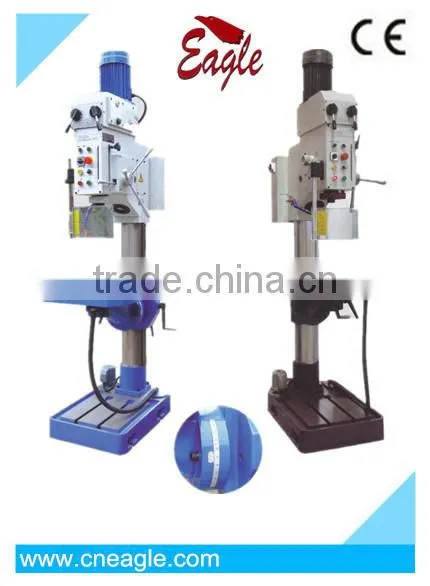

GEARED HEAD DRILLING MACHINE
US$ 2,000 - 3,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Drilling Speed:
50-1450rpm
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Universal Milling MachineNegotiableMOQ: 10 Sets -
UM 33&UM 33A Series Universal Turret Milling MachineNegotiableMOQ: 1 Set
-
UM 23A&UM 23B Series Universal Turret Milling MachineNegotiableMOQ: 1 Set
-
Universal Swivel Head Milling MachineNegotiableMOQ: 1 Set
-
Industrial Drilling Machine DX-13NegotiableMOQ: 1 Set
Condition
New
CNC or Not
Normal
Drilling Speed
50-1450rpm
Place of Origin
Shandong, China
Brand Name
Eagle
Model Number
DVX40
Voltage
380V
Power(W)
0.85/1.5kw
Dimension(L*W*H)
2270*690*1100mm
Weight
510/650KG
Certification
CE
After-sales Service Provided
No overseas service provided
Specifications
2 speed strong power motorAutomatic tools ejectors
2 steps power feed 0.1-0.2mm/rev
Drilling,tapping
GEARED HEAD DRILLING MACHINE
2 speed strong power motor
Automatic tools ejectors
2 steps power feed 0.1-0.2mm/rev
Drilling,tapping
The detailed explanation for the model
DVX40 (Machinery power feed)
DVX40E (Electronic power feed)
DVX40T (Machinery power feed and Table can be tilted 90 degrees)
DVX40ET (Electronic power feed and Table can be tilted 90 degrees)
DVX40L(Table with the vertical plane)
| Model | DVX40 | DVX40E | DVX40T | DVX40ET | DVX40L |
| Item Number | 145072 | 145073 | 145074 | 145075 | 145071 |
| Max. drilling capacity | Φ40mm | ||||
| Threading in steel&last iron | M20&M24 | ||||
| Spindle travel | 180mm | ||||
| Spindle taper | M.T.#4 | ||||
| Spindle power feed | 2steps/0.1-0.2mm/rev | ||||
| Spindle speed | 50-1450rpm | ||||
| Width of T-slot | 18mm | ||||
| Max.distance from spindle axis to surface of column | 350mm | ||||
| Max.distance from spindle end to surface of table | 770mm | ||||
| Max.distance from spindle end to surface of base | 1210mm | ||||
| Diameter of column | 150mm | ||||
| Table size | 560mm×560mm | ||||
| Base size | 730mm×500mm | ||||
| Motor power | 0.85kw/1.5kw | 0.85kw/1.5kw | 0.85kw/1.5kw | ||
| N.W/G.W | 465kg/615kg | 510kg/650kg | 509/434kg | ||
| Packing size(L*W*H) | 2270mm×690mm×1100mm | ||||
