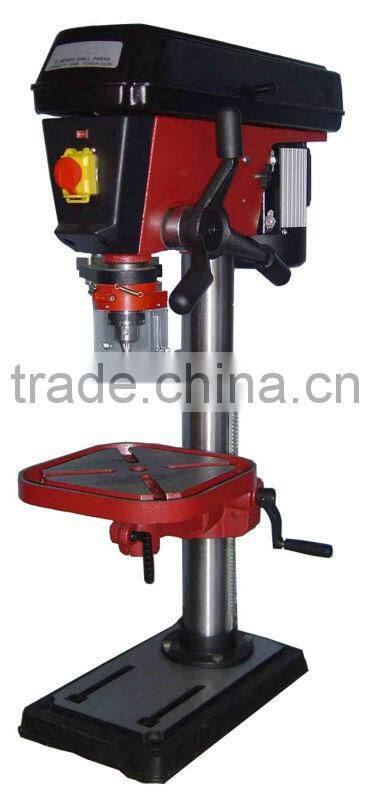

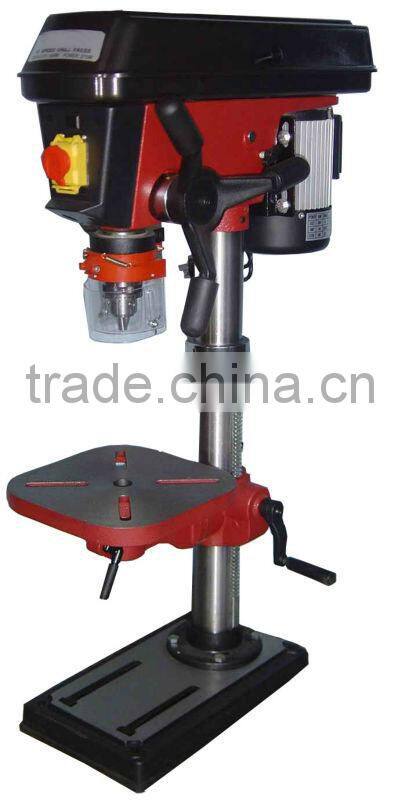

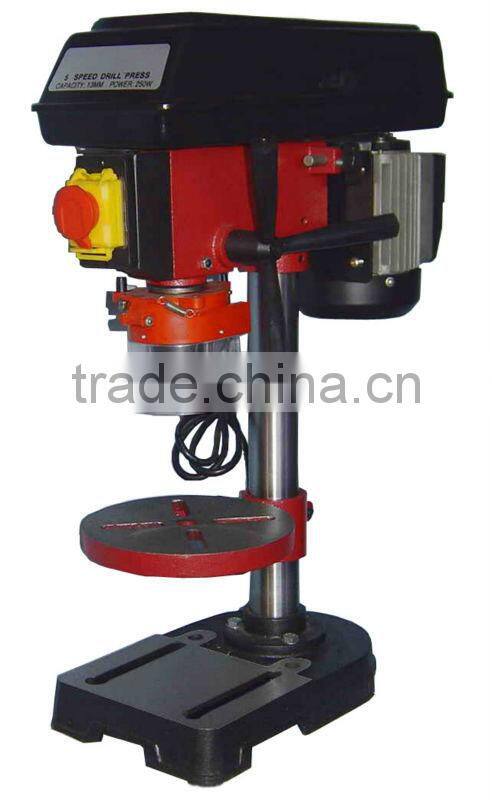

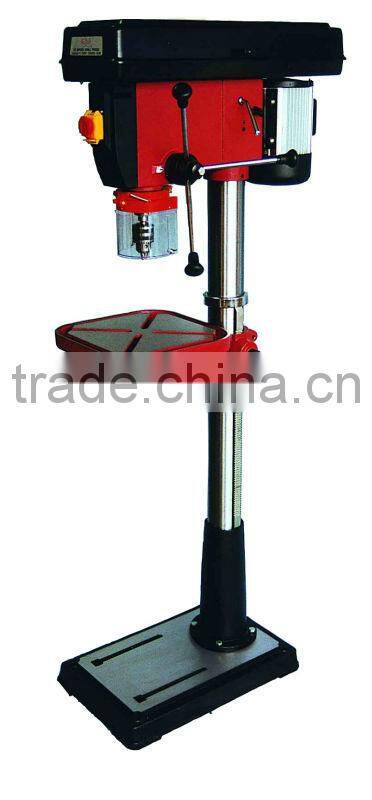

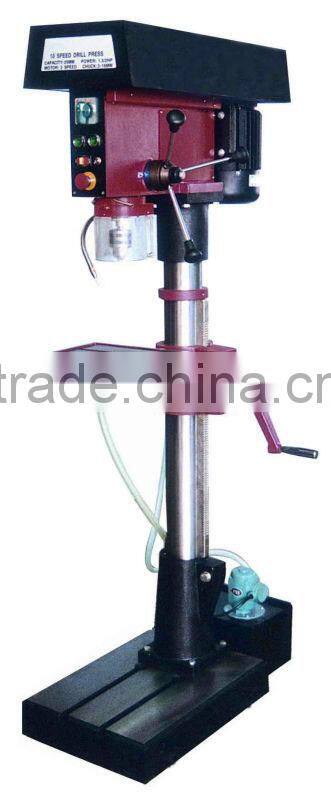

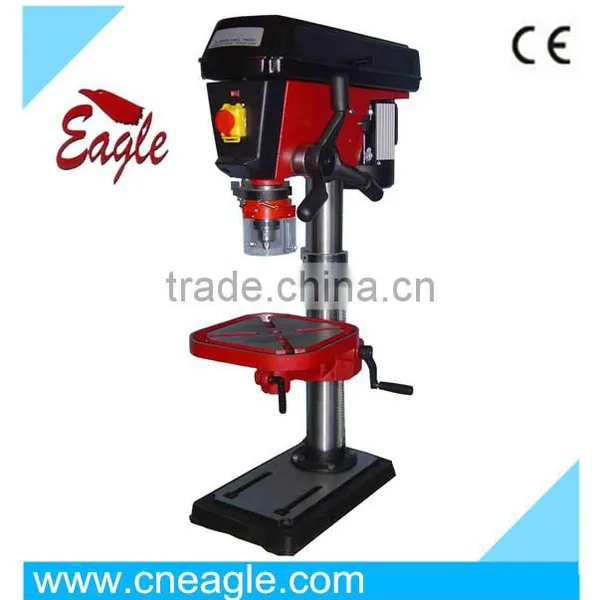

Industrial Drilling Machine DX-13

Name: Industrial Drilling Machine DX-13
Brand: EAGLE
SKU: 140924606
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

Used

Place of Origin:

Shandong, China

Brand Name:

EAGLE

Eagle Industries, Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition Used

Place of Origin Shandong, China

Brand Name EAGLE

Model Number DX

CNC or Not Normal

Power(W) 180~1100w

Industrial Drilling Machine

Specification

Model	DX 13	DX 16	DX 20	DX 25	DX 25A	DX 25B
Motor(W)	180/250	550	550/650	1100/1500	750/1100	1100
Swing (mm)	210	330	356	460	432	432
Chucksize (mm)	1.5-13	3-16	3-16	3-16	3-16	3-16
Max drilling capacity(mm)	13	16	20	25	25	25
Taper	JT33/B16	MT2	MT2	MT3 / MT4	MT3 / MT4	MT3
Spindle travel(mm)	50	80	80	120	120	80
No of speed	5	12-16	12-16	10	12	Variable
Horizontal arm travel(mm)	/	/	/	/	/	/
Speed range(rpm)/50Hz	600~2500	210~2580/210~3340	120~2580/120~3000	150-1920	150-2700	280-2600
Speed range(rpm)/60Hz	620~3100	250~3050/250~4000	140~3050/140~3600	180-2300	180-3240	330-3120
Overall height(mm)	735	1580	1630	1670	1700	1700
Packing size(mm)	680x400x190	(Head) 820x500x300	(Head) 840x570x290	900×610×670	1440×650×320	1440×650×320
Packing size(mm)		(Column)1430X170X170	(Column)1430X170X170	1100×230×210	1440×650×320	1440×650×320
N.G weight (kgs)	27/26	(Head) 53/59	(Head) 68/72	245/297	128/138	100/110
N.G weight (kgs)		(Column) 17/19	(Column) 20/22	245/297	128/138	100/110
Units/20"container	/	/	/	60	90	90
Item No.	411044	411046	411048	411050	411052	411054
*Model DX 25 :Two-speed powerful motor,Pump cooling system optional,Inclination table, Working lingt optional.
*Model DX 25B: Variable speed
