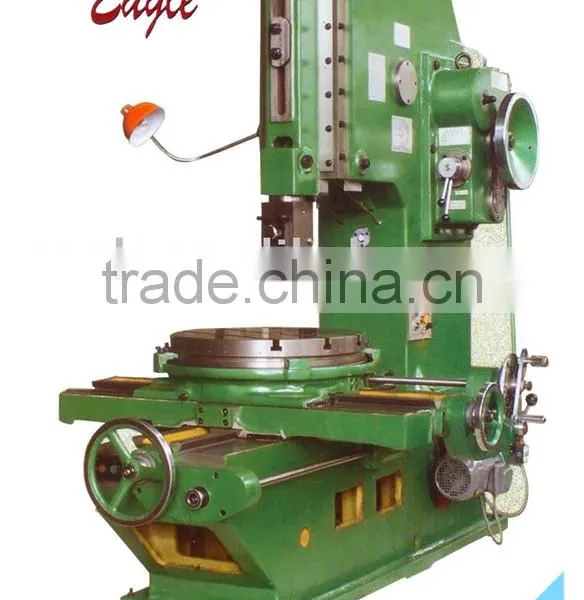

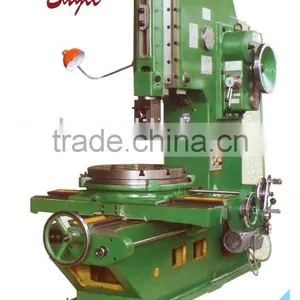

Slotting machine
| MODEL | Unit | S 200 | S 200A | S 320 | S 320A |
| Max. slotting length | mm | 200 | 320 | ||
| Max. dimensions of workpiece (L*H) | mm | 485*200 | 600*320 | ||
| Max weight of wookpiece | kg | 400 | 500 | ||
| Max. cutting force | N | 5500 | 7500 | ||
| No. of strokes per minute | r.p.m | 32,50,80,125, | 20.32.50.80. | ||
| Vertical adjustment of ram | mm | 230 | 315 | ||
| Inclination of ram | °degree | 0-8 | 0-8 | ||
| Distance between tool holding surface and column front | mm | 485 | 600 | ||
| Max. tool shank size (W*H) | mm | 25*40 | 25*40 | ||
| Table diameter | mm | 500 | 630 | ||
| Distance between table surface and low end of ram | mm | 320 | 490 | ||
| Max. longitudinal travel of table | mm | 500 | 400/450 (power feeds/hand feeds) | 620 | 480/620(power feeds/hand feeds) |
| Max. cross travel of table | mm | 500 | 450/500(power feeds/hand feeds) | 560 | 480/560 (power feeds/hand feeds) |
| Max. Rotary angle of table | °degree | ------ | ±360 | ------ | ±360 |
| Range of table longitudinal and cross power feeds | mm | 0.08-1.12 | 0.08-1.12 | ||
| Range of table power feeds | °degree | 0.052-0.783 | 0.052-0.7893 | ||
| Power of rapid drive motor | kw | 3 | 4 | ||
| Rotating speed of main drive motor | r.p.m | 1430 | 960 | ||
| Overall dimensions (L*W*H) | mm | 1945*1325*1980 | 1835*1305*1980 | 2290*1525*2285 | 2180*1505*2285 |
| Weight (approx) | kg | 2400 | 3500 | ||
| Item No. | 145001 | 145002 | 145003 | 145004 | |
