HYDRAULIC C-FRAME PRESSSemi-automatic hydraulic press for a large variety of applications,
like compression moulding, punchi

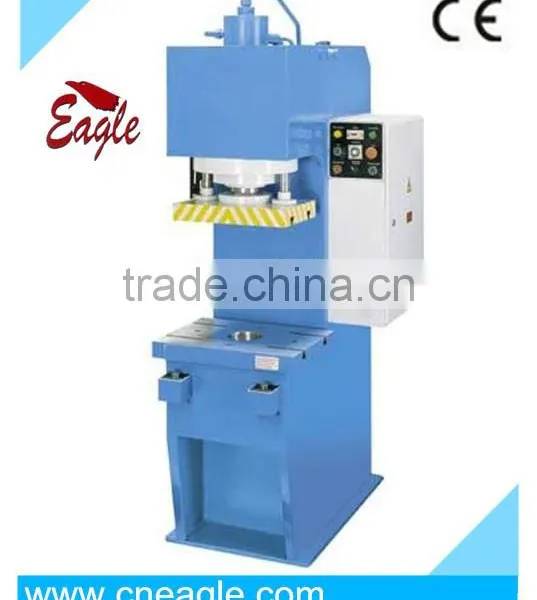

HYDRAULIC C-FRAME PRESS
Semi-automatic hydraulic press for a large variety of applications,
like compression moulding, punching, and bending
rigid, torsion-free steel weldment
two circular guides ensure precise, uniform ram-plate feed
powerful hydraulic system for high travel speeds
ram-plate and work table have T-slots for tool clamping
C-frame design makes this press ideally suitable for machining of large parts
jogging mode for easy press set-up
micro-switches for simple adjustment of travel distances for automatic operation
manual operation of quick sample processes
part counter
automatic mode can be adjusted time-dependent or distance-dependent
all machines without CE mark, only for export to countries outside the EU
Specifications |
HPE16 |
|
press force |
kN |
160 |
cylinder stroke |
mm |
250 |
table size |
mm |
500 x 380 |
forward motion speed |
mm/s |
208 |
work speed |
mm/s |
25 |
reverse motion speed |
mm/s |
145 |
table bore |
mm |
Ø 120 |
max. ram-to-table distance |
mm |
400 |
throat |
mm |
200 |
motor rating |
kW / V |
4 / 400 |
dimensions |
mm |
900 x 680 x 1900 |
weight |
kg |
1700 |
Item no. |
175005 |
