Home > Instruments & Meters > Weighing & Measuring Apparatus > Gauge > 0-25mm /0-30mm Metric Dial Indicators
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Eagle
Model Number:
0-30mm/0-25mm
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
0-10mm/0-5mm/0-3mm Metric Dial IndicatorsNegotiableMOQ: 10 Pieces -
200mm/250mm Sliding BevelNegotiableMOQ: 480 Pieces
-
35-50mm 50-100mm 50-160mm Metric Dial Bore GaugesNegotiableMOQ: 20 Pieces
-
Stainless Steel Mono-block Vernier CalipersNegotiableMOQ: 100 Pieces
-
Parallax-free Plane Vernier Calipers Mono-block VerniersNegotiableMOQ: 10 Pieces
Brand Name
Eagle
Model Number
0-30mm/0-25mm
Specifications
1.Steel or aluminum body2.Lifting screw with cushion rubber
3.With dial lock screw
4.With outside tolerence hand

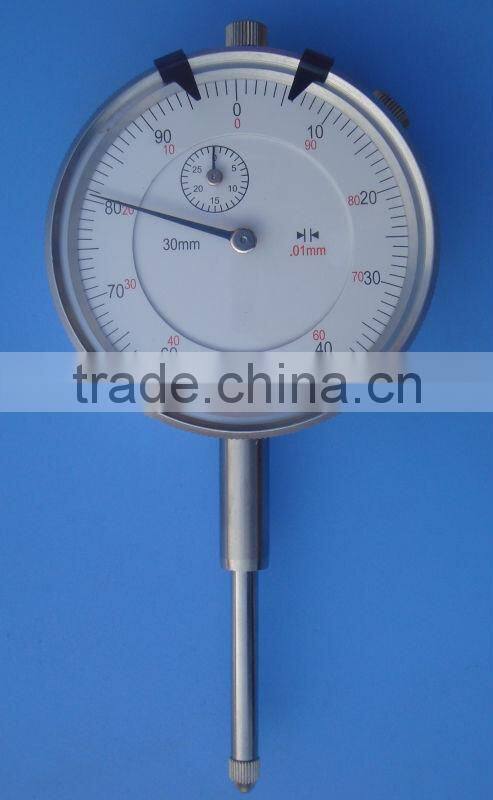

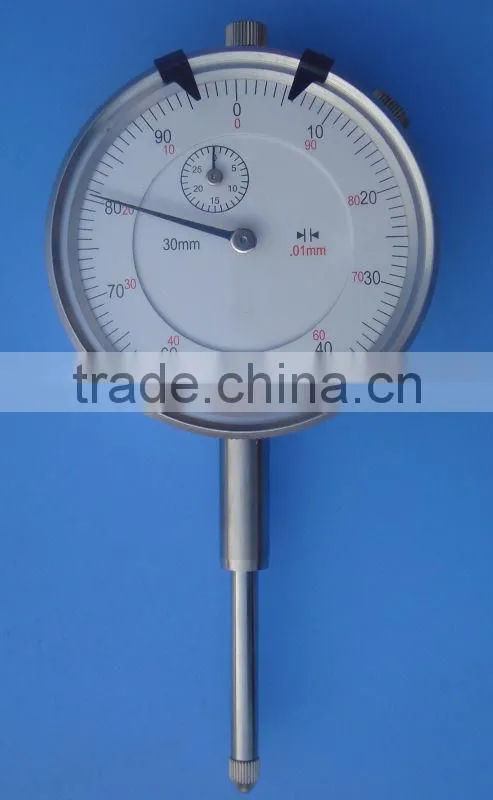

Metric Dial Indicators
Features
1.Steel or aluminum body
2.Lifting screw with cushion rubber
3.With dial lock screw
4.With outside tolerence hand
5. Plastic flat back is valid for standard.The metal lug back can be supplied upon request.

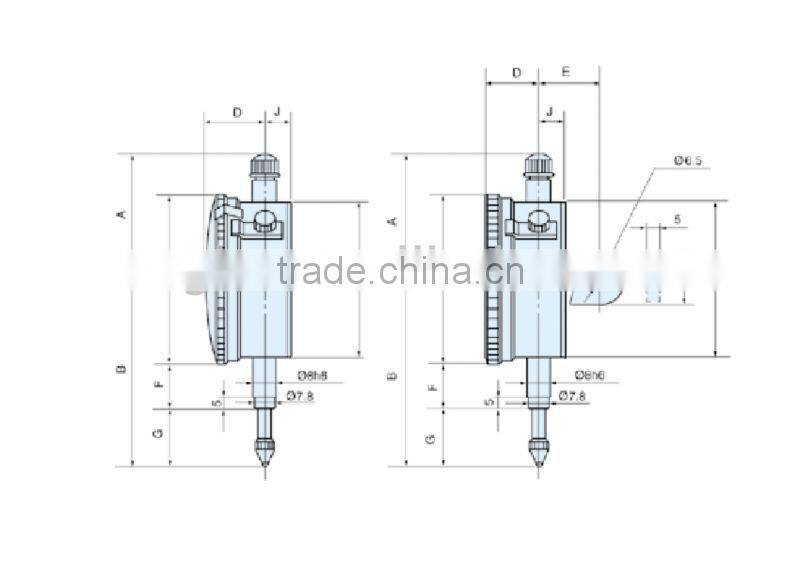

Diamentions(mm)
Specification
| Range | Grad. | Dimention(mm) | Lug back | Item No. | ||||||||
| mm | mm | A | B | C | D | E | F | G | H | J | ||
| 0-25 | 0.01 | 37.5 | 80.5 | Φ58 | 16.3 | 19.4 | 17.5 | 34 | Φ53.5 | 8.4 | without | 732150 |
| 0-30 | 0.01 | 37.5 | 88 | Φ58 | 16.3 | 20 | 21.5 | 37.5 | Φ53.5 | 9 | without | 732151 |
| 0-25 | 0.01 | 37.5 | 80.5 | Φ58 | 16.3 | 19.4 | 17.5 | 34 | Φ53.5 | 8.4 | with | 732152 |
| 0-30 | 0.01 | 37.5 | 88 | Φ58 | 16.3 | 20 | 21.5 | 37.5 | Φ53.5 | 9 | with | 732153 |
